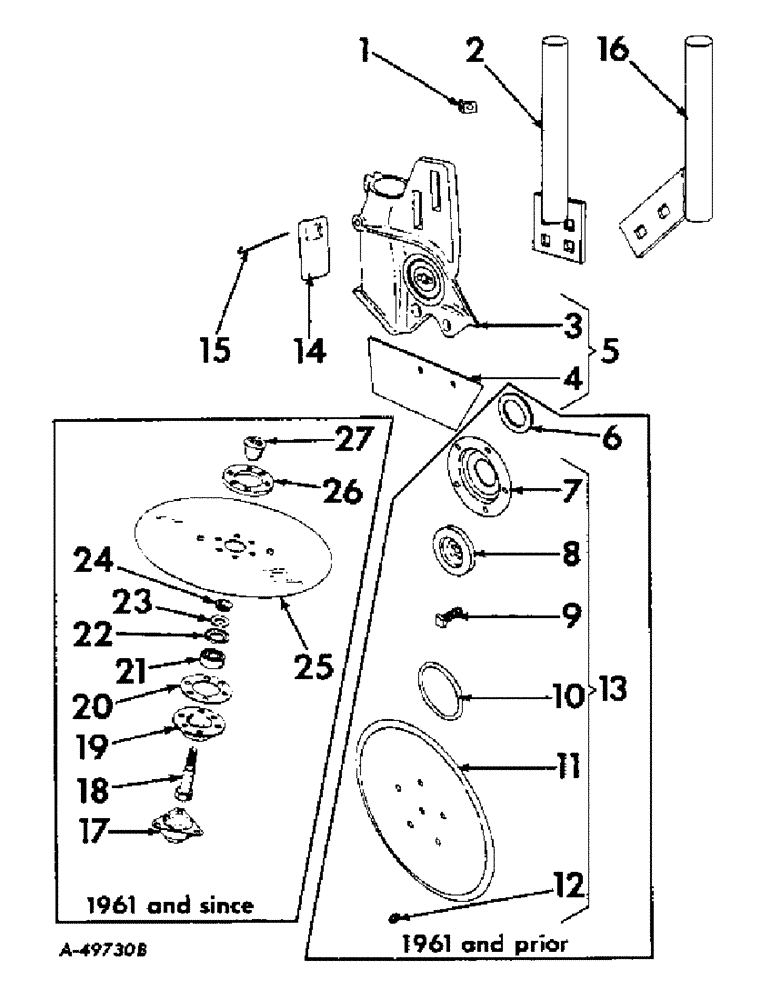

Запчасти Case IH 617 (V-17) - DISK APPLICATOR
№
Артикул
Название
Примечание
Количество
1
525470R1
CLIP, tube hold-down
1шт.
445141
NUT
1/4 in. spring
1шт.
SCREW, 1/4 x 5/16 in. slt-hd mach
1шт.
2
525312R91
STANDARD
1шт.
BOLT, 1/2 x 1-1/2 in. crg
2шт.
WASHER, 1/2 in. lock
2шт.
3
625777R1
DISC
BOOT, left
2шт.
3
625778R1
DISC
BOOT, right
2шт.
18708R1
BOLT,Short NK, 1/2"-13 x 1 3/4", G2
1/2 x 1-3/4 C-Z sq-nk crg
4шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
4шт.
120384
WASHER,1/2"
LOCK, 1/2"
4шт.
4
625780R1
BLADE
left runner
2шт.
4
625781R1
BLADE
right runner
2шт.
13969R1
RIVET, 5/16 x 7/8 in. 74 deg. csk-hd
4шт.
5
625799R91
BOOT
W/RUNNER, left
2шт.
5
625800R91
CLUTCH ASSEMBLY
BOOT W/RUNNER, right
2шт.
6
M10
FELT
WASHER, felt
1шт.
7
W4227
HOUSING
HUB, disk
1шт.
RIVET, 1/4 x 3/8 in. rd-hd
5шт.
8
N748
BLOCK, bearing
1шт.
9
625794R1
BOLT W/NUT, 7/16 x 1-3/8 in. sq-hd mach
1шт.
WASHER, 7/16 in. lock
1шт.
10
M2
WASHER
GASKET, disk
1шт.
11
625788R1
DISC
DISK, 11 in. dia.
1шт.
12
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, 1/8"-27 x .66 lg
1шт.
13
625796R91
DISC
DISK ASSEMBLY
1шт.
14
625789R1
COVER
PLATE, cover
4шт.
15
625792R1
WIRE, cover fastening
4шт.
16
524536R11
STANDARD, disk
1шт.
BOLT W/NUT, 1/2 x 1-1/2 in. crg
2шт.
WASHER, 1/2 in. lock
2шт.
17
464483R1
CYLINDER END CAP
CAP, bearing housing dirt
4шт.
18
464467R1
BOLT,7/16" - 14 x 2 5/8"
opener disk
4шт.
NUT, 7/16 in.
4шт.
WASHER, 7/16 in. lock
4шт.
19
602989R1
FLANGE,1.41" ID x 3.25" OD x 0.63"
HOUSING, disk bearing
4шт.
SCREW, 1/4 x 7/16 in. cp-pltd cap
24шт.
WASHER, 1/4 in. cd-pltd lock
24шт.
20
602992R1
GASKET
housing
4шт.
21
465004R91
BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"
ball
4шт.
22
602994R1
FLANGE
bearing
4шт.
23
464628R1
SEAL
housing rubber
4шт.
24
602988R1
SPACER
bearing housing
4шт.
25
463955R1
DISC
DISK, opener, 11 in. dia.
4шт.
26
464480R1
WASHER
WASHER, reinforcement
4шт.
27
464468R1
BUSHING
SPACER, opener disk
4шт.
Выбрано товаров: 46
