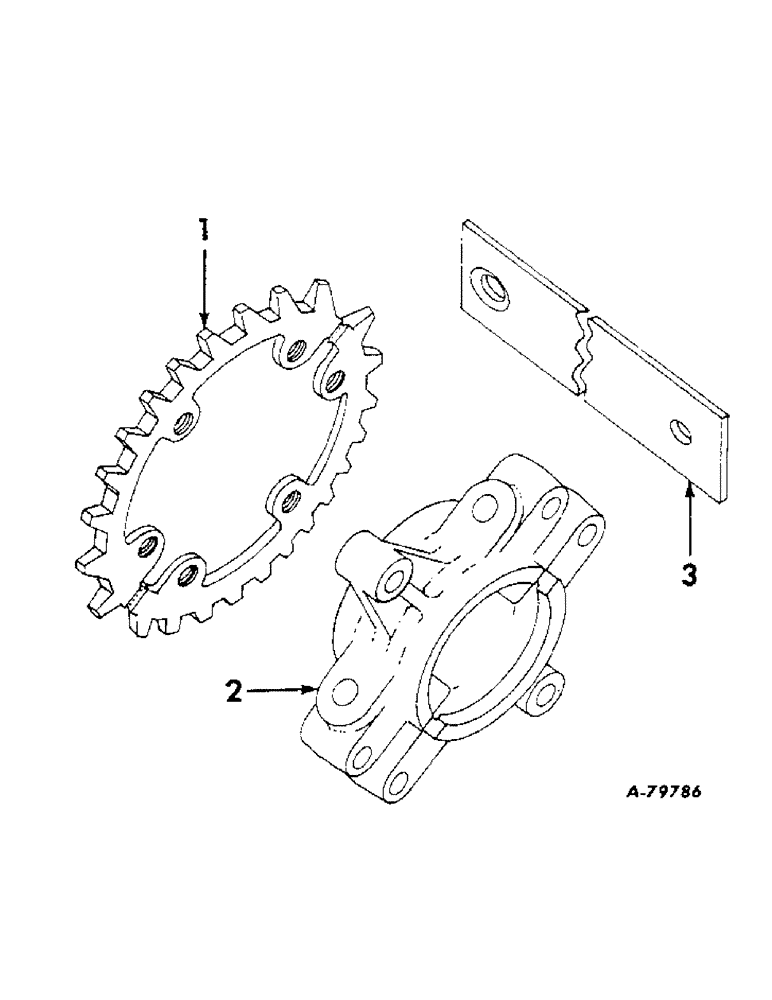

Запчасти Case IH 617 (V-15[A]) - COMPLETING PACKAGE DRIVE SPROCKET AND RELOCATOR BAR

1

518106R1

SPROCKET, drive, 21T for no. 32 chain

2шт.

NUT, 3/8 in.

12шт.

BOLT, 3/8 x 2 in. hex-hd

12шт.

WASHER, 3/8 in. lock

12шт.

2

473491R91

HUB ASSEMBLY

2шт.

BOLT, 1/2 x 3-1/2 in. hex-hd

4шт.

NUT, 1/2 in.

4шт.

WASHER, 1/2 in. lock

4шт.

3

477272R1

BAR, light relocator

2шт.

BOLT, 1/2 x 1-3/4 in. hex-hd

2шт.

NUT, 1/2 in.

2шт.

WASHER, 17/32 x 1-1/16 in. x .095 ga

2шт.
