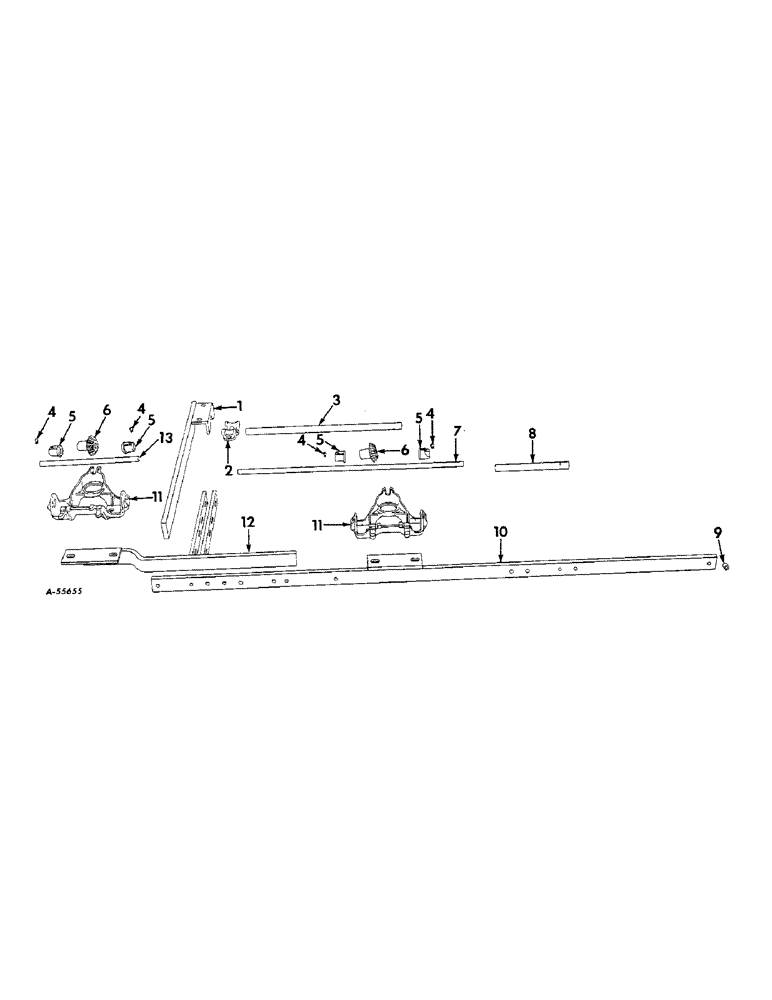

Запчасти Case IH 617 (V-12) - FRAME EXTENSIONS, 6 ROWS

1

526939R91

BRACE, frame extension left

1шт.

1

526940R91

BRACE, frame extension right

1шт.

NUT, 3/4 in.

4шт.

SCREW, 3/4 x 5 in. cap

4шт.

WASHER, 3/4 in. lock

4шт.

2

518859R1

CLAMP

CAP, frame extension

1шт.

3

526929R1

COUPLING, fertilizer shaft outer

1шт.

PIN, 1/4 x 1-3/8 in. headed

2шт.

PIN, 1/8 x 3/4 in. self-opening cotter

2шт.

4

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8 in. 65 degree straight lubrication

1шт.

5

PO2507

BEARING

feed shaft

1шт.

6

513998R1

PINION

13 tooth drive

1шт.

PIN, 1/4 x 1-9/16 in. headed

1шт.

PIN, 1/8 x 3/4 in. self-opening cotter

1шт.

7

526937R1

SHAFT, fertilizer center

1шт.

PIN, 1/4 x 1-1/4 in. self-opening cotter

2шт.

WASHER, 25/32 x 1-1/4 in. x 16 ga

2шт.

8

524949R1

COUPLING, fertilizer shaft

1шт.

PIN, 1/4 x 1-3/8 in. headed

2шт.

PIN, 1/8 x 3/4 in. self-opening cotter

2шт.

9

363082R1

SPACER,3/8" Pipe x .656"

between chain tightener bracket and hopper frame pipe

1шт.

10

526945R91

EXTENSION, frame left

1шт.

10

526946R91

EXTENSION, frame right assembly

1шт.

BOLT, 1/2 x 2 in. mach

2шт.

BOLT, 3/8 x 3-1/4 in. mach

1шт.

BOLT, 3/8 x 3-1/2 in. mach

1шт.

NUT, 3/8 in.

2шт.

NUT, 1/2 in.

2шт.

WASHER, 3/8 in. lock

2шт.

WASHER, 1/2 in. lock

2шт.

11

513999R3

BRACKET

hopper

1шт.

BOLT, 1/2 x 1-1/4 in. crg

2шт.

NUT, 1/2 in.

2шт.

WASHER, 1/2 in. lock

2шт.

WASHER, 17/32 x 1-1/4 in. x 16 ga

2шт.

12

526947R91

EXTENSION, frame left

1шт.

12

526948R91

EXTENSION, frame right

1шт.

BOLT, 1/2 x 2-3/4 in. mach

2шт.

NUT, 1/2 in.

2шт.

WASHER, 1/2 in. lock

2шт.

WASHER, 17/32 x 1 in. x 11 ga

2шт.

13

524928R1

SHAFT, fertilizer outer

1шт.

PIN, 1/4 x 1-1/4 in. self-opening cotter

2шт.

WASHER, 25/32 x 1-1/4 in. x 16 ga

2шт.
