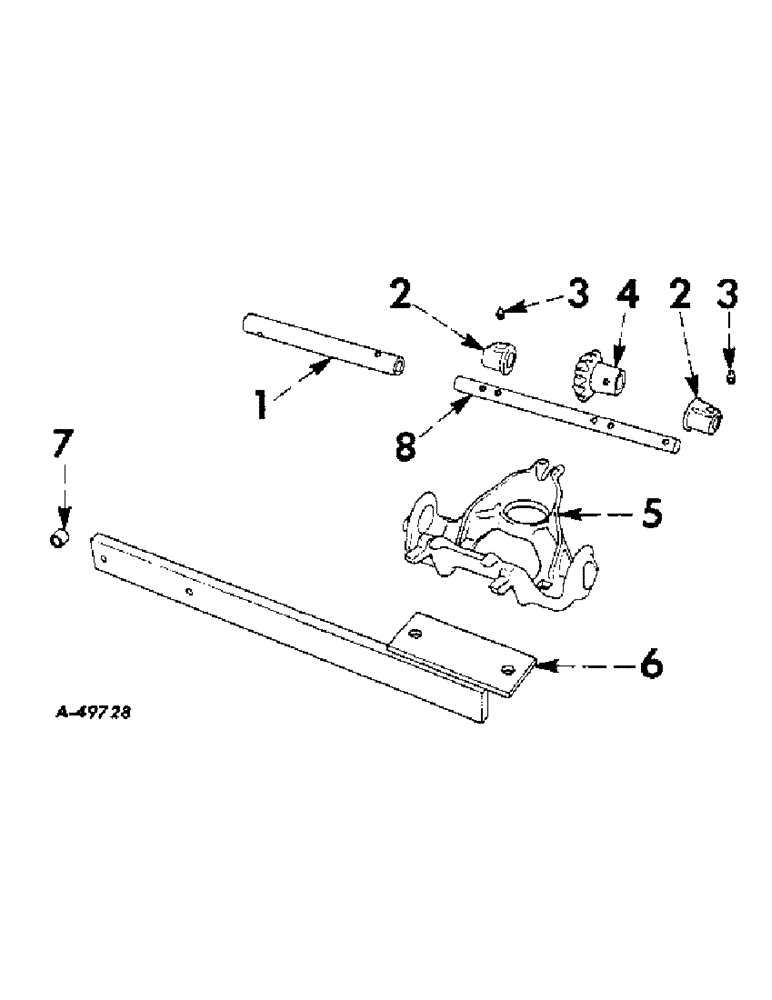

Запчасти Case IH 617 (V-11) - HOPPER BRACKET AND FRAME EXTENSION

1

524949R1

COUPLING, feed shaft

1шт.

PIN, 1/8 x 3/4 in. self-opening cotter

2шт.

517194R1

PIN, 1/4 x 1-3/8 in. dld-std-hd

2шт.

2

PO2507

BEARING

feed shaft

1шт.

3

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8 in. 65 degree elbow lubrication

1шт.

4

513998R1

PINION

drive, 13T

1шт.

PIN, 1/8 x 3/4 in. self-opening cotter

1шт.

Q3514

HEADED PIN,1/4" x 1 9/16"

PIN, 1/4 x 1-9/16 in. dld-std-hd

1шт.

5

513999R3

BRACKET

hopper

1шт.

BOLT, 1/2 x 1-1/4 in. crg

2шт.

WASHER, 1/2 in. lock

2шт.

WASHER, 17/32 x 1-1/4 in. x 16 ga

2шт.

6

524941R92

EXTENSION, left frame

1шт.

6

524942R92

EXTENSION, right frame

1шт.

BOLT, 3/8 x 3-1/4 in. mach

2шт.

BOLT, 3/8 x 4 in. mach

4шт.

WASHER, 3/8 in. lock

6шт.

7

363082R1

SPACER,3/8" Pipe x .656"

between chain tightener bracket and hopper frame pipe

1шт.

8

524928R1

SHAFT, outer feed

1шт.
