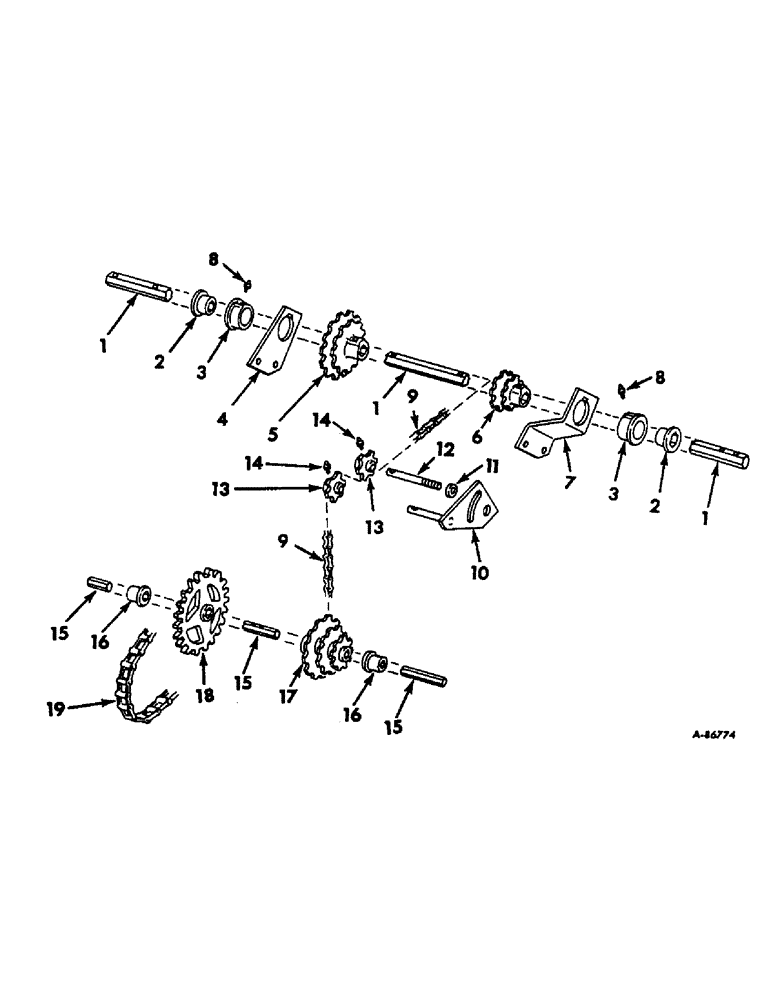

Запчасти Case IH 601 (T-05) - FERTILIZER DRIVE UNIT

1

482546R1

ROD, fertilizer

1шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

2шт.

5201751R

PIN, 3/16 quick attachable cot.

2шт.

2

472432R1

BUSHING

drive shaft

2шт.

3

472431R1

COLLAR

BEARING, drive shaft

2шт.

4

482549R1

SUPPORT, left side

1шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 C-Z hex-hd mach

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

5

482548R1

SPROCKET, fertilizer, 18T

1шт.

102893

SCREW, 3/8 x 5/8 sq-hd cup-pt set

1шт.

6

482547R1

SPROCKET, fertilizer, 9T

1шт.

102893

SCREW, 3/8 x 5/8 sq-hd cup-pt set

1шт.

7

482550R1

SUPPORT, right side

1шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 C-Z hex-hd mach

1шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 C-Z sq-nk crg

1шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga C-Z

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

8

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 NF 2 str lub, in drive shaft bearing

2шт.

9

CHAIN, fertilizer drive, use 46 links, from 10 ft double pitch agriculture roller chain marked, 569088R91, including 1 connecting link, 457113R91

1шт.

10

482551R91

BRACKET ASSY

1шт.

13068R1

PIN,3/16" x 1"

Split (Cotter), , self-opening 3/16" x 1"

1шт.

11

622567R1

WASHER

BUSHING

1шт.

12

472342R1

STUD

idler

1шт.

13068R1

PIN,3/16" x 1"

Split (Cotter), , self-opening 3/16" x 1"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga C-Z

1шт.

13

472344R1

SPROCKET

idler

2шт.

14

66584D

FITTING

3/16 drive type lub

2шт.

15

482568R1

ROD, counter

1шт.

178375R1

WASHER

25/32 x 1-1/4 x 16 ga C-Z

3шт.

13094R1

Pin, Split (Cotter), 3/16" x 1 1/4", self-opening 3/16" x 1 1/4"

2шт.

16

482567R1

BUSHING, fertilizer

2шт.

17

482561R1

SPROCKET, countershaft, 8T, 12T, 17T

1шт.

18

482562R1

SPROCKET, chain, 20T

1шт.

19

N22712

CHAIN ASSY, 42 links no. 32

1шт.
