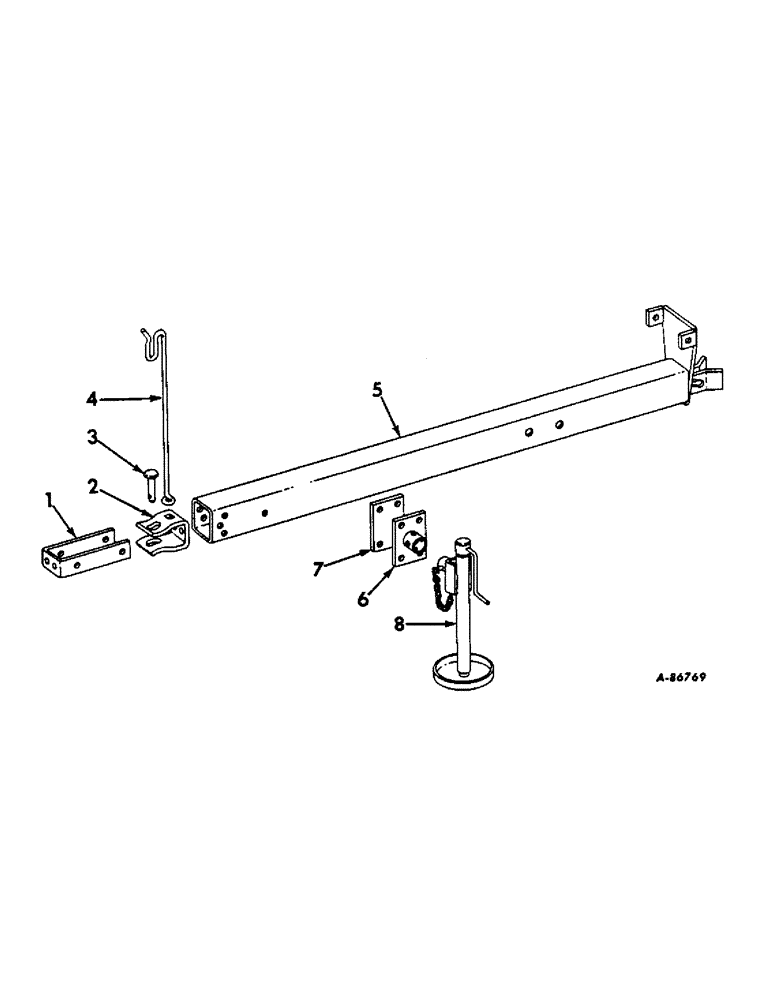

Запчасти Case IH 601 (T-04) - HITCH AND STAND

1

482530R1

BRACKET, clevis

1шт.

433156

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

SCREW, 1/2 x 4-1/2 C-Z hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

2

484505R1

YOKE

CLEVIS, hitch

1шт.

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

SCREW, 5/8-11 x 1-3/4 C-Z hex-hd cap

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

2шт.

3

480791R1

PIN

hitch

1шт.

520175R1

CLIP

PIN, quick attachable cot.

1шт.

4

651793R1

SUPPORT

hyd hose

1шт.

12686R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd

1шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

5

482525R91

TONGUE ASSY, hitch

1шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 1-1/2 C-Z hex-hd cap

2шт.

271733

BODY,Hex, 5/8" - 11 x 4 1/2", Gr 5

SCREW, 5/8-11 x 4-1/2 C-Z hex-hd cap

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

2шт.

6

482599R91

BLOCK ASSY, support stand

1шт.

19264R1

BOLT,Hex, 1/2" - 13 x 4 1/4", Gr 2

1/2 x 4-1/4 C-Z hex-hd mach

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

7

482600R1

BLOCK, support stand

1шт.

8

478557R91

JACK

W/LOCK PIN AND CHAIN

1шт.
