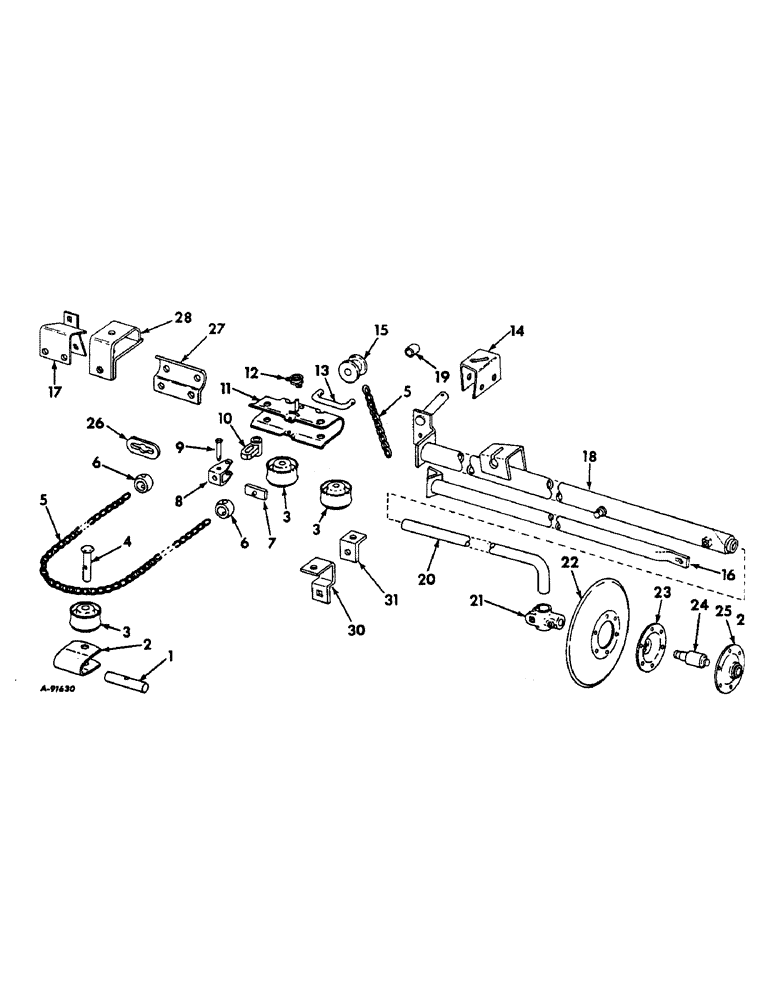

Запчасти Case IH 601 (T-17) - MARKER ATTACHMENT, DISK TYPE, 1968 AND SINCE
№
Артикул
Название
Примечание
Количество
1
472375R1
PIN
pivot
1шт.
21649R1
LOCK PIN,1/4" x 1 1/2", Slotted
Pin, 1/4" x 1 1/2", Slotted
1шт.
2
472374R1
BRACKET
pulley
1шт.
3
625071R1
PULLEY
SHEAVE, chain roller
5шт.
4
474110R1
PIN
sheave
1шт.
21633R1
PIN, 3/16 x 1-1/4 C-Z cot.
1шт.
5
489770R91
CHAIN, marker
2шт.
6
481925R1
BALL
BUTTON, marker chain
2шт.
21648R1
LOCK PIN,1/4" x 1 1/4", Slotted
Pin, 1/4" x 1 1/4", Slotted
2шт.
7
486997R1
ARM
switcher
1шт.
8
486980R1
YOKE
CLEVIS, switcher arm
1шт.
21628R1
PIN
1/8 x 3/4 C-Z cot.
1шт.
9
486981R1
PIN
marker clevis
1шт.
21628R1
PIN
1/8 x 3/4 C-Z cot.
1шт.
10
481926R1
HOLDER
marker chain
1шт.
21891R1
HEADED PIN,5/16" x 2"
PIN, 5/16 x 2 C-Z std-hd
1шт.
21628R1
PIN
1/8 x 3/4 C-Z cot.
1шт.
11
487616R1
CASE
ASSY, idler pulley
1шт.
21805R1
PIN
5/8 x 2-1/8 C-Z std-hd
4шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
1шт.
31
SOCKET
PIN, 1/2 x 2-7/8 std-hd
2шт.
12
481929R1
SPRING
snubber
1шт.
13
484447R1
ROD
idler pulley pivot
1шт.
21471R1
WASHER
21/32 x 1 x 11 ga C-Z
2шт.
21636R1
PIN, 1/4 x 1-1/2 C-Z cot.
2шт.
589068R1
WASHER
21/32 x 1-1/4 x 11 ga C-Z
2шт.
21633R1
PIN, 3/16 x 1-1/4 C-Z cot.
4шт.
21961R1
PIN, 1/4 x 2-1/2 C-Z std-hd
1шт.
97865H
WASHER
9/32 x 7/8 x 16 ga C-Z
1шт.
14
489793R1
BRACKET, LH
1шт.
14
489794R1
BRACKET, RH
1шт.
18695R1
CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2
BOLT, 7/16-14 x 1-1/4 C-Z sq-nk crg
2шт.
120383
LOCK WASHER,Helical Spring, 7/16"
WASHER, LOCK, 7/16"
2шт.
271501
SOCKET
NUT, 7/16-14 C-Z hex.
2шт.
15
625036R1
PULLEY
ROLLER, lift chain
3шт.
LC175
PIN
1/2 x 2-1/2 std-hd
1шт.
21633R1
PIN, 3/16 x 1-1/4 C-Z cot.
3шт.
180175
BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5
SCREW, 1/2-13 x 1-1/4 C-Z hex-hd cap
1шт.
120384
WASHER,1/2"
LOCK, 1/2"
1шт.
16
490356R1
TUBE ASSY, marker brace
2шт.
17
490359R1
BRACKET ASSY, fertilizer
8шт.
19285R1
BOLT
1/2-13 x 1-1/4 CDP sq-nk crg
32шт.
120384
WASHER,1/2"
LOCK, 1/2"
32шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
32шт.
18
490351R1
TUBE ASSY, marker LH
1шт.
18
490352R1
TUBE ASSY, marker RH
1шт.
21636R1
PIN, 1/4 x 1-1/2 C-Z cot.
4шт.
Q1394
PIN, 3/4 x 2-3/8 std-hd
4шт.
20080R1
SET SCREW
1/2-13 x 1-1/4 C-Z sq-hd cup-pt set
2шт.
520175R1
CLIP
PIN, quick attachable cot.
2шт.
19
478176R1
BUSHING
brace rod
2шт.
21782R1
WASHER
21/32 x 1-1/2 x 16 ga C-Z
4шт.
21633R1
PIN, 3/16 x 1-1/4 C-Z cot.
4шт.
490635R1
SPACER
2шт.
20
478033R1
ROD
marker disc clamp
2шт.
21
478032R1
CLAMP
axle
2шт.
20180R1
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 2
BOLT, 1/2-13 x 2 C-Z sq-nk crg
2шт.
120384
WASHER,1/2"
LOCK, 1/2"
2шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
2шт.
128228
SET SCREW,Sq Hd, 3/8"-16 x 3/4"
SCREW, 3/8-16 x 3/4 C-Z sq-hd cup-pt set
2шт.
22
469372R1
DISC,13"
DISK, 13 in. marker
2шт.
180077
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
SCREW, 5/16-18 x 3/4 C-Z hex-hd cap
12шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
12шт.
120376
NUT,5/16"-18, G5
12шт.
23
478035R1
BEARING HOUSING,109 mm OD x 19.3 mm
disk brg inner
2шт.
24
ST438
BEARING
ball
2шт.
25
478036R1
BEARING HOUSING,30.023 mm ID x 69 mm OD x 19.3 mm
disk brg outer
2шт.
26
487619R1
BAR, chain clip
1шт.
478172R1
PIN, 3/4 x 7/8 std-hd
1шт.
520175R1
CLIP
PIN, quick attachable cot.
1шт.
27
487620R1
SUPPORT, marker chain
1шт.
28
490348R1
CASE ASSY, pulley
2шт.
180175
BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5
SCREW, 1/2-13 x 1-1/4 C-Z hex-hd cap
2шт.
120384
WASHER,1/2"
LOCK, 1/2"
2шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
2шт.
NLS
NO LONGER SERVICED
SCREW, 5/8-11 x 1-1/4 C-Z hex-hd cap
2шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
2шт.
29
480679R1
WASHER
dirt seal felt
2шт.
30
487624R1
SUPPORT, pulley
1шт.
31
487625R1
ANGLE, pulley support case clip
1шт.
Выбрано товаров: 81
