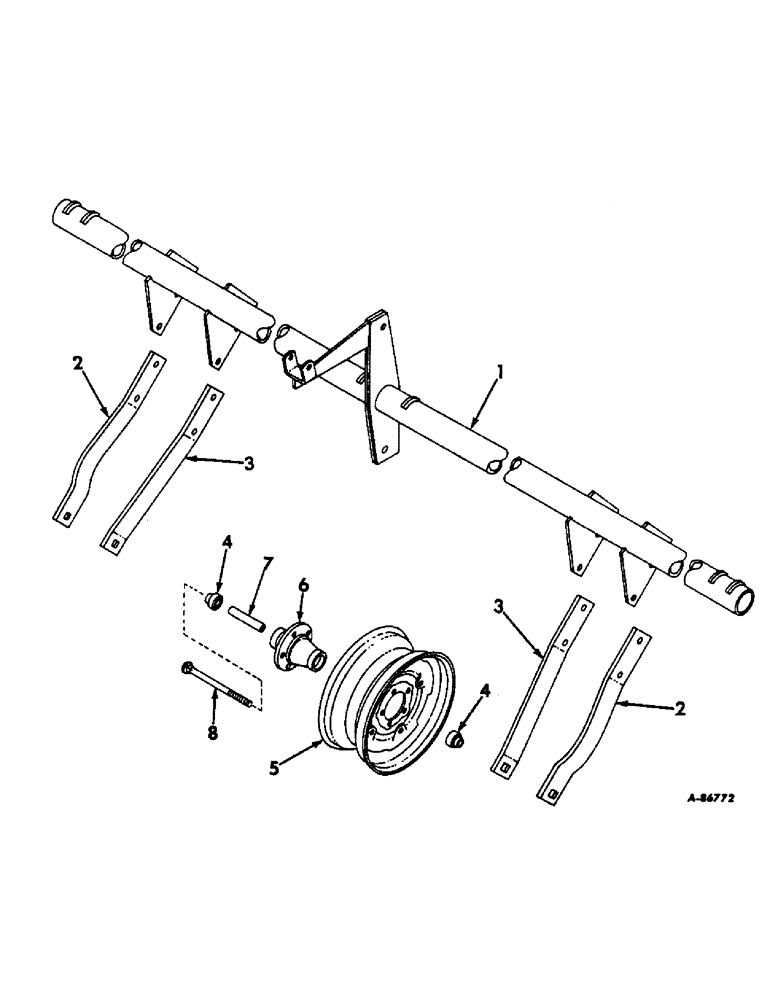

Запчасти Case IH 601 (T-08) - ADJUSTABLE WHEEL FRAME

1

482532R91

FRAME ASSY, adjustable wheel

1шт.

2

482538R1

RAIL, carrier

2шт.

18838R1

BOLT, 3/4 x 2 C-Z hex-hd mach Hex, 3/4"-10 x 2", G2

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

280954

NUT,3/4"-10, G5

4шт.

3

482537R1

RAIL, carrier

2шт.

18838R1

BOLT, 3/4 x 2 C-Z hex-hd mach Hex, 3/4"-10 x 2", G2

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

280954

NUT,3/4"-10, G5

4шт.

4

ST505

BALL BEARING,0.753" ID x 2.0472" OD x 0.7"

BEARING ASSY, wheel ball

4шт.

5

465464R1

WHEEL ASSY, carrier 14 inch

1шт.

5

456599R91

WHEEL ASSY, carrier 15 inch

1шт.

6

471797R1

HUB, wheel

2шт.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

wheel hub

10шт.

7

471798R1

SPACER, wheel bearing

2шт.

8

15395R1

BOLT, 3/4 x 9 sq-nk crg

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

280954

NUT,3/4"-10, G5

2шт.
