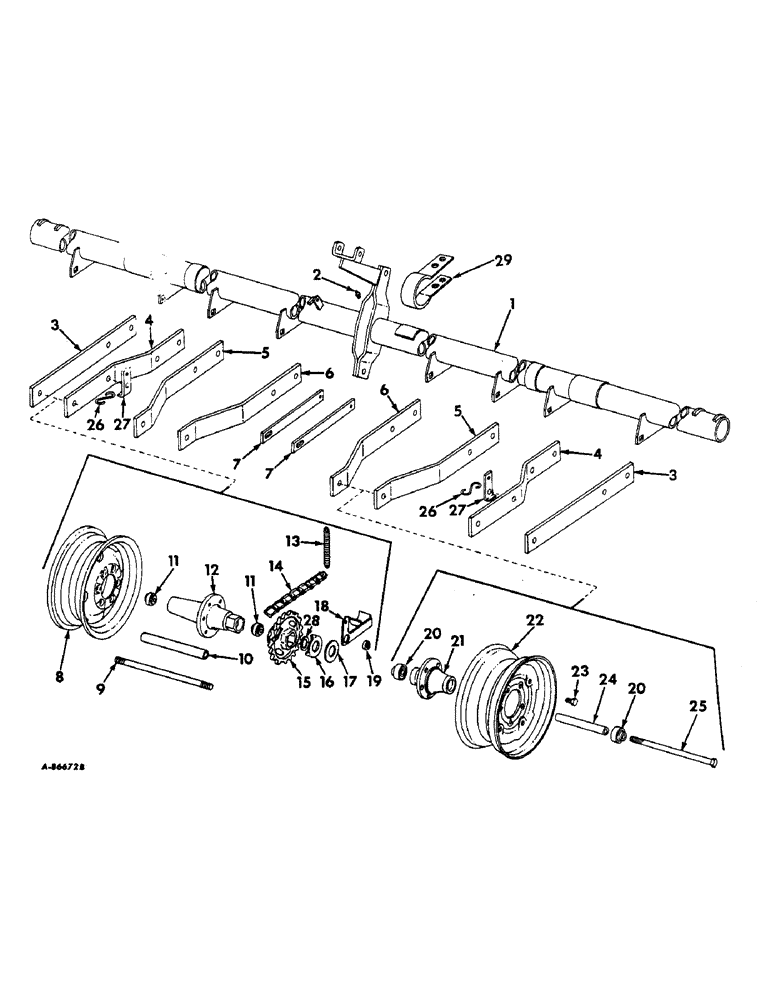

Запчасти Case IH 600 (S-06) - ADJUSTABLE WHEEL FRAME

1

484027R92

FRAME ASSY, adjustable wheel, 28 to 40 in. row spacing

1шт.

13121R1

Pin, Split (Cotter), 1/4" x 1 1/2", self opening 1/4" x 1 1/2"

2шт.

2

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 NF str lub, cylinder bracket arm

1шт.

3

484038R2

BAR, str wheel arm

2шт.

4

484037R1

ARM, offset

2шт.

5

484039R1

ARM, wheel LH

2шт.

15058R1

BOLT, 5/8-11 x 1-3/4 sq-nk crg

8шт.

102639

NUT,5/8"-11, G5

8шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

6

484040R1

ARM, wheel RH

2шт.

15058R1

BOLT, 5/8-11 x 1-3/4 sq-nk crg

8шт.

102639

NUT,5/8"-11, G5

8шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

7

472299R1

LINK

transport

2шт.

K156

HEADED PIN,5/8" x 2 1/8"

PIN, 5/8 x 2 std-hd

2шт.

520175R1

CLIP

PIN, quick attachable cot.

2шт.

575810R1

WASHER

21/32 x 1-1/2 x 11 ga

2шт.

8

463034R1

RIM

WHEEL ASSY, drive, 14 x 5J rim, for 6.70 x 15 tires

2шт.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

wheel

12шт.

9

484036R1

MOUNTING ROD

ROD, axle

2шт.

102639

NUT,5/8"-11, G5

4шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

20994R1

WASHER

25/32 x 1-1/8 x 16 ga

2шт.

10

484031R1

PIPE

wheel axle

2шт.

11

465003R91

BALL BEARING,0.7505" ID x 1.7805" OD x 0.61"

ASSY, wheel axle ball

4шт.

12

484029R1

HUB

wheel

2шт.

13

2072A

VALVE SPRING

SPRING, chain tightener

2шт.

13094R1

Pin, Split (Cotter), 3/16" x 1 1/4", self-opening 3/16" x 1 1/4"

2шт.

14

CHAIN, roller, use 57 links of 1-1/4 agricultural ext pitch transmission roller chain from 10 ft. roll marked, 569089A91, one offset link, 456929R91, and one coupler link, 456980R91

1шт.

15

484030R1

SPROCKET ASSY.

SPROCKET, wheel drive, 16T

2шт.

16

484035R1

WASHER

sprocket wear

2шт.

17

484034R1

WASHER

retaining

2шт.

18

472293R91

LEVER

ARM ASSY, drive chain tightener LH

1шт.

18

472294R91

LEVER

ARM ASSY, drive chain tightener RH

1шт.

19

484033R1

RING

chain tightener

2шт.

20

ST505

BALL BEARING,0.753" ID x 2.0472" OD x 0.7"

BEARING ASSY, wheel ball

4шт.

21

471797R1

HUB, drive wheel

2шт.

22

465464R1

WHEEL ASSY, 14 inch

2шт.

23

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

wheel hub

10шт.

24

471798R1

SPACER, wheel bearing

2шт.

25

18002R1

BOLT (SPREADER)

BOLT, 3/4 x 9 hex-hd mach

2шт.

425-1012

NUT,3/4"-10, G5

3/4-10 hex.

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

26

474374R1

HOOK

S-HOOK

2шт.

17473R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 2

1/2-13 x 1-1/2 hex-hd mach

2шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

27

473562R1

ANCHOR, spring

2шт.

28

484032R1

WASHER

2шт.

29

472275R1

BEARING

cyl bracket

1шт.
