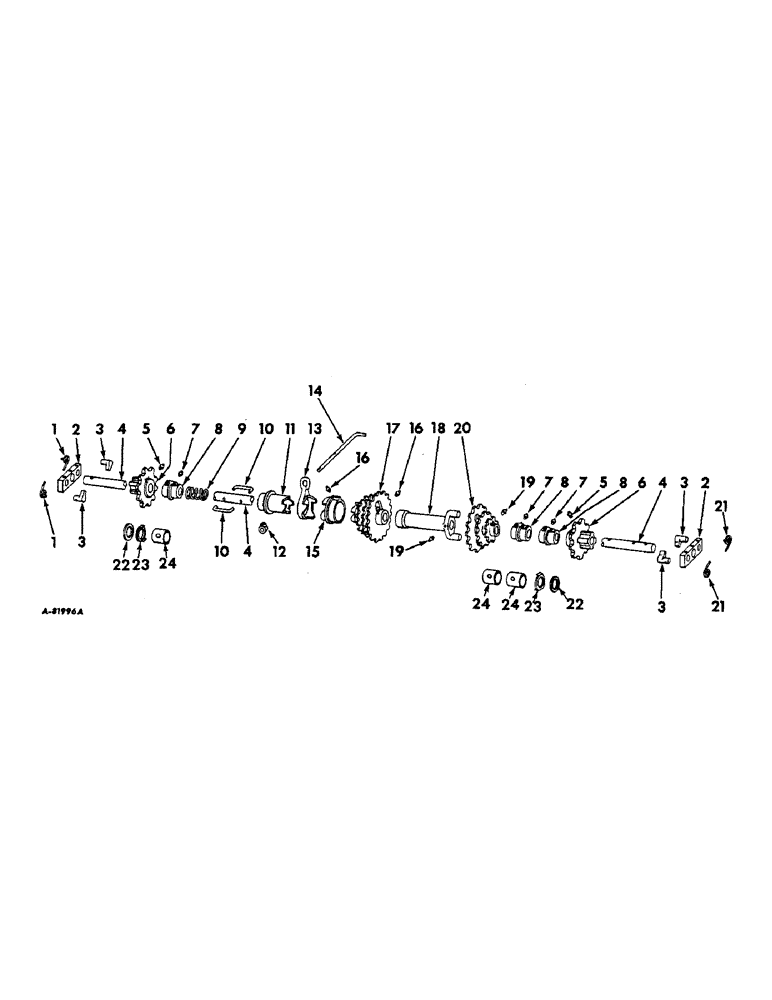

Запчасти Case IH 600 (S-04) - DRIVE UNIT

1

472721R1

SPRING

wheel ratchet LH

2шт.

2

472328R1

CARRIER

pawl

2шт.

522292R1

PIN,5/16" x 1 3/4"

5/16 x 1-3/4 std-hd

2шт.

13066R1

Pin, Split (Cotter), 1/8" x 1", self-opening 1/8" x 1"

2шт.

3

472329R1

PAWL

drive sprocket

4шт.

108635

PIN,1/8" x 1 1/8"

Split (Cotter), 1/8" x 1 1/8"

4шт.

4

481813R2

ROD

main drive

1шт.

13121R1

Pin, Split (Cotter), 1/4" x 1 1/2", self opening 1/4" x 1 1/2"

4шт.

13068R1

PIN,3/16" x 1"

Split (Cotter), , self-opening 3/16" x 1"

3шт.

5

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 NF 2 str lub, in main wheel driven sprocket

2шт.

6

484026R1

DRIVE SPROCKET

SPROCKET, main wheel driven, 10T

2шт.

21868V

WASHER

29/32 x 1-1/2 x 16 ga

4шт.

7

66584D

FITTING

3/16 drive type str lub, main drive shaft bearing

3шт.

8

481812R11

BEARING ASSY

W/BUSHING ASSY, main drive shaft

3шт.

9

269182R1

SPRING

clutch

1шт.

21868V

WASHER

29/32 x 1-1/2 x 16 ga

2шт.

10

PO23196

KEY

clutch

2шт.

11

472334R2

NO LONGER SERVICED

DRIVER, clutch

1шт.

12

514547R11

COLLAR CLAMP

COLLAR ASSY, control

1шт.

102881

SET SCREW,Sq Hd, 5/16"-18 x 1/2"

SCREW, 5/16-18 x 1/2 sq-hd cup-pt set

1шт.

13

472332R1

DRIVE

CAM, clutch

1шт.

14

472331R1

ROD

CONTROL, clutch

1шт.

13042R1

AXLE PIN,1/8" x 3/4"

Pin, Split (Cotter), , self-opening 1/8" x 3/4"

3шт.

15

472333R1

BEARING

clutch

1шт.

479139R1

THRUST WASHER

clutch thrust

1шт.

16

66584D

FITTING

3/16 drive type lub

1шт.

17

472335R2

DRIVE SPROCKET

SPROCKET, main drive, 18T, 16T, 13T

1шт.

19746R1

PIN, 1/4 x 1-1/4 light coiled spring

1шт.

21868V

WASHER

29/32 x 1-1/2 x 16 ga

1шт.

18

472433R2

COUPLING

CONNECTOR, drive sprocket

1шт.

19

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 drive type str lub, drive sprocket connector and main drive sprocket

2шт.

20

472434R1

SPROCKET ASSY.

SPROCKET, fertilizer drive, 17T, 12T and 8T

1шт.

520037R1

PIN, quick attachable cot.

1шт.

21868V

WASHER

29/32 x 1-1/2 x 16 ga

2шт.

21

472722R1

SPRING

wheel ratchet RH

2шт.

22

589937R1

WASHER

wear

5шт.

23

481810R1

WASHER

keyed

2шт.

24

484060R1

BUSHING

steel back bronzed

3шт.
