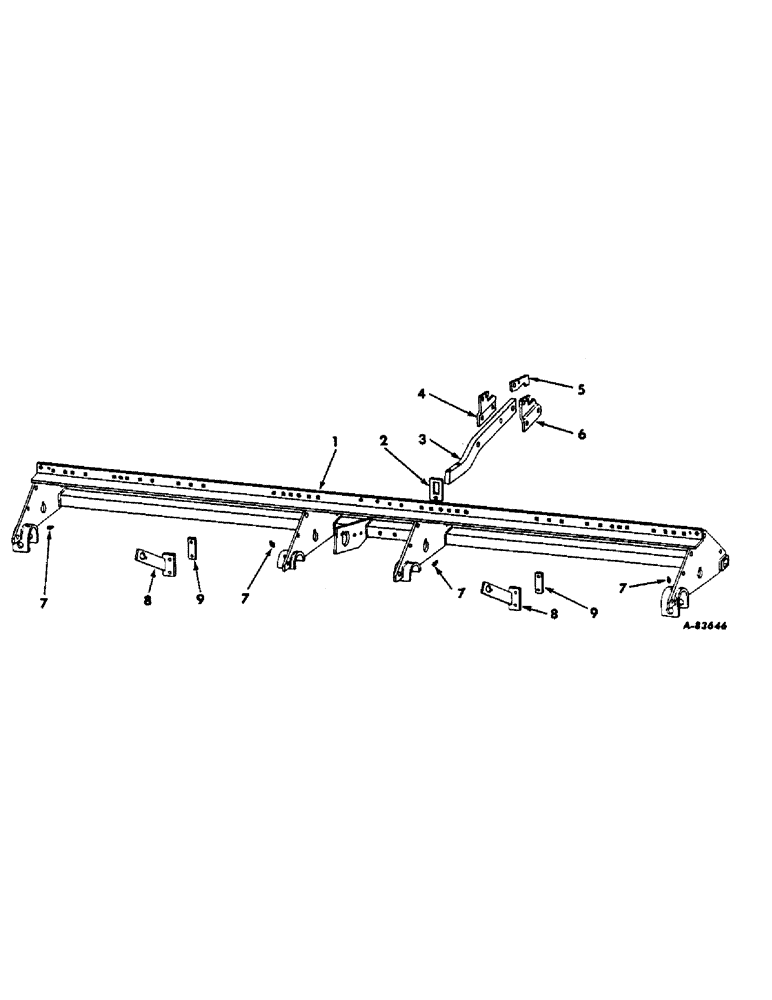

Запчасти Case IH 600 (S-03) - MAIN FRAME AND CYLINDER BRACKET

1

480049R91

FRAME ASSY, main

1шт.

13068R1

PIN,3/16" x 1"

Split (Cotter), , self-opening 3/16" x 1"

2шт.

10620P

WASHER

21/32 x 1-1/2 x 16 ga

4шт.

2

472315R1

ANCHOR, cylinder bracket

1шт.

17675R1

BOLT, 1/2-13 x 3-1/2 hex-hd mach

1шт.

102637

NUT,1/2"-13, G5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

3

472311R1

BRACKET, cylinder

1шт.

17748R1

BOLT

1/2-13 x 4-1/4 hex-hd mach

2шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

4

472314R1

SUPPORT, cylinder right

1шт.

Q5137

AXLE PIN

PIN, 1/2 x 1-3/8 std-hd

1шт.

13081R1

Pin, Split (Cotter), 3/16" x 1 1/8", self-opening 3/16" x 1 1/8"

1шт.

5

472316R1

SUPPORT

RETAINER, cylinder

1шт.

6

472313R1

SUPPORT, cylinder left

1шт.

17578R1

BOLT (SPREADER),Hex, 5/8"-11 x 2 1/2", G2

BOLT, 5/8-11 x 2-1/2 hex-hd mach

2шт.

102639

NUT,5/8"-11, G5

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

7

17238R91

LUBE NIPPLE,65 Degree, 1/4" NPT x .73" lg

FITTING, 1/7-28 NS, 3/4 65 deg lub

4шт.

8

480052R91

SUPPORT ASSY, bearing

2шт.

9

480055R1

BAR

bearing support clamp

2шт.

17721R1

BOLT, 1/2 x 4 hex-hd mach

4шт.

102637

NUT,1/2"-13, G5

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.
