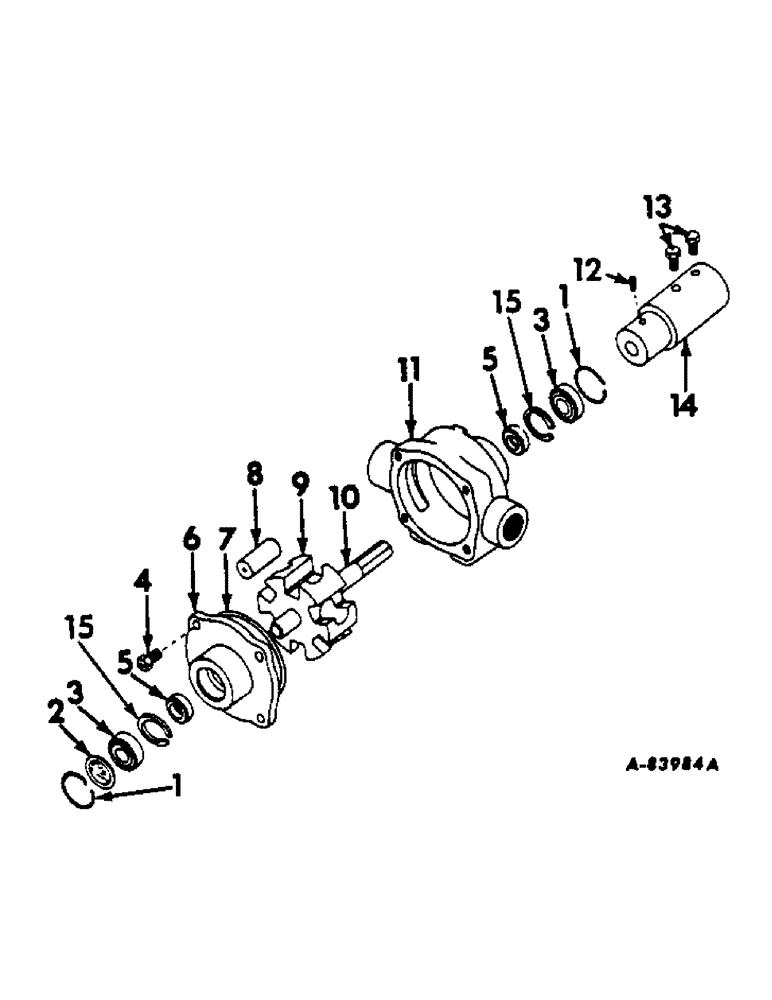

Запчасти Case IH 600 (S-23) - PUMP ASSEMBLY
№
Артикул
Название
Примечание
Количество
526990R91
PUMP
ASSY, Hypro no. C-6600, 6 nylon roller, cast iron, see note, consists of all parts marked unit A
1шт.
463269R91
PUMP ASSY, Hypro no. N-7500, 8 nylon roller, ni-resist, see note, consists of all parts marked unit B
1шт.
1
485812R1
RING, bearing retainer, unit A
2шт.
1
485820R1
RING, bearing retainer, unit B
2шт.
2
485810R1
PLATE, name, unit A
1шт.
2
485819R1
PLATE, name, unit B
1шт.
3
588825R91
BALL BEARING,0.625" ID x 1.375" OD x 0.4375"
ball sealed, unit A
2шт.
3
ST544
BEARING, BALL,25mm ID x 52mm OD x 15mm W
sealed, unit B
2шт.
4
180077
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
SCREW, 5/16 x 3/4 C-Z hex-hd cap, 4 for unit A, 6 for unit B
1шт.
5
485806R91
SEAL
rubber sealing member, unit A
2шт.
5
485815R91
SEAL
rubber sealing member, unit B
2шт.
6
485807R91
PLATE ASSY, end, unit A, includes item no. 5
1шт.
6
485816R91
PLATE ASSY, end, unit B, includes item no. 4 and 5
1шт.
7
610411C1
O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro
GASKET END PLATE, unit A
1шт.
7
343700R1
O-RING,-155, 70 Duro, 3.987" ID x .103" Thk
GASKET END PLATE, unit B
1шт.
8
485811R1
ROLLER
nylon, 6 for unit A, 8 for unit B
1шт.
9
485811R1
ROLLER
nylon, 6 for unit A and 8 for unit B
1шт.
9
485817R91
ROTOR W/SHAFT, unit B
1шт.
10
485809R1
SHAFT, includes set screw, 191950, unit A
1шт.
10
485818R1
SHAFT, includes set screw, 191950, unit B
1шт.
11
485805R91
BODY, pump, cast iron, unit A, includes item no. 5
1шт.
11
485814R91
BODY, pump, ni-resists, unit B, includes item no. 5
1шт.
12
191950
SET SCREW,Hdls Hex Skt, 5/16" - 18 x 3/8", Cup Pt
SCREW, 5/16-18 x 3/8 C-Z hex-soc-hd cup-pt set
1шт.
13
180075
BOLT,Hex, 5/16" - 18 x 5/8", Gr 5
SCREW, 5/16-18 x 5/8 C-Z hex-hd cap
2шт.
14
485813R91
ADAPTER ASSY, for standard 1-3/8 in. PTO, includes item no. 13, unit A
1шт.
142671
SET SCREW
SCREW, 5/16-18 x 1/2 C-Z sq-hd cup-pt set
1шт.
14
485821R91
ADAPTER ASSY, unit B
1шт.
485822R1
KEY, brass spline
1шт.
878424R1
PIN
shear
1шт.
138250
SCREW, 3/8-16 x 3 C-Z hex-soc-hd cap
1шт.
15
485823R1
RING, bearing spacing
2шт.
Выбрано товаров: 31
