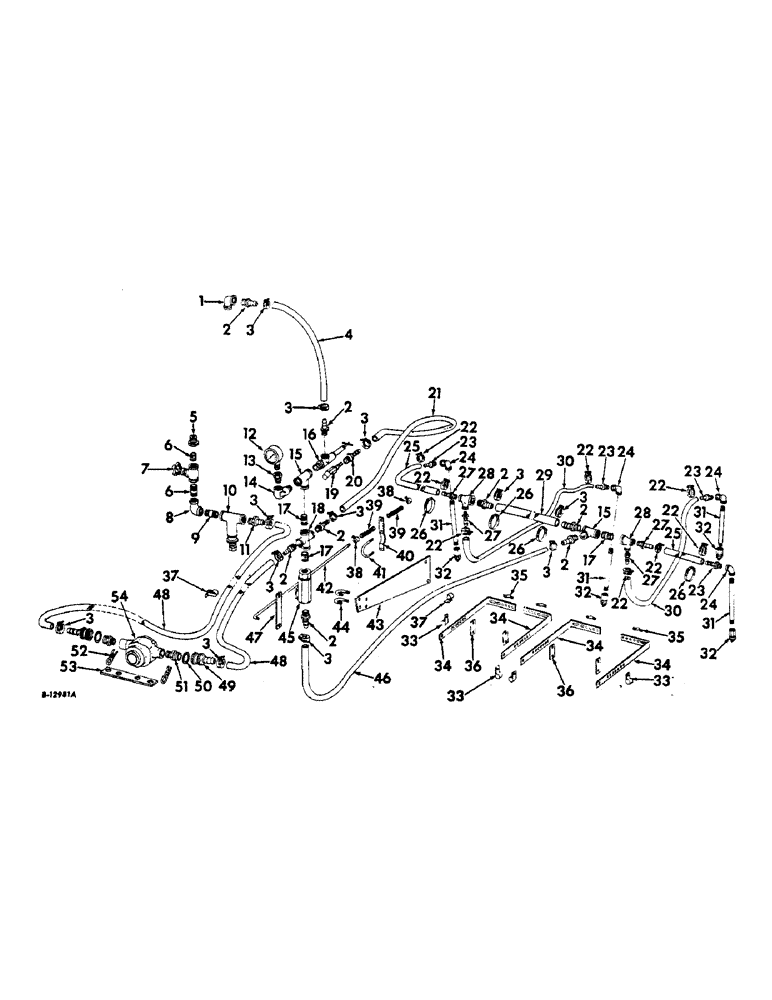

Запчасти Case IH 600 (S-21) - LIQUID PRE-EMERGE PUMP UNIT

1

144130

PEDAL

ELBOW, 1/2 x 90 deg by-pass hose brass

1шт.

2

526635R1

NIPPLE, 1/2 NPT x 1/2 brass, by-pass

12шт.

3

526610R91

CLAMP, hose 1/2

16шт.

4

HOSE, by-pass 1/2 x 7/8 x 24 in. long, order hose from 50 ft roll marked, 526602R1

1шт.

5

217-45

REDUCER,3/4" - 14 NPTF x 1/2" - 18 Fem NPTF

bushing, pipe, brass tank shut-off 3/4"-14 NPTF x 1/2"-18 Fem NPTF

1шт.

6

120460

PIPE,Nipple, 1/2" NPT x 1 1/8", Brass

NIPPLE, 1/2 x 1-1/8 pipe

2шт.

7

475217R91

VALVE ASSY, tank shut-off

1шт.

8

179550

ELBOW, 3/4 x 1/2 90 deg reducing pipe tank shut-off

1шт.

9

219902

NIPPLE, 3/4 x 2 pipe brass strainer

1шт.

10

526789R91

STRAINER ASSY, tank, for components see list of parts under details of line strainer

1шт.

11

475218R1

NIPPLE, 3/4 NPT x 1/2 brass pump, Serial Range: hose-strainer

1шт.

12

526992R92

GAUGE

GAGE ASSY, pressure

1шт.

13

217-43

REDUCER,1/2" - 14 NPTF x 1/4" - 18 Fem NPTF

1/2 x 1/4 brass reducing, pressure gage

1шт.

14

(Not used in this application)

1шт.

15

144089

TEE,1/2" NPT, Fem

1/2 brass pipe relief valve

2шт.

16

526788R91

VALVE ASSY, pressure relief, for components see list of parts under details of relief valve

1шт.

17

191032

PIPE,Nipple, 1/2" NPT x 1 1/2", Brass

NIPPLE, 1/2 NPT x 1-1/2 brass pipe

3шт.

18

144158

LEVER

CROSS, 1/2 brass pipe automatic valve

1шт.

19

475216R1

NOZZLE, agitator hose

1шт.

20

475215R1

NIPPLE, agitator hose

1шт.

21

HOSE, agitator 1/2 x 7/8 x 60 in. long, order hose from 50 ft roll marked, 526602R1

1шт.

22

526611R91

CLAMP, 3/8 in. hose

12шт.

23

526633R1

NIPPLE, 1/4 NPT x 3/8 hose brass

6шт.

24

137538

YOKE

ELBOW, 1/4 x 90 deg pipe brass

6шт.

25

HOSE, planter outer 3/8 x 11/16 x 75 in. long, order hose from 50 ft roll marked, 526601R1

2шт.

26

(Not used in this application)

1шт.

27

526634R1

NIPPLE, 3/8 NPT x 3/8 hose brass

6шт.

28

179645

TEE, 1/2 x 3/8 x 3/8 pipe reducing

2шт.

29

HOSE, planter 1/2 x 7/8 x 18 in. long, order hose from 50 ft roll marked, 526602R1

1шт.

30

HOSE, planter inner 3/8 x 11/16 x 36 in. long, order hose from 50 ft roll marked, 526601R1

2шт.

31

443592

NIPPLE, 1/4 x 7-1/2 pipe brass, spraying nozzle

6шт.

32

526614R91

NOZZLE ASSY, spray, no. 3

6шт.

32

463271R91

NOZZLE ASSY, spray, no. 1

4шт.

32

463273R91

NOZZLE INJECTION

NOZZLE ASSY, spray, no. 1, 5

4шт.

32

463275R91

NOZZLE ASSY, spray, no. 2

6шт.

32

463277R91

NOZZLE ASSY, spray, no. 4

4шт.

32

463279R91

NOZZLE ASSY, spray, no. 5

4шт.

32

463281R91

NOZZLE ASSY, spray, NO. 6

4шт.

33

526653R1

CLIP, hose to planter frame rail

11шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8-16 x 1 C-Z hex-hd mach

12шт.

120377

NUT,3/8" - 16, Gr 5

5шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

17шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

17шт.

34

526995R1

BRACKET, nozzle attaching

6шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8-16 x 1-1/4 C-Z

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

614452R1

WASHER

13/32 x 1-1/4 x 11 ga C-Z

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

35

526998R1

CLIP, nozzle pipe

6шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16-18 x 3/4 C-Z

12шт.

120376

NUT,5/16"-18, G5

12шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

36

527185R1

STRAP, nozzle attaching bracket

6шт.

17413R1

BOLT,Hex, 7/16"-14 x 3/4", G2, Full Thd

7/16-14 x 3/4 hex-hd mach

6шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

6шт.

37

526653R1

CLIP, suction pump hose

2шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16-18 x 1 C-Z hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

1шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

38

514547R11

COLLAR CLAMP

COLLAR ASSY, shut-off valve link

2шт.

102881

SET SCREW,Sq Hd, 5/16"-18 x 1/2"

SCREW, 5/16-18 x 1/2 sq-hd cup-pt set

2шт.

39

2067A

SPRING

shut-off valve link

2шт.

Q1597

WASHER

13/32 x 3/4 x 16 ga

2шт.

40

475210R3

BRACKET, shut-off valve link

1шт.

41

475211R1

BOLT, shut-off valve link bracket U

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

42

471396R1

LINK, shut-off valve

1шт.

13042R1

AXLE PIN,1/8" x 3/4"

Pin, Split (Cotter), , self-opening 1/8" x 3/4"

2шт.

43

475207R1

BRACKET, shut-off valve support

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8-16 x 1 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

44

475208R1

BOLT, shut-off valve support bracket U

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

45

475209R91

VALVE, automatic shut-off

1шт.

46

HOSE, discharge 1/2 x 7/8 x 70 in. long, order hose from 50 ft roll marked, 526602R1

1шт.

47

475212R1

HANDLE, shut-off valve

1шт.

48

HOSE, 1/2 x 7/8 x 84 in. long, pump pressure and suction, order hose from 50 ft roll marked, 526602R1

2шт.

49

475220R1

COUPLING, 1/2 in. hose shank brass swivel female garden hose 3/4 thd

2шт.

50

475222R1

WASHER, pump hose coupling

2шт.

51

475221R1

ADAPTER, pump hose 3/4 male garden hose thd by 3/4 NPT

2шт.

52

466007R91

CHAIN, pump

2шт.

18474

BOLT, 5/16 x 1 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

611344R1

WASHER

11/32 x 7/8 x 16 ga C-Z

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

53

466008R1

ANCHOR, pump

1шт.

18473R1

SCREW,Hex, 5/16"-18 X 5/8", G2

BOLT, 5/16 x 5/8 C-Z hex-hd mach

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

54

PUMP ASSY, for components see list of parts under details of pump assy

1шт.
