Запчасти Case IH 600 (S-19) - LIQUID PRE-EMERGE TANK AND SUPPORTS

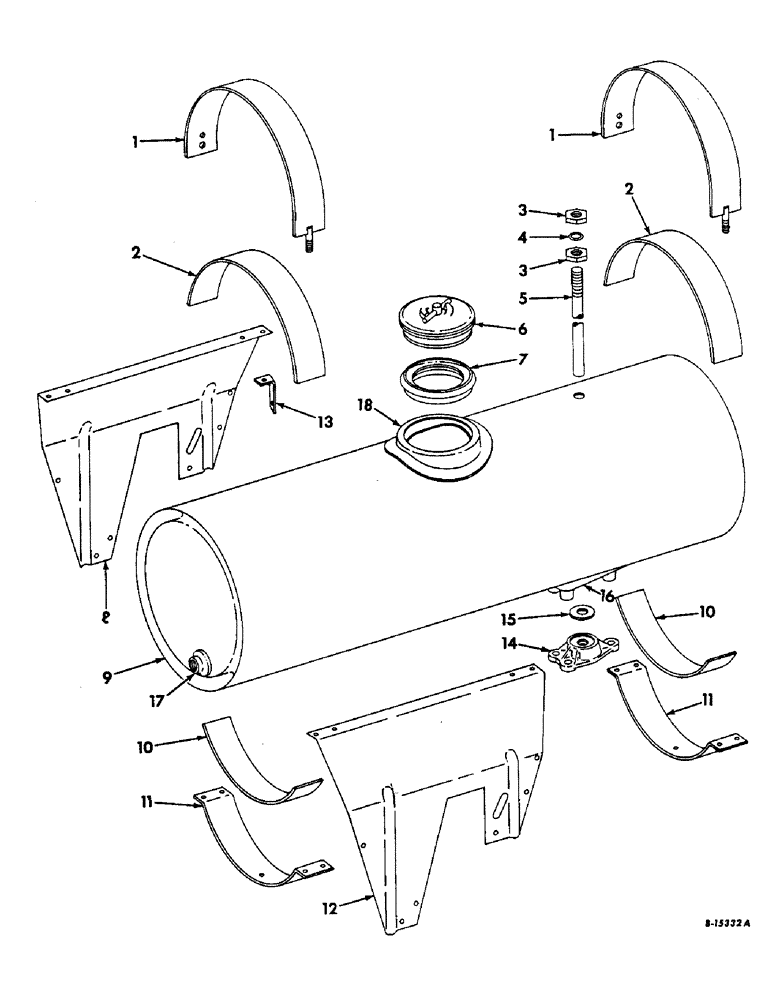

Схема запчастей Case IH 600 - (S-19) - LIQUID PRE-EMERGE TANK AND SUPPORTS
1
3
14
17
2
16
8
18
13
3
2
5
15
11
1
12
7
11
4
10
10
6
9

Артикул

Название

Примечание

Количество

1

479257R92

STRAP ASSY, clamp

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C-Z hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

2

478846R1

PAD, clamp

2шт.

3

474675R1

NUT, pipe lock

2шт.

4

350684R1

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

tank pipe

1шт.

5

474674R1

PIPE, tank

1шт.

6

469918R3

CAP

COVER ASSY, tank

1шт.

7

474677R3

GASKET

tank cover

1шт.

8

475205R31

SUPPORT ASSY, tank LH

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 C-Z hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

9

479269R91

TANK ASSY, 50 gallon chemical, includes ref. nos. 16, 17 & 18

1шт.

10

474687R1

PAD, tank

2шт.

11

479271R1

STRAP, tank support

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C-Z hex-hd cap

4шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z, on right side

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

12

475206R3

SUPPORT, tank RH

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 C-Z hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

13

478488R1

GUIDE, rod

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 C-Z hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

14

475203R1

FITTING, tank outlet

1шт.

15

474703R2

WASHER, tank outlet fitting

1шт.

16

478842R1

HOUSING, valve, see note, order 484740R1, and hardware

1шт.

474672R1

NUT, tee

3шт.

16

484740R1

HOUSING, fertilizer tank valve

1шт.

484699R1

BOLT, 5/16-18 x 1-3/4 stainless stl hex-hd

3шт.

484700R1

NUT

5/16-18 stainless stl hex.

3шт.

17

475202R1

FITTING, tank outlet, see note

1шт.

18

481802R1

NECK FILLER

NECK, tank filler, see note

1шт.

Выбрано товаров: 38
