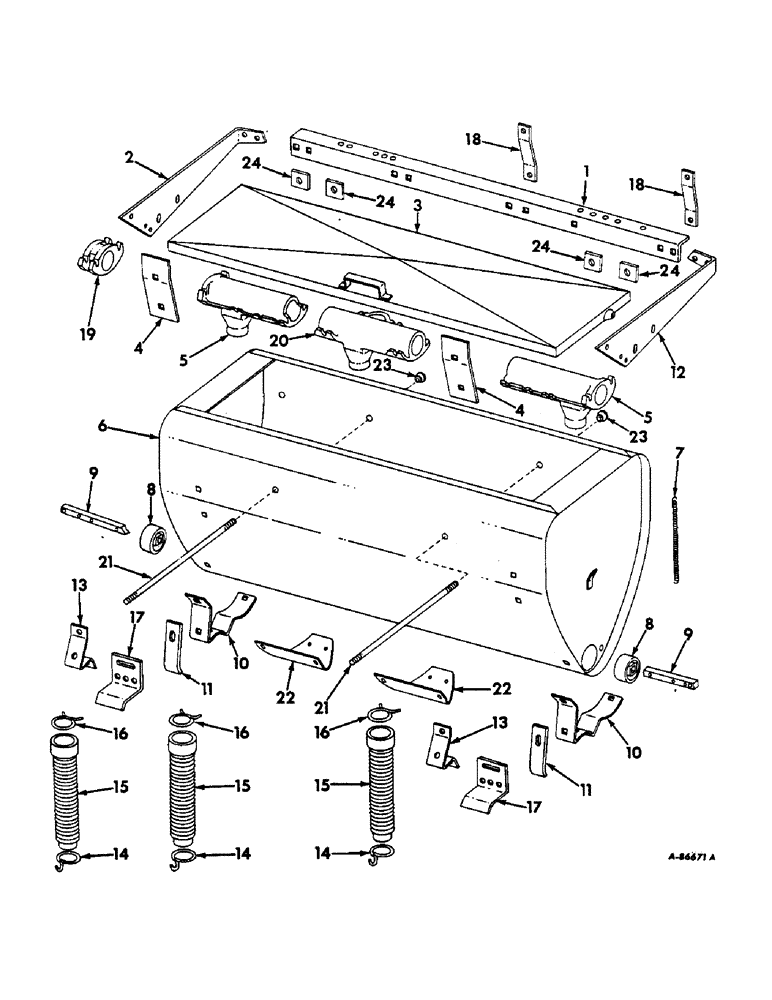

Запчасти Case IH 600 (S-15) - DRY FERTILIZER HOPPER AND SUPPORTS

1

484041R1

ANGLE, lift rod support left

1шт.

1

484042R1

ANGLE, lift rod support right

1шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2-13 x 1-1/4 C-Z sq-nk crg

12шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

12шт.

120384

WASHER,1/2"

LOCK, 1/2"

12шт.

2

480146R1

PLATE, rod support RH

2шт.

3

484050R11

COVER ASSY, hopper

2шт.

12235R1

1/8" x 5/8" 1/8" x 5/8"

4шт.

4

472407R1

REINFORCEMENT, hopper

4шт.

5

472416R2

HOUSING

auger feed

4шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

16шт.

120376

NUT,5/16"-18, G5

16шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

16шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

16шт.

6

484047R91

HOPPER ASSY

2шт.

7

479124R1

VALVE SPRING

SPRING, hopper hold down

4шт.

8

472417R1

BEARING

auger

4шт.

Ref item #8 472417R1 was eliminated on ECN #FEC 94403 in 1974 per service bul. S 2968. The auger shaft was lengthened to take up the as cast bearing space per Allen Jansen. by bb 6/14/96

1шт.

8

483532R1

BEARING, auger, used with extra high rate augers

4шт.

9

484278R1

BAR

auger feed

2шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

16шт.

455183R1

LOCK PIN,5/16" x 2 1/2", Slotted

Pin, 5/16" x 2 1/2", Slotted

2шт.

10

472409R1

BOLSTER

SUPPORT, hopper lower

4шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2-13 x 1 C-Z short-sq-nk crg

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

11

472410R1

RETAINER, tank

4шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2-13 x 1-1/4 C-Z sq-nk crg

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

12

480145R1

PLATE, lift rod support LH

2шт.

13

472406R1

BRACKET, hinge

4шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2-13 x 1-1/4 C-X hex-hd mach

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

13042R1

AXLE PIN,1/8" x 3/4"

Pin, Split (Cotter), , self-opening 1/8" x 3/4"

4шт.

W6571

PIN, 3/8 x 1-11/16 std-hd

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

14

626461R1

CLIP, hose lower

6шт.

610784R1

SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL

PIN, quick attachable

6шт.

15

480156R2

HOSE

fertilizer, 35 corrugations

6шт.

16

860200R1

HOSE CLAMP,#36, 2 1/4", Spring

CLAMP, hose upper

6шт.

17

472404R1

HINGE, hopper frame inner

4шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2-13 x 1-1/4 C-Z sq-nk crg

6шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

18

480144R1

STRIP, lift rod angle

4шт.

19

472415R1

SPACER

COUPLING, short auger

2шт.

520177R1

PIN

quick attachable cot.

2шт.

19471R1

PIN, SPLIT (COTTER),1/4" x 1 3/4"

2шт.

20

480099R1

NO LONGER SERVICED

HOUSING, auger feed center

2шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

8шт.

120376

NUT,5/16"-18, G5

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

8шт.

21

484051R1

ROD, tie

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

16шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

12026R1

WASHER

17/32 x 1-1/4 x 16 ga C-Z

12шт.

22

484279R1

COVER, hopper

4шт.

18473R1

SCREW,Hex, 5/16"-18 X 5/8", G2

BOLT, 5/16 x 5/8 C-Z hex-hd mach

16шт.

120376

NUT,5/16"-18, G5

16шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

16шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

32шт.

23

466502R1

SPACER, auger housing

4шт.

24

472429R1

BAR

PAD, hopper

4шт.
