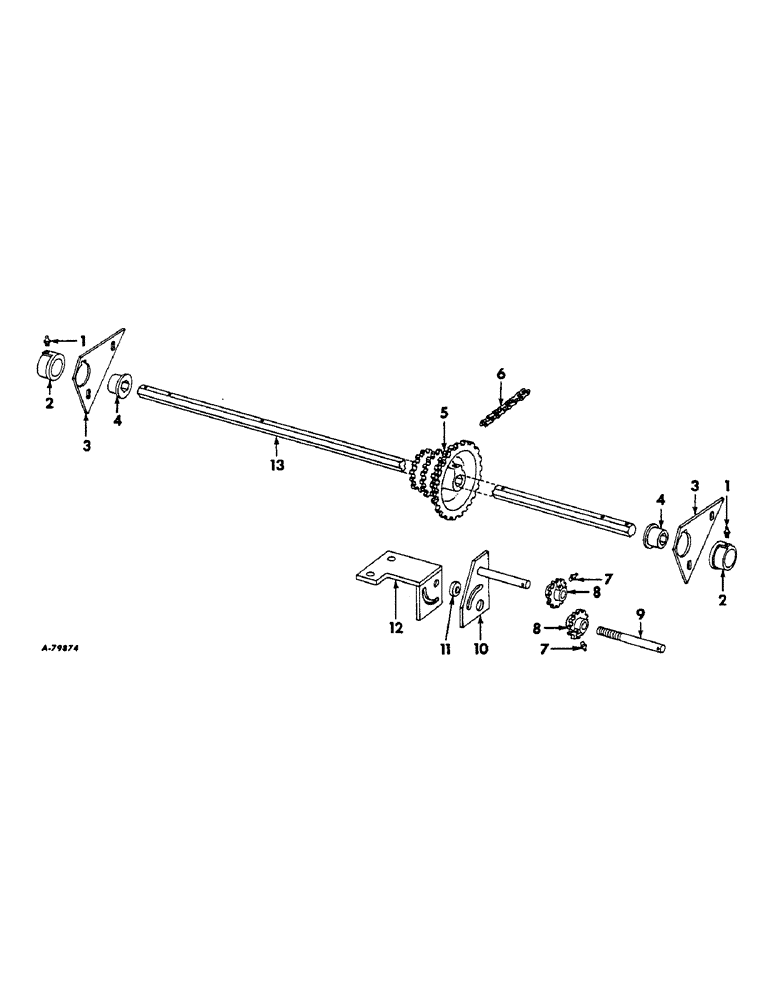

Запчасти Case IH 600 (S-14) - DRY FERTILIZER HOPPER DRIVE

1

219-38

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING, 1/4-28 NS 45 deg angle lub, drive shaft brg

2шт.

2

472431R1

COLLAR

BEARING, drive shaft

2шт.

3

472430R1

SUPPORT

drive brg

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C-Z hex-hd cap

4шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

4

472432R1

BUSHING

drive shaft, 1966

2шт.

4

483535R1

BUSHING

drive shaft, 1967 and since

2шт.

5

472435R1

SPROCKET ASSY.

SPROCKET, drive 8T, 9T, 15T and 18T, 1966

1шт.

102893

SCREW, 3/8-16 x 5/8 sq-hd cup-pt set

1шт.

5

483537R1

SPROCKET ASSY.

SPROCKET, driven 11T, 15T and 1T, 1967 and since

1шт.

20535R1

CLEVIS PIN

PIN, 3/16 x 1-3/4 C-Z rod end

2шт.

112726

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

2шт.

6

CHAIN, fertilizer drive, use 43 links 1 in. extended pitch agriculture roller chain marked, 569088R91, one connecting link, 457113R91, and one offset link, 457114R91

1шт.

7

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 drive type str lub, idler sprocket

2шт.

8

472344R1

SPROCKET

chain tightener idler, 6T

2шт.

9

472342R1

STUD

idler

1шт.

102637

NUT,1/2"-13, G5

2шт.

13068R1

PIN,3/16" x 1"

Split (Cotter), , self-opening 3/16" x 1"

1шт.

12026R1

WASHER

17/32 x 1-1/4 x 16 ga

1шт.

10

472438R91

BAR

STRAP ASSY, chain tightener

1шт.

86508749

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8-16 x 1-1/4 short-sq-nk crg

1шт.

102635

NUT,3/8"-16, G5

1шт.

13068R1

PIN,3/16" x 1"

Split (Cotter), , self-opening 3/16" x 1"

1шт.

Q1597

WASHER

13/32 x 3/4 x 16 ga

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

11

622567R1

WASHER

BUSHING, chain tightener

1шт.

12

472437R1

SUPPORT

BRACKET, chain tightener

1шт.

13

480097R1

ROD

fertilizer drive, 1966

1шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

3шт.

13

483536R1

ROD

SHAFT, fertilizer drive, 1967 and since

1шт.

137268

KNIFE

3/16 x 2-1/4 C-Z cot.

3шт.
