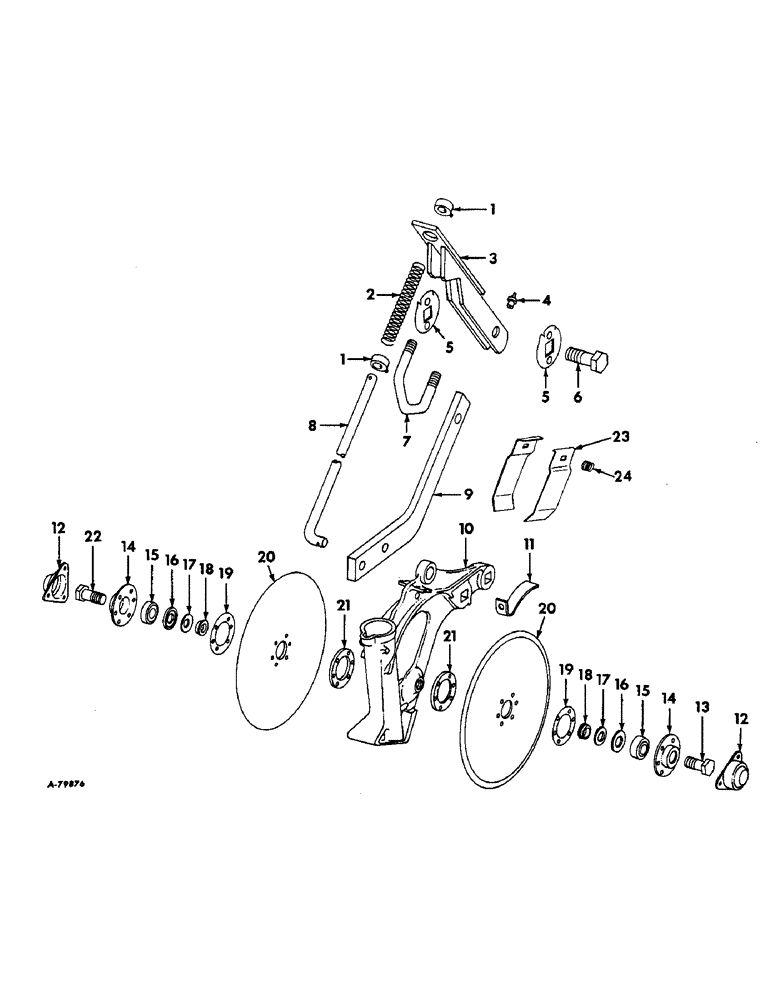

Запчасти Case IH 600 (S-12) - FERTILIZER DOUBLE DISK OPENER AND SCRAPER

1

516595R11

COLLAR,16.67mm ID x 28.5mm OD x 19mm L

COLLAR W/SET SCREW, lift rod

12шт.

85-15010

SET SCREW,Sq Hd, 1/2"-13 x 5/8"

SCREW, 1/2-13 x 5/8 sq-hd cup-pt set

12шт.

2

26AS

SPRING

pressure rod

6шт.

3

472390R92

BRACKET ASSY, lift arm

6шт.

4

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 drive type str lub

6шт.

5

522532R1

RETAINER

WASHER, drawbar

12шт.

6

472396R1

BOLT,Hex, 3/4" - 10 x 2.24"

drawbar pivot

6шт.

218443

NUT

3/4-10 hex. jam

6шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

6шт.

7

484386R1

BOLT,5/8" - 11 x 6.1"

lift arm U

6шт.

102639

NUT,5/8"-11, G5

12шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

8

472397R1

ROD

lift

6шт.

108638

COTTER PIN,3/16" x 1 1/8"

Pin, Split (Cotter), 3/16" x 1 1/8"

12шт.

12258R1

WASHER

21/32 x 1-1/4 x 11 ga

6шт.

9

472395R1

BAR, fertilizer draw

6шт.

15073R1

BOLT, 1/2-13 x 2 sq-nk crg

12шт.

102637

NUT,1/2"-13, G5

12шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

12шт.

10

472388R2

BOOT

double disk fertilizer

6шт.

11

472389R1

GUARD

stone

6шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

SCREW, 5/16-18 x 5/8 C-Z hex-hd cap

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

12

464483R1

CYLINDER END CAP

CAP, brg housing

12шт.

180015

SCREW, 1/4-20 x 7/16 C-Z hex-hd cap

36шт.

13

464481R1

BOLT (SPREADER),Hex, 5/8" - 11 x 1.44", LH

BOLT, disk brg LH thread

6шт.

14

602989R1

FLANGE,1.41" ID x 3.25" OD x 0.63"

HOUSING, disk brg

12шт.

NLS

NO LONGER SERVICED

SCREW, 1/4-20 x 7/16 C-Z hex-hd cap

36шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

36шт.

15

465004R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

ASSY, ball

12шт.

16

602994R1

FLANGE

12шт.

17

464628R1

SEAL

dirt

12шт.

18

602988R1

SPACER

seal retainer

12шт.

19

602992R1

GASKET

disk

12шт.

20

524676R1

DISK HARROW

DISK, opener

12шт.

21

464480R1

WASHER

WASHER, reinforcing

12шт.

22

464482R1

BOLT (SPREADER),Hex, 5/8" - 11 x 1.44", RH

BOLT, disk brg RH thread

6шт.

23

601291R1

SCRAPER

outside

8шт.

15219R1

BOLT, 5/16-18 x 4-1/4 sq-nk crg

4шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

8шт.

Q397

WASHER

11/32 x 3/4 x 16 ga

4шт.

24

NA62774

SPRING

outside scraper

8шт.
