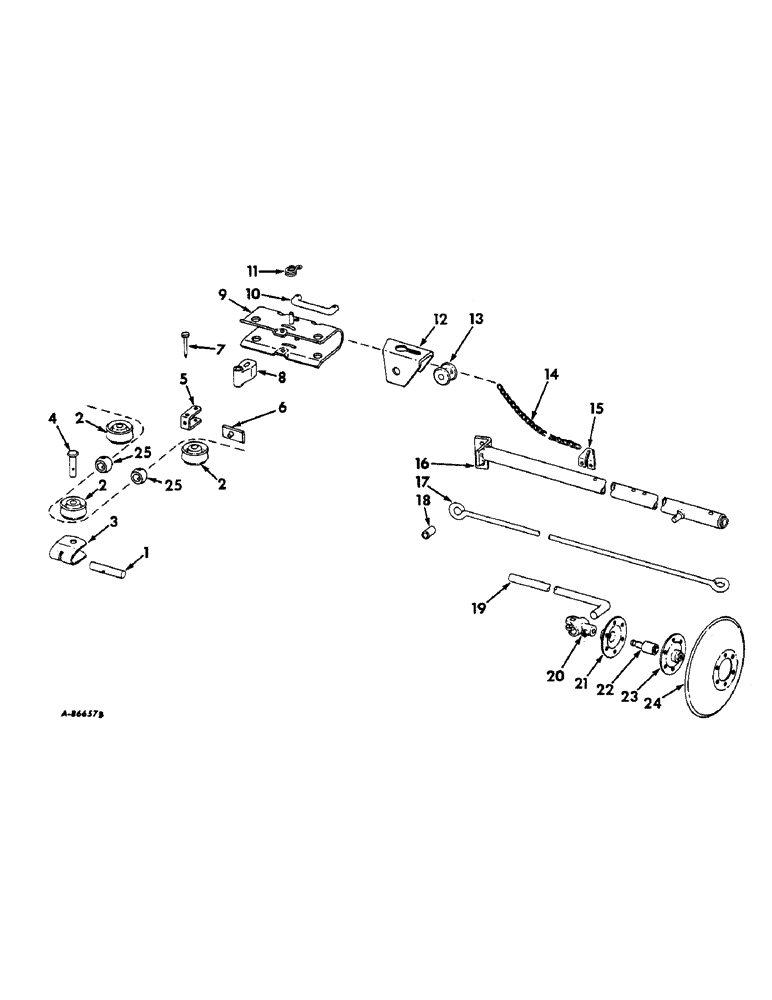

Запчасти Case IH 600 (S-10) - MARKER UNIT, DISK TYPE

1

472375R1

PIN

pivot

1шт.

576517R1

LOCK PIN,1/4" x 1 1/2", Slotted

Pin, 1/4" x 1 1/2", Slotted

1шт.

2

625071R1

PULLEY

SHEAVE, chain roller

3шт.

3

472374R1

BRACKET

pulley

1шт.

4

474110R1

PIN

marker sheave

1шт.

13094R1

Pin, Split (Cotter), 3/16" x 1 1/4", self-opening 3/16" x 1 1/4"

1шт.

5

481927R2

CLEVIS

holder switching arm, order 486980R1

1шт.

5

486980R1

YOKE

CLEVIS, holder switching arm

1шт.

13042R1

AXLE PIN,1/8" x 3/4"

Pin, Split (Cotter), , self-opening 1/8" x 3/4"

1шт.

6

481934R1

CAP

ARM, switcher, order 486997R1

1шт.

6

486997R1

ARM

switcher

1шт.

7

486981R1

PIN

marker clevis

1шт.

8

481926R1

HOLDER

marker chain

1шт.

V4941/2

PIN

5/16 x 2 std-hd

1шт.

13042R1

AXLE PIN,1/8" x 3/4"

Pin, Split (Cotter), , self-opening 1/8" x 3/4"

1шт.

9

481930R92

CASE

ASSY, pulley

1шт.

H2808

HEADED PIN,5/8" x 2"

PIN, 5/8 x 2 std-hd

2шт.

13094R1

Pin, Split (Cotter), 3/16" x 1 1/4", self-opening 3/16" x 1 1/4"

2шт.

Q3519

HEADED PIN,1/4" x 2 1/2"

PIN, 1/4 x 2-1/2 std-hd

1шт.

97865H

WASHER

9/32 x 3/4 x 16 ga

1шт.

13042R1

AXLE PIN,1/8" x 3/4"

Pin, Split (Cotter), , self-opening 1/8" x 3/4"

1шт.

10

472354R1

ROD

idler pulley pivot, order 484447R1

1шт.

10

484447R1

ROD

idler pulley pivot

1шт.

13121R1

Pin, Split (Cotter), 1/4" x 1 1/2", self opening 1/4" x 1 1/2"

1шт.

11

481929R1

SPRING

snubber

1шт.

12

484281R1

BRACKET

latch right

1шт.

12

484280R1

SUPPORT

BRACKET, latch left

1шт.

111-404

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/4", G5

BOLT, 7/16 x 1-1/4 sq-nk crg

2шт.

NLS

NO LONGER SERVICED

7/16-14 hex.

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

13

625036R1

PULLEY

ROLLER, lift chain

2шт.

SA3442

PIN, 1/2 x 2-15/16 std-hd

2шт.

13094R1

Pin, Split (Cotter), 3/16" x 1 1/4", self-opening 3/16" x 1 1/4"

2шт.

14

480058R2

CHAIN (AG)

CHAIN, marker

1шт.

15

464003R1

CLIP

marker chain

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

4шт.

179827

FRONT AXLE

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

16

478165R91

PIPE ASSY, marker right hand

1шт.

16

478166R91

PIPE ASSY, marker left hand

1шт.

102637

NUT,1/2"-13, G5

1шт.

PO20069

PIN, 7/8 x 4-7/8 std-hd

2шт.

13121

SCREW,Sq Hd, 1/4" x 1 1/2", Cup Pt

PIN, 1/4 x 1-1/2 sq-hd cup-pt set

1шт.

17

478171R1

ROD, marker

1шт.

102637

NUT,1/2"-13, G5

1шт.

13094R1

Pin, Split (Cotter), 3/16" x 1 1/4", self-opening 3/16" x 1 1/4"

1шт.

110452

SET SCREW

1/2-13 x 1-1/2 sq-hd cup-pt set

1шт.

10620P

WASHER

21/32 x 1-1/2 x 16 ga

2шт.

18

478176R1

BUSHING

brace rod

2шт.

19

478033R1

ROD

marker disk clamp

1шт.

20

478032R1

CLAMP

axle

2шт.

15073R1

BOLT, 1/2-13 x 2 sq-nk crg

2шт.

102637

NUT,1/2"-13, G5

SCREW, 3/8-16 x 3/4 sq-hd cup-pt set

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

21

478035R1

BEARING HOUSING,109 mm OD x 19.3 mm

disk brg inner

2шт.

22

ST438

BEARING

ball

2шт.

480679R1

WASHER

dirt seal felt

2шт.

23

478036R1

BEARING HOUSING,30.023 mm ID x 69 mm OD x 19.3 mm

disk brg outer

2шт.

24

479473R1

DISC

DISK, 11 inch

2шт.

120376

NUT,5/16"-18, G5

12шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 C-Z hex-hd cap

12шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

25

481925R2

BALL

marker chain button

2шт.

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

2шт.
