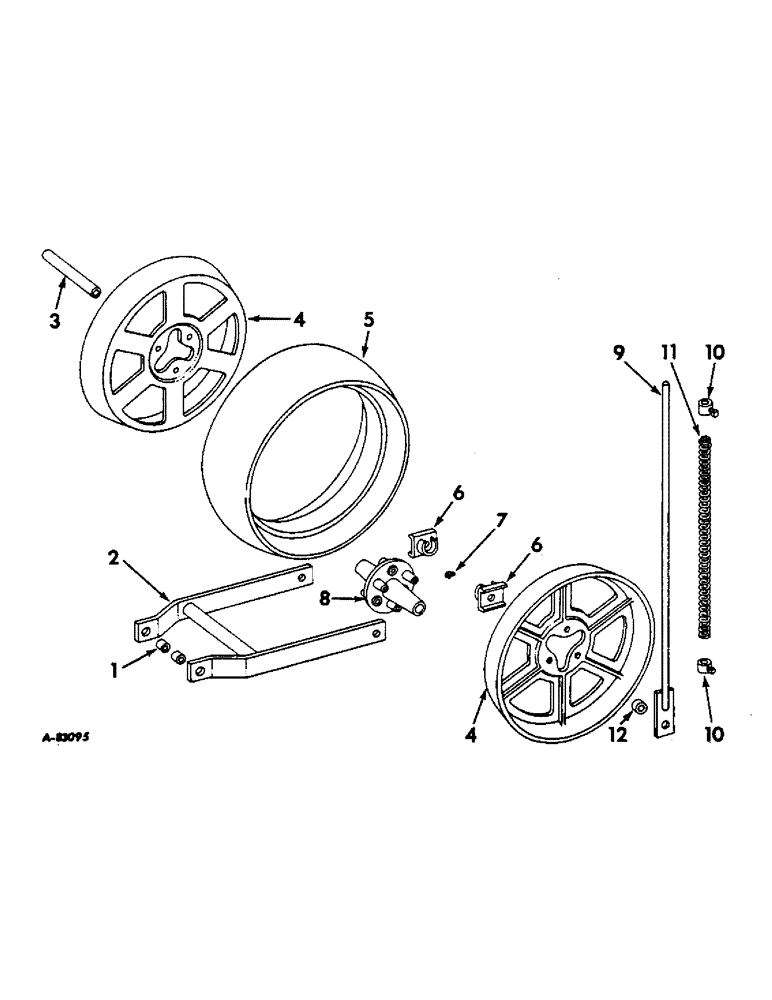

Запчасти Case IH 600 (S-09) - PACKER WHEEL UNIT, ONE PER ROW

1

524646R1

BUSHING

wheel frame

2шт.

2

479871R91

FRAME ASSY, wheel

1шт.

17498R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 2

1/2-13 x 1-3/4 hex-hd mach

2шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

12026R1

WASHER

17/32 x 1-1/4 x 16 ga

1шт.

3

PO15961

BUSHING, packer wheel

1шт.

18000R1

BOLT, 1/2-13 x 9 hex-hd mach

1шт.

102637

NUT,1/2"-13, G5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

4

PO3150

WHEEL

half

2шт.

5

517315R1

TYRE/TIRE

TIRE, zero-pressure 6 x 16 in.

1шт.

6

PO3099

BAND, sand

2шт.

7

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 PTF 65 deg angle lub, in wheel hub

1шт.

8

517313R1

HUB, wheel

1шт.

18768R1

BOLT,Hex, 5/16"-18 x 2 1/4", G2

5/16 x 2-1/4 C-Z hex-hd mach

6шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

9

479874R91

ROD ASSY, pressure

1шт.

10

516595R11

COLLAR,16.67mm ID x 28.5mm OD x 19mm L

COLLAR ASSY, set

2шт.

85-15010

SET SCREW,Sq Hd, 1/2"-13 x 5/8"

SCREW, 1/2-13 x 5/8 sq-hd cup-pt set

2шт.

11

PO165

SPRING

1шт.

12

650927R1

SPACER

BUSHING

1шт.
