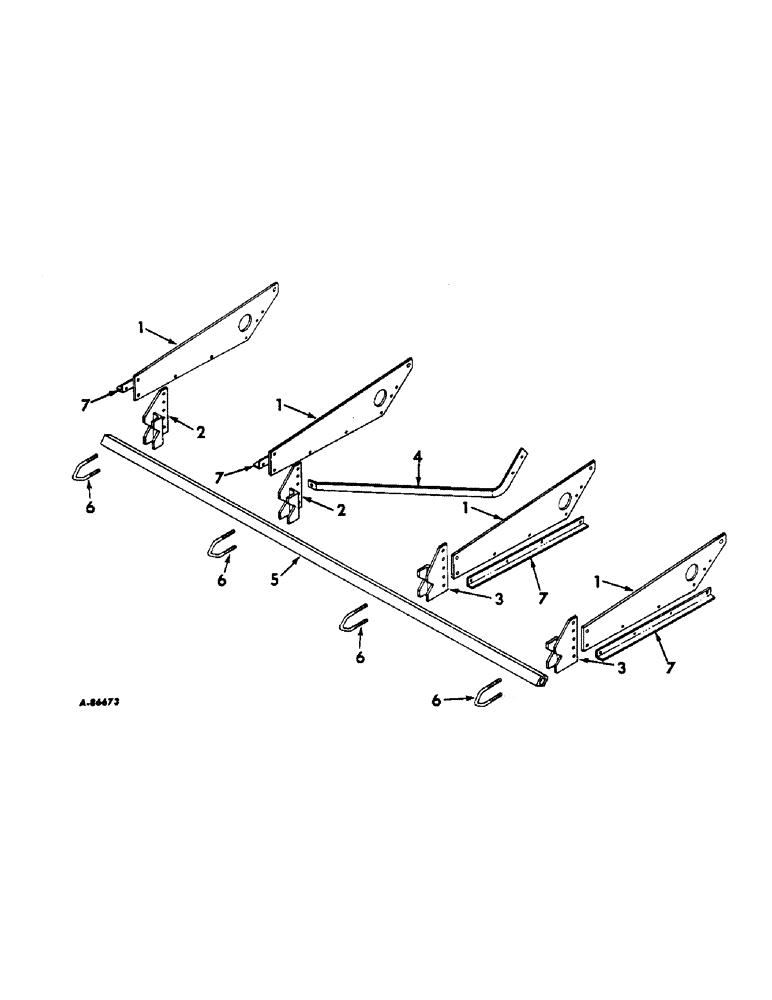

Запчасти Case IH 600 (S-08) - PLANTER ATTACHING UNIT

1

484043R1

PLATE, outer toolbar

4шт.

120377

NUT,3/8" - 16, Gr 5

7шт.

102639

NUT,5/8"-11, G5

4шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 C-Z hex-hd cap

4шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

SCREW, 3/8-16 x 1-1/2 C-Z hex-hd cap

3шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

SCREW, 5/8-11 x 1-1/2 hex-hd cap

4шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

7шт.

2

480985R91

PLATE ASSY, attaching LH

2шт.

102637

NUT,1/2"-13, G5

4шт.

179884

BOLT,Hex, 1/2" - 13 x 1 3/8", Gr 5, Full Thd

SCREW, 1/2-13 x 1-3/8 hex-hd cap

2шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

3

480986R91

PLATE ASSY, attaching RH

2шт.

102637

NUT,1/2"-13, G5

4шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

179884

BOLT,Hex, 1/2" - 13 x 1 3/8", Gr 5, Full Thd

SCREW, 1/2-13 x 1-3/8 hex-hd cap

2шт.

4

484045R1

BRACE, center support

1шт.

16135DA

WASHER

13/32 x 1 x 4 ga

1шт.

5

484044R1

TUBE, toolbar

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

SCREW, 3/8-16 x 2 C-Z hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

1шт.

6

479885R1

BOLT, toolbar connector U

4шт.

220081

NUT

3/4-10 hex.

8шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

7

484046R1

ANGLE, toolbar attaching plate

4шт.

17448R1

BOLT (SPREADER)

BOLT, 1/2 x 1-1/4 hex-hd mach

8шт.

102637

NUT,1/2"-13, G5

8шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

SCREW, 3/8-16 x 1-1/2 C-Z hex-hd cap

3шт.

120377

NUT,3/8" - 16, Gr 5

WASHER, 3/8-16 C-Z hex.

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

3шт.
