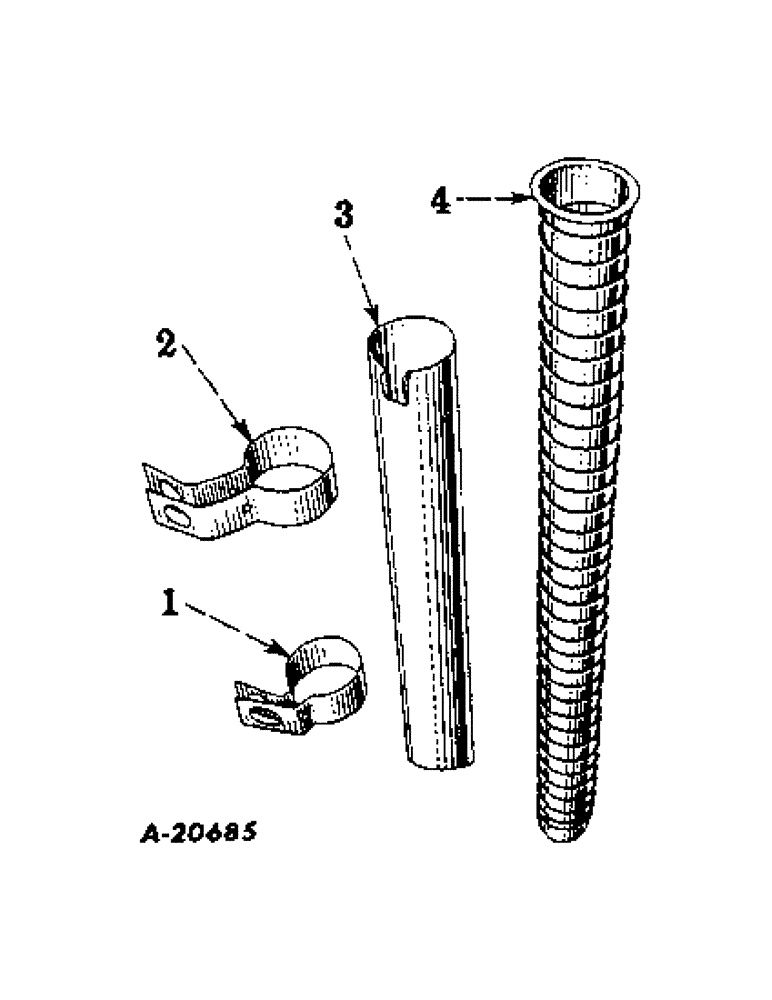

Запчасти Case IH 56-D (F-5) - CLAMP, TUBE AND SPOUT / PRODUCT GRAPHICS

1

514644R1

CLAMP, spout short

1шт.

2

514651R1

CLAMP

spout long

1шт.

NUT, no. 10 sq

2шт.

110504

SCREW,Slotted Rd Hd, #10-24 x 1"

no. 10 x 1 in. slt-rd-hd mach

2шт.

3

520769R1

TUBE

SPOUT, lower, 13-3/4 in. long, for 410 fertilzer

1шт.

3

514643R1

SPOUT, lower, 17-1/4 in. long, for 56D fertilier

1шт.

3

469074R1

SPOUT, 14-3/4 in. long, for 43 fertilizer unit

1шт.

4

512604R2

TUBE, fertilzer, 15 in. long

1шт.

BOLT, 5/16 x 3/4 in. crg

1шт.

129-419

WING NUT,5/16"-18

NUT, 5/16 in. wing

1шт.

WASHER, 11/32 x 7/8 in. x 16 ga

1шт.

2752215R1

IH, opposite the fertilizer feed spout and 3 in. below the top opening

1шт.
