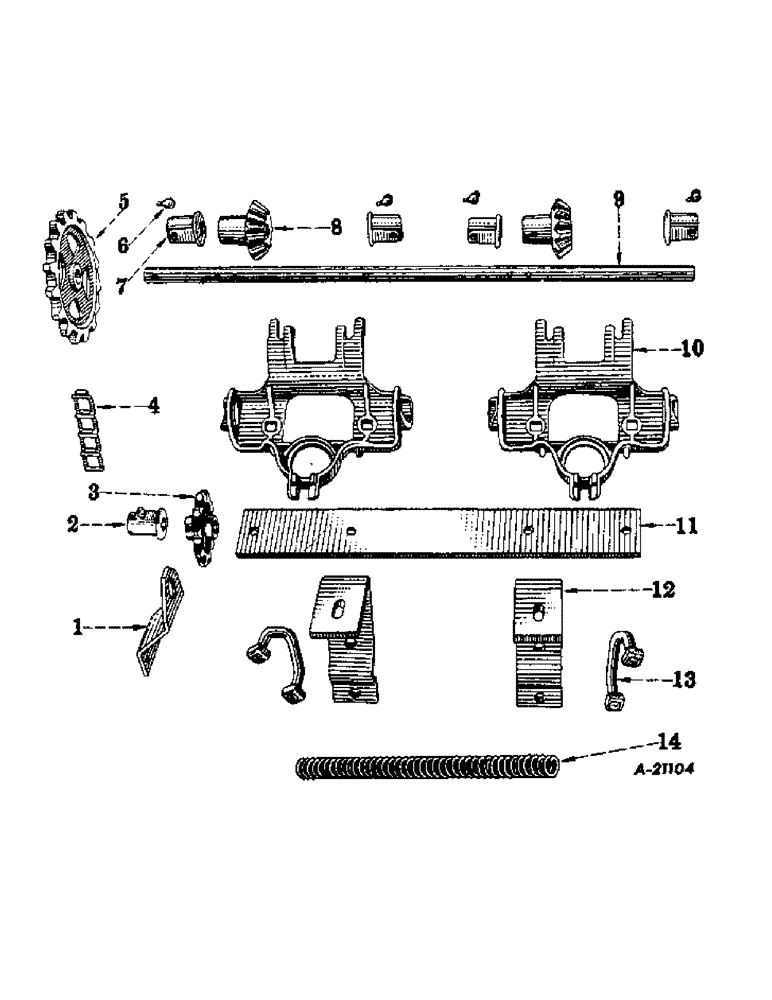

Запчасти Case IH 56-D (F-4) - HOPPER SUPPORT AND FEED SHAFT

1

514642R1

BRACKET, lister feed shaft bearing

1шт.

BOLT, 1/2 x 3-3/4 in. mach

2шт.

WASHER, 1/2 in. lock

2шт.

WASHER, 17/32 x 7/8 in. x 16 ga

2шт.

2

PO1818

BUSHING

BEARING, lister feed shaft

1шт.

3

PO2830X

SPROCKET W/SET SCREW, lister feed shaft, 10T

1шт.

102905

SET SCREW,Sq Hd, 7/16"-14 x 3/4"

SCREW, 7/16 x 3/4 in. cup-pt sq-hd set

1шт.

4

CHAIN, drive, use 34 no. 32 steel links from 10 ft roll no. CS-32

1шт.

5

PO2678AX

SPROCKET W/SET SCREW, fertilizer feed shaft, 16T

1шт.

PIN, 1/8 x 3/4 self-opening cotter

1шт.

Q3514

HEADED PIN,1/4" x 1 9/16"

PIN, 1/4 x 1-9/16 in. dld-std-hd

1шт.

102894

SET SCREW

3/8 x 3/4 in. cup-pt sq-hd set

1шт.

6

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8 in. 65 degree elbow lubrication

1шт.

7

PO2507

BEARING

fertilizer feed shaft

1шт.

8

513998R1

PINION

feed shaft, 19T

1шт.

PIN, 1/8 x 3/4 in. self-opening cotter

1шт.

Q3514

HEADED PIN,1/4" x 1 9/16"

PIN, 1/4 x 1-9/16 in. dld-std-hd

1шт.

9

514639R1

SHAFT, hopper feed

1шт.

PIN, 1/4 x 1-1/4 in. self-opening cotter

2шт.

WASHER, 25/32 x 1-1/4 in. x 16 ga

2шт.

10

513999R3

BRACKET

hopper

1шт.

BOLT, 1/2 x 1-1/2 in. crg

2шт.

WASHER, 1/2 in. lock

2шт.

11

514640R1

SEAT, hopper

1шт.

12

514641R1

SUPPORT, hopper seat

1шт.

BOLT, 1/2 x 2 in. crg

1шт.

WASHER, 1/2 in. lock

1шт.

WASHER, 17/32 x 1 in. x 16 ga

1шт.

13

514638R11

U-BOLT W/NUTS, hopper seat support

1шт.

NUT, 5/8 in.

2шт.

WASHER, 5/8 in. lock

2шт.

14

2724B

SPRING, ground drive pressure rod hold-down, 1-1/32 in. OD, 11-3/8 in. long, 34 coils

1шт.
