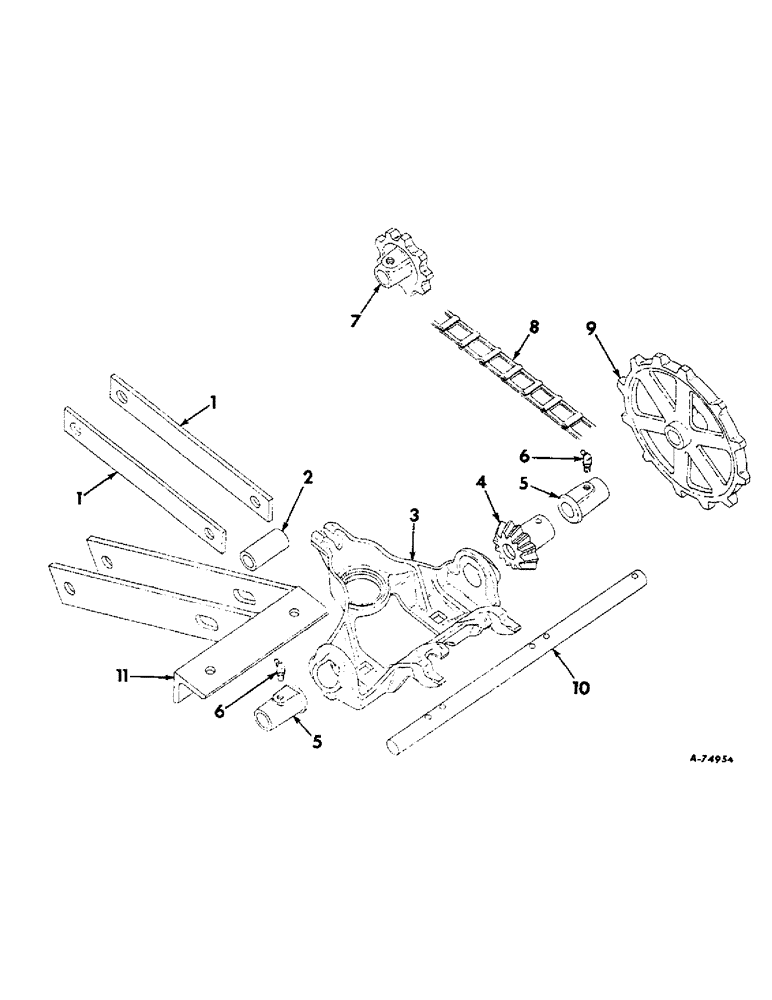

Запчасти Case IH 43 (E-3) - HOPPER DRIVE, FEED SHAFT AND SUPPORTS

1

469071R1

BRACE, hopper support

1шт.

2

469072R1

SPACER, hopper support

1шт.

BOLT W/NUT, 5/8 x 3-3/4 in. mach

1шт.

WASHER, 5/8 in. lock

1шт.

3

513999R3

BRACKET

hopper

1шт.

BOLT W/NUT, 1/2 x 1-1/4 in. crg

2шт.

WASHER, 1/2 in. lock

2шт.

4

513998R1

PINION

13T

1шт.

PIN, 1/8 x 5/8 in. self-opening cotter

1шт.

Q3514

HEADED PIN,1/4" x 1 9/16"

PIN, 1/4 x 1-9/16 in. dld-std-hd

1шт.

5

PO1818

BUSHING

BEARING, feed shaft

1шт.

6

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8 in. 65 degree elbow lubrication

1шт.

7

PO2943

SPROCKET, 9T

1шт.

102905

SET SCREW,Sq Hd, 7/16"-14 x 3/4"

SCREW, 7/16 x 3/4 in. cup-pt sq-hd set

1шт.

8

CHAIN, drive, use 45 no. 32 steel links from a 10 ft roll no. CS-32

1шт.

9

514267R1

SPROCKET, 24T

1шт.

PIN, 1/8 x 5/8 in. self-opening cotter

1шт.

Q3514

HEADED PIN,1/4" x 1 9/16"

PIN, 1/4 x 1-9/16 in. dld-stl-hd

1шт.

10

469073R1

SHAFT, feed

1шт.

PIN, 1/4 x 1-1/4 in. self-opening cotter

2шт.

Q3501

WASHER

25/32 x 1-1/4 in. x 16 ga

2шт.

11

469067R91

SUPPORT ASSY, hopper LH

1шт.

11

469068R91

SUPPORT ASSY, hopper RH

1шт.

BOLT W/NUT, 3/4 x 3-1/4 in. mach

1шт.

BOLT W/NUT, 3/4 x 3-3/4 in. mach

1шт.

WASHER, 3/4 in. lock

2шт.
