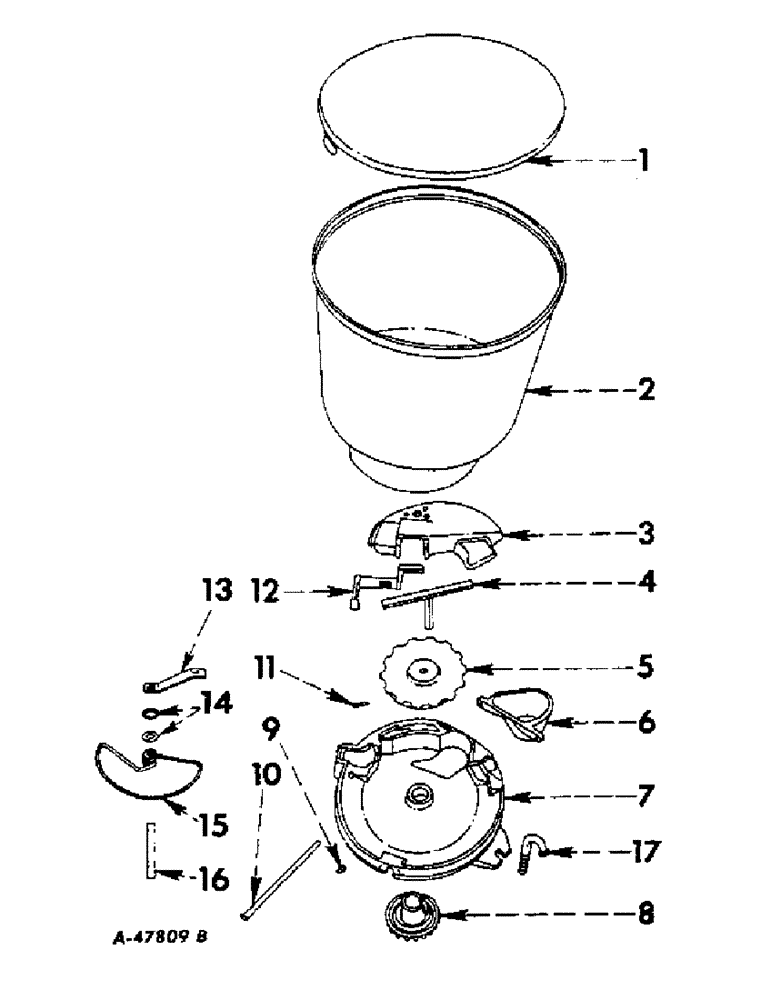

Запчасти Case IH 43 (E-2) - HOPPER
№
Артикул
Название
Примечание
Количество
1
625016R2
COVER
LID, hopper
1шт.
1
462555R1
COVER
LID, hopper fertilizer hopper, for 462554R1 hopper
1шт.
2
625286R91
HOPPER, steel, 115 lbs, capacity
1шт.
2
625017R2
HOPPER
reinforced fibre, glass, 115 lbs. capacity
1шт.
120584
SCREW, 1/4 x 3/4 in. cd-pltd slt-rd hd
3шт.
445141
NUT
1/4 in. cd-pltd spring
3шт.
625533R1
WASHER
9/32 x 1 in. x 18 ga cd-pltd
3шт.
3
625013R1
COVER ASSY
PLATE, rotary gate cover
1шт.
BOLT W/NUT, 5/16 x 3 in. mach
1шт.
WASHER, 5/16 in. lock
1шт.
4
624607R91
ACTUATOR
AGITATOR
1шт.
5
622489R11
RIM
WHEEL W/PIN, feed, light
1шт.
5
NC155X
WHEEL W/PIN, feed, special, heavy
1шт.
5
NC316X
WHEEL
W/PIN, feed, not furnished as part of fertilizer hopper, medium
1шт.
6
624600R1
PIPE CLAMP
SPOUT
1шт.
110502
SCREW,Slotted Rd Hd, #10-24 x 3/4"
no. 10 x 3/4 in. slt-rd-hd
2шт.
NUT, no. 10
2шт.
WASHER, no. 10 lock
2шт.
7
625012R11
BOTTOM
W/LUBRICATION FITTING, hopper
1шт.
BOLT, 3/8 x 1-1/2 in. carrige
1шт.
129-410
WING NUT,3/8"-16
3/8 in. wing
1шт.
WASHER, 13/32 x 3/4 in. x 16 ga
1шт.
8
3567A
GEAR
bevel, 18T
1шт.
9
125617
LUBE NIPPLE,3/16" x .61 lg, Drive
FITTING, 3/16 in. straight drive type lubrication
1шт.
10
625326R1
PIN
headed hopper bottom pivot
1шт.
PIN, 1/8 x 3/4 in. cotter
1шт.
10
467305R1
PIN
hopper bottom pivot, 1961 and since
1шт.
10
Q817
PIN
headed hopper bottom pivot, for 625013R11, 1961 and prior
1шт.
PIN, 1/8 x 3/4 in. cotter
1шт.
11
N62414
PIN,3.96mm OD x 28mm L
feed wheel drive
1шт.
12
625298R1
CHOKE
GATE. rotary
1шт.
BOLT, 5/16 x 1 in. machine
1шт.
129-419
WING NUT,5/16"-18
NUT, 5/16 in. wing
1шт.
13
626492R1
SUPPORT
RETAINER, agitator shaft, special
1шт.
PIN, 1/8 x 3/4 in. cotter
2шт.
14
WASHER, 17/32 x 1 in. x 11 ga
2шт.
15
626493R1
SPRING
AGITATOR, special
1шт.
16
626491R1
SHAFT
agitator, special
1шт.
17
623088R1
HOOK
PIN, hopper hold-down
1шт.
623084R1
WING NUT
NUT, 3/8 in. wing
1шт.
50793H
WASHER
13/32 x 7/8 in. x 11 ga
1шт.
Выбрано товаров: 41
