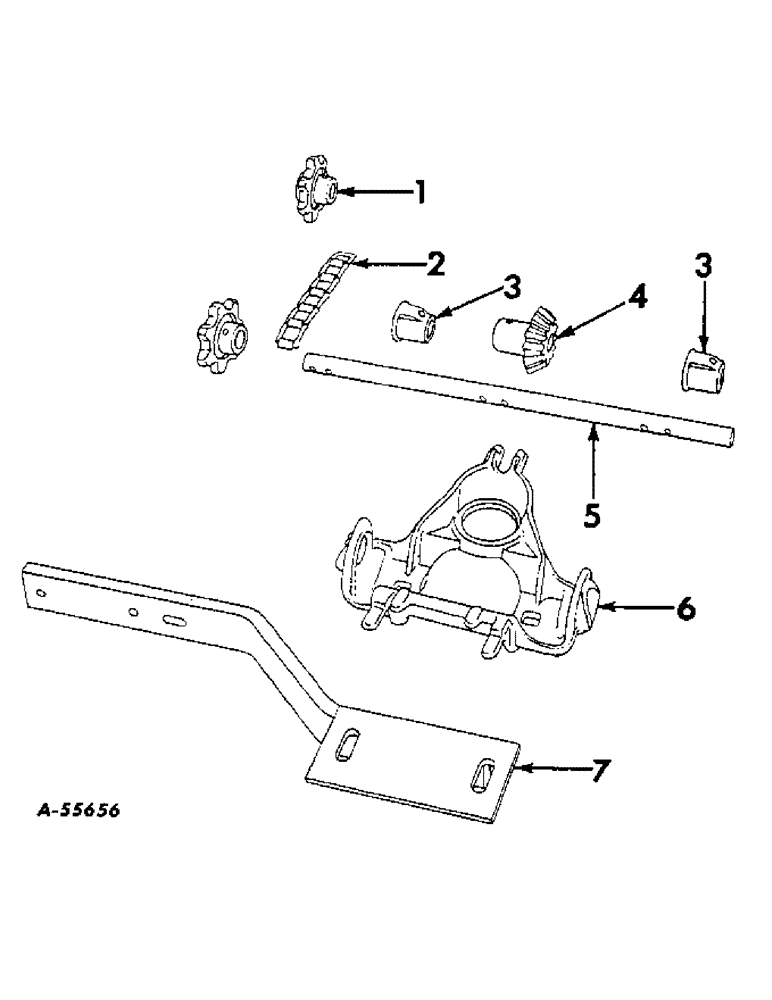

Запчасти Case IH 426 (AK-04) - HOPPER BRACKET AND FRAME EXTENSION

1

PO1763

DRIVE SPROCKET

SPROCKET, 7 tooth

1шт.

PIN, 1/4 x 1-9/16 in. headed

1шт.

PIN, 1/8 x 5/8 in. self-opening cotter

1шт.

2

CHAIN, drive, use 19 steel links from 10 foot roll no. CS-32

1шт.

3

PO2507

BEARING

feed shaft

1шт.

4

513998R1

PINION

13 tooth

1шт.

PIN, 1/4 x 1-9/16 in. headed

1шт.

PIN, 1/8 x 3/4 in. self-opening cotter

1шт.

5

527100R1

SHAFT, feed

1шт.

PIN, 1/4 x 1-1/4 in. self-opening cotter

1шт.

WASEHR, 25/32 x 1-1/4 in. x 16 ga

1шт.

6

513999R3

BRACKET

hopper

1шт.

BOLT, 1/2 x 1-1/4 in. crg

2шт.

NUT, 1/2 in.

2шт.

WASHER, 1/2 in. lock

2шт.

WASHER, 17/32 x 1 in. 16 ga

2шт.

7

527101R91

EXTENSION, frame left

1шт.

7

527102R91

EXTENSION, frame right

1шт.

SCREW, 3/8 x 3-1/2 in. cap

1шт.

NUT, 3/8 in.

1шт.

WASHER, 3/8 in. lock

1шт.

363082R1

SPACER,3/8" Pipe x .656"

3/8 x 21/32 in. std pipe

1шт.

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8 in. 65 degree elbow lubrication, in feed shaft bearing, not illustrated

1шт.
