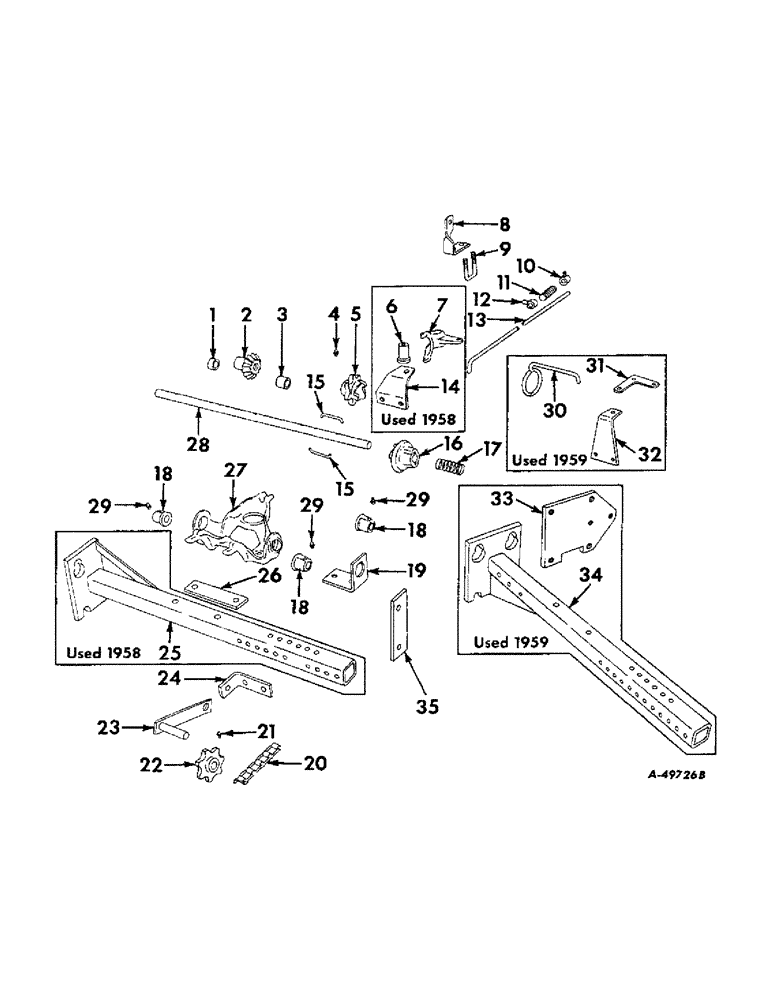

Запчасти Case IH 426 (AK-03) - HOPPER SUPPORT AND DRIVE

1

PO10780

SPACER,3/4" Pipe x 7/16"

3/4 x 7/16 in. pipe, between pinion and bearing

1шт.

2

513998R1

PINION

13 tooth drive

1шт.

PIN, 1/8 x 3/4 in. self opening cotter

1шт.

Q3514

HEADED PIN,1/4" x 1 9/16"

PIN, 1/4 x 1-9/16 in. dld-std-hd

1шт.

3

PO17652

SPACER, 3/4 x 3/4 in. pipe, between cotter and bearing

1шт.

4

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

5

512162R1

SPROCKET ASSY.

SPROCKET, clutch left, 7-T

1шт.

5

512161R1

SPROCKET ASSY.

SPROCKET, clutch right, 7-T

1шт.

6

PO1801

PIVOT, throw-out yoke, used 1958

1шт.

7

PO2099

YOKE, clutch throw-out, used 1958

1шт.

BOLT, 3/8 x 2-1/2 in. mach

1шт.

WASHER. 3/8 in. lock WASHER, 13/32 x 1 in. x 16 ga

1шт.

8

523580R2

BRACKET, throw-out rod

1шт.

9

512357R11

U-BOLT W/NUTS, throw-out bracket

1шт.

NUT, 3/8 in.

2шт.

WASHER, 3/8 in. lock

1шт.

10

514547R11

COLLAR CLAMP

COLLAT W/SET SCREW, throw-out rod

1шт.

102881

SET SCREW,Sq Hd, 5/16"-18 x 1/2"

SCREW, 5/16 x 1/2 in. cup-pt sq-hd set

1шт.

11

11100D

SPRING

throw out rod

1шт.

12

PO2437

PIVOT

SWIVEL, throw-out rod

1шт.

PIN, 1/8 x 3/4 in. self-opening cotter

1шт.

13

523579R3

ROD, throw-out

1шт.

PIN, 1/8 x 3/4 in. self-opening cotter

1шт.

512353R1

PIN, quick-attachable cotter

1шт.

14

524931R1

PIVOT, throw-out yoke left, used 1958

1шт.

14

524932R1

PIVOT, throw-out yoke right, used 1958

1шт.

15

PO23196

KEY

feed shaft

1шт.

16

PO1933A

CLUTCH

left drive

1шт.

16

PO2097A

CLUTCH

right drive

1шт.

17

PO125

SPRING

clutch

1шт.

18

PO2507

BEARING

feed shaft

1шт.

19

524933R2

BRACKET, feed shaft bearing

1шт.

BOLT, 3/8 x 2-1/4 in. mach

1шт.

WASHER, 3/8 in. lock

1шт.

20

CHAIN, main drive, use 108 no. 32 steel links from 10 ft roll no. CS-32

1шт.

21

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 in. drive type straight lubrication

1шт.

22

PO3089

DRIVE SPROCKET

SPROCKET, 7 tooth idler

1шт.

23

518397R91

LEVER

ARM, chain tightener

1шт.

BOLT, 1/2 x 1-1/4 in. mach

1шт.

PIN, 3/16 x 1 in. self-opening cotter

1шт.

WASHER, 1/2 in. lock

1шт.

24

524930R1

BRACKET, chain tightener

1шт.

BOLT, 3/8 x 3-1/4 in. mach

2шт.

WASHER, 3/8 in. lock

2шт.

25

254937R91

FRAME, left hopper mounting, used 1958

1шт.

25

524938R91

FRAME, right hopper mounting, used 1958

1шт.

SCREW, 3/4 x 1-1/2 in. cap

4шт.

26

524929R1

PLATE, spacer

1шт.

27

513999R3

BRACKET

hopper

1шт.

BOLT, 1/2 x 3-1/4 in. crg

2шт.

WASHER, 1/2 in. lock

2шт.

28

524927R1

SHAFT, feed

1шт.

PIN, 1/4 x 1-1/4 in. self-opening cotter

2шт.

WASHER, 25/32 x 1-1/4 in. x 16 ga

2шт.

29

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8 in. 65 degree elbow lubrication

1шт.

30

526930R1

LOOP, throw-out, used 1959 and since

1шт.

30

526931R1

LOOP, right throw-out, used 1959 and since, order 526930R1

1шт.

PIN, 1/8 x 3/4 in. self-opening cotter

1шт.

31

PO27788

BELLCRANK, throw-out, used 1959 and since

1шт.

BOLT, 3/8 x 1-1/4 in. mach

1шт.

NUT, 3/8 in.

1шт.

WASHER, 3/8 in. lock

1шт.

WASHER, 13/32 x 1 in. x 16 ga

1шт.

32

526935R1

BRACKET, left throw-out, used 1959 and since

1шт.

32

526936R1

BRACKET, right throw-out, used 1959 and since

1шт.

33

526950R1

PLATE, frame adapter, used 1959 and since, for farmall 240, 340 and 400 tractors

1шт.

SCREW, 5/8 x 1-1/2 in. cap, farmall 240, 340 and 404 tractors

1шт.

SCREW, 5/8 x 1-1/2 in. cap, farmall 240 and 404 tractors

3шт.

WASHER, 21/32 x 1-1/4 in. x 16 ga

1шт.

34

526949R91

FRAME, hoper mounting, used 1959 and since

1шт.

SCREW, 3/4 x 1-1/2 in. cap

2шт.

35

469442R1

SPACER, plate, 1962 and since

1шт.

SCREW, 3/4 x 3-1/2 in. cap

2шт.
