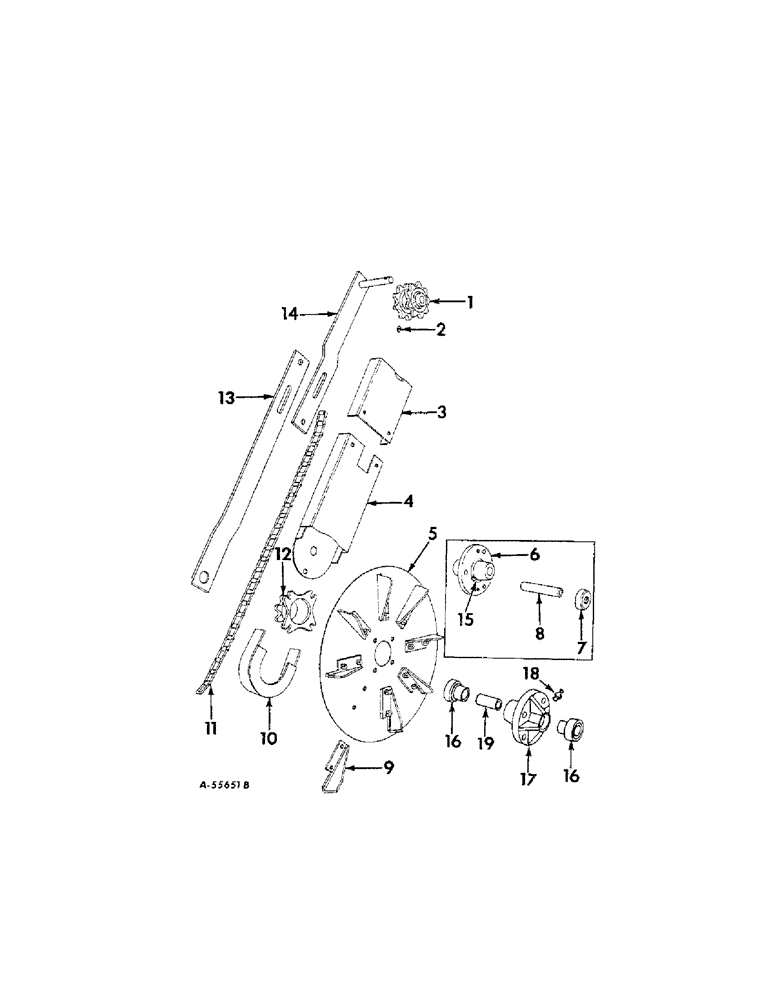

Запчасти Case IH 422 (X-06[A]) - ROLLING GUIDE FIN AND CHAIN SHIELD

1

526471R1

SPROCKET, countershaft double

1шт.

2

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

3

526486R1

EXTENSION, chain shield

1шт.

BOLT, 1/4 x 3/4 in. crg

1шт.

NUT, 1/4 in.

1шт.

WASHER, 1/4 in. lock

1шт.

WASHER, 9/32 x 5/8 in. x 16 ga

1шт.

4

526492R91

SHIELD ASSY, chain, Serial Range: 1959-1964

1шт.

4

478437R91

SHIELD ASSY, chain, 1964 and since

1шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 in. mach

1шт.

Q1504

WASHER

13/32 x 7/8 in. x 16 ga

1шт.

105606

NUT

3/8 in. sq

1шт.

5

523084R1

DISC

BLADE, rolling fin, Serial Range: 1957-1964

1шт.

5

521950R1

FIN

BLADE, rolling fin, 1956

1шт.

BOLT, 5/16 x 1-1/4 in. mach

4шт.

NUT, 5/16 in.

4шт.

WASHER, 5/16 in. lock

4шт.

557265R1

WASHER

11/32 x 1 in. x 11 ga

4шт.

5

478436R1

DISC

BLADE, rolling fin, 1964 and since

1шт.

NUT, 3/8 in.

4шт.

SCREW, 3/8 x 1-1/4 in. cap

4шт.

WASHER, 3/8 in. lock

4шт.

575807R1

WASHER

13/32 x 1 in. x 11 ga

4шт.

6

464744R11

HUB ASSY.

HUB W/FITTING, rolling guide fin, 1961 and 1964

1шт.

BOLT, 5/8 x 8 in. mach

1шт.

NUT, 5/8 in.

1шт.

WASHER, 5/8 in. lock

1шт.

Q5036

WASHER

1-1/32 x 1-3/4 in. x 16 ga

2шт.

6

516564R31

HUB

W/FITTING, blade, Serial Range: 1959-1961

1шт.

BOLT, 5/8 x 8-1/2 in. mach

1шт.

NUT, 5/8 in.

1шт.

WASHER, 5/8 in. lock

1шт.

WASHER, 21/32 x 1-1/4 in. x 16 ga

1шт.

7

521949R1

WASHER

COLLAR, sand, Serial Range: 1959-1964

1шт.

8

521948R1

BUSHING

hub, Serial Range: 1959-1964

1шт.

9

523256R2

LUG, driving

1шт.

18674R1

BOLT,Short NK, 5/16"-18 x 1 1/2", G2

5/16 x 3/4 in. C-Z mach

2шт.

120376R1

WASHER

NUT, 5/16 in. C-Z

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

10

524785R91

END ASSY, chain guard, Serial Range: 1959-1964

1шт.

BOLT, 3/8 x 3/4 in. mach

1шт.

WASHER, 3/8 in. lock

1шт.

10

478439R91

GUARD

ASSY, chain, 1964 and since

1шт.

SCREW, 3/8 x 3/8 in. cap

1шт.

WASHER, 3/8 in. lock

1шт.

11

CHAIN, drive, use 69 no. 32 steel links from 10 ft roll no. CS-32

1шт.

12

523245R2

SPROCKET, drive, 9-T, Serial Range: 1959-1964

1шт.

SCREW, 5/16 x 1-1/2 in. cap

4шт.

NUT, 5/16 in.

4шт.

WASHER, 5/16 in. lock

4шт.

12

478441R1

SPROCKET, drive, 10-T, 1964 and since

1шт.

634979R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2"

BOLT, 3/8 x 1-1/2 in. sq-nk type 2 crg

4шт.

NUT, 3/8 in.

4шт.

WASHER, 3/8 in. lock

4шт.

13

526482R1

SPREADER, lower

1шт.

14

526481R11

SPREADER, upper

1шт.

15041R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1 1/2"

BOLT, 1/2 x 1-1/2 in. sq-nk crg

2шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

WASHER, 17/32 x 1-1/4 in. x 16 ga

1шт.

15

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 in. straight drive-type lubrication, 1959 to 1964

1шт.

16

478434R91

BEARING

ASSY, ball, 1964 and since

2шт.

17

478433R1

HUB

roller guide fin, 1964 and since

1шт.

18

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28NF2 straight lubrication, in hub, 1964 and since

1шт.

19

478435R1

SPACER

bearing, 1964 and since

1шт.
