Запчасти Case IH 412 (AH-7[A]) - CHAIN TIGHTENER, 1957 TO 1965

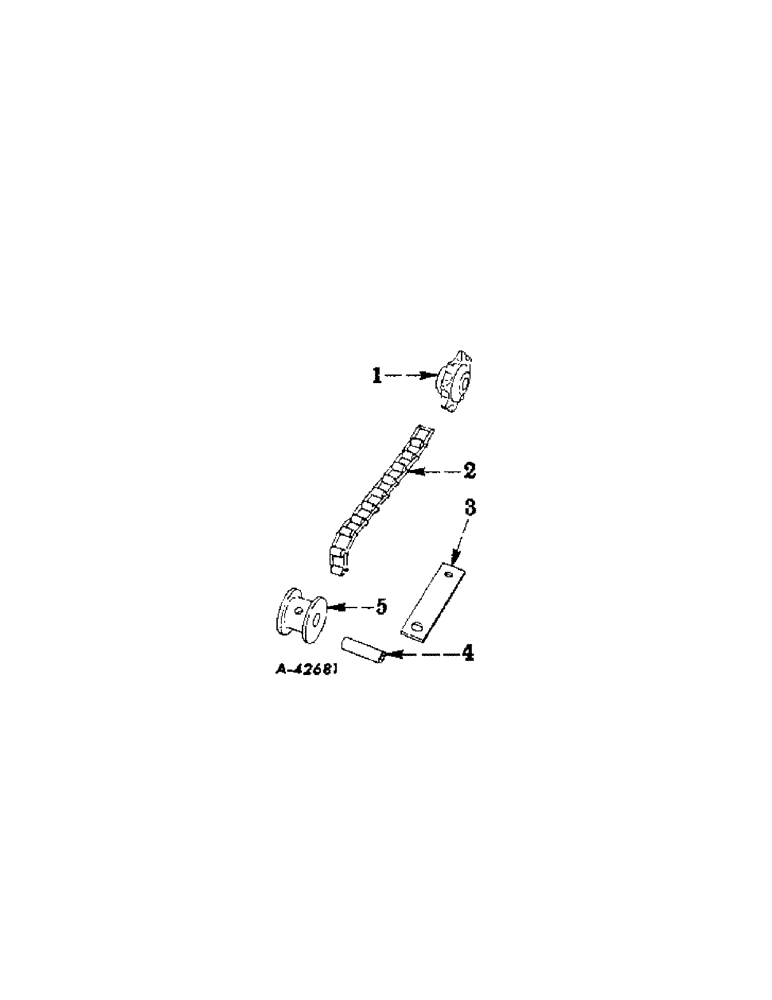

Схема запчастей Case IH 412 - (AH-7[A]) - CHAIN TIGHTENER, 1957 TO 1965
2
1
5
4
3

Артикул

Название

Примечание

Количество

1

PO575AX

SPROCKET ASSY.

SPROCKET W/SET SCREW, countershaft

1шт.

PIN, 1/8 x 3/4 in. self-opening cotter

1шт.

Q3527

PIN, 1/4 x 1-15/16 in. dld-std-hd

1шт.

SCREW, 3/8 x 5/8 in. cup-pt sq-hd set

1шт.

2

CHAIN, drive, use 20 no. 32 steel links from 10 ft. roll no. CS-32

1шт.

3

522212R1

ARM, chain tightener

1шт.

BOLT, 5/16 x 2-1/2 in. mach

1шт.

WASHER, 5/16 in. lock

1шт.

WASHER, 11/32 x 1 x 16 ga

1шт.

4

P2066

BUSHING, chain tightener roller

1шт.

5

P168W

ROLLER, chain tightener

1шт.

Выбрано товаров: 11
