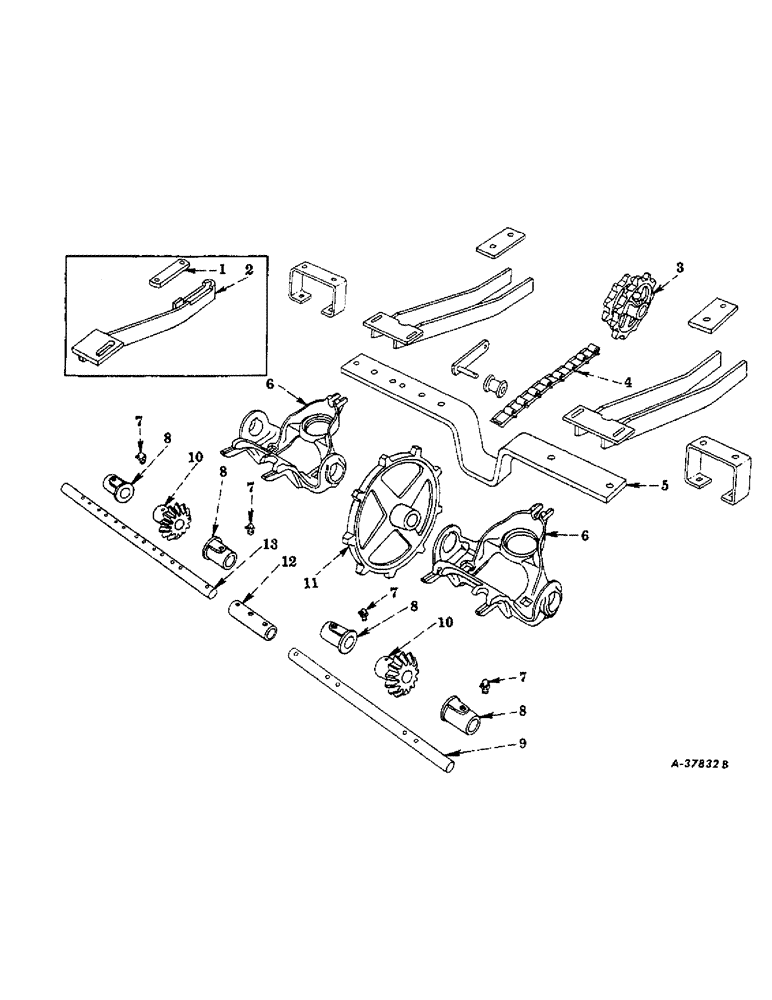

Запчасти Case IH 410 (AG-6) - HOPPER BRACKETS AND HOPPER SUPPORTS

1

520337R1

CLIP, hopper support arm, Serial Range: 1958-1963

1шт.

2

520767R91

ARM, hopper support left, Serial Range: 1958-1963

1шт.

BOLT, 1/2 x 6-1/4 in. mach

2шт.

WASHER, 1/2 in. lock

2шт.

WASHER, 17/32 x 1-1/4 in. x 16 ga

2шт.

2

520768R91

ARM, hopper support right, Serial Range: 1958-1963

1шт.

BOLT, 1/2 x 5-3/4 in. mach

2шт.

WASHER, 1/2 in. lock

2шт.

WASHER, 17/32 x 1-1/4 in. x 16 ga

2шт.

3

514784R11

SPROCKET W/SET SCREW, double drive, 8 and 11-T

1шт.

SCREW, 1/2 x 3/4 in. cup-pt sq-hd set

1шт.

4

CHAIN, drive, use 33 no. 55 steel links from 10 ft roll no. CS-55

1шт.

5

520764R1

SUPPORT, hopper

1шт.

6

513999R3

BRACKET

hopper

1шт.

BOLT, 1/2 x 2 in. crg

2шт.

NUT, 1/2 in.

2шт.

WASHER, 1/2 in. lock

2шт.

WASHER, 17/32 x 1-1/4 in. x 16 ga

2шт.

7

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8 in. 65 degree elbow lubrication

1шт.

8

PO1818

BUSHING

BEARING, feed shaft

1шт.

9

520763R1

SHAFT, short feed

1шт.

PIN, 1/4 x 1-1/4 in. self-opening cotter

2шт.

WASHER, 25/32 x 1-1/4 in. x 16 ga

2шт.

10

513998R1

PINION

feed shaft

1шт.

PIN, 1/8 x 3/4 in. self-opening cotter

1шт.

Q3514

HEADED PIN,1/4" x 1 9/16"

PIN, 1/4 x 1-9/16 in. dld-std-hd

1шт.

11

PO1945A

SPROCKET, drive, 18-T

1шт.

PIN, 1/8 x 3/4 in. cotter

1шт.

Q663

HEADED PIN,5/16" x 1 7/8"

PIN, 5/16 x 1-7/8 in. dld-std-hd

1шт.

12

514786R1

HUB

1шт.

PIN, 1/4 x 1-1/4 in. self-opening cotter

2шт.

13

520762R1

SHAFT, long feed

1шт.

PIN, 1/4 x 1-1/4 in. self-opening cotter

2шт.

WASHER, 25/32 x 1-1/4 in. x 16 ga

2шт.

14

525024R1

CLIP, hopper support bracket, 1964 and since

2шт.

SCREW, 5/8 x 5-1/4 in. cap

2шт.

SCREW, 5/8 x 5-3/4 in. cap

2шт.

WASHER, 5/8 in. lock

4шт.

15

477145R91

BRACKET ASSY, hopper support, 1964 and since

1шт.

16

477662R1

SUPPORT, hopper, note A

2шт.

BOLT, 1/2 x 1-1/4 in. sq-nk crg

4шт.

NUT, 1/2 in.

4шт.

WASHER, 1/2 in. lock

4шт.

17

477658R91

LEVER ASSEMBLY, chain tightener, note A

1шт.

NUT, 1/2 in.

1шт.

SCREW, 1/2 x 1-1/2 in. cap

1шт.

PIN, 3/16 x 1 in. cotter

1шт.

WASHER, 1/2 in. lock

1шт.

18

PO2585

ROLLER, chain, note A

1шт.
