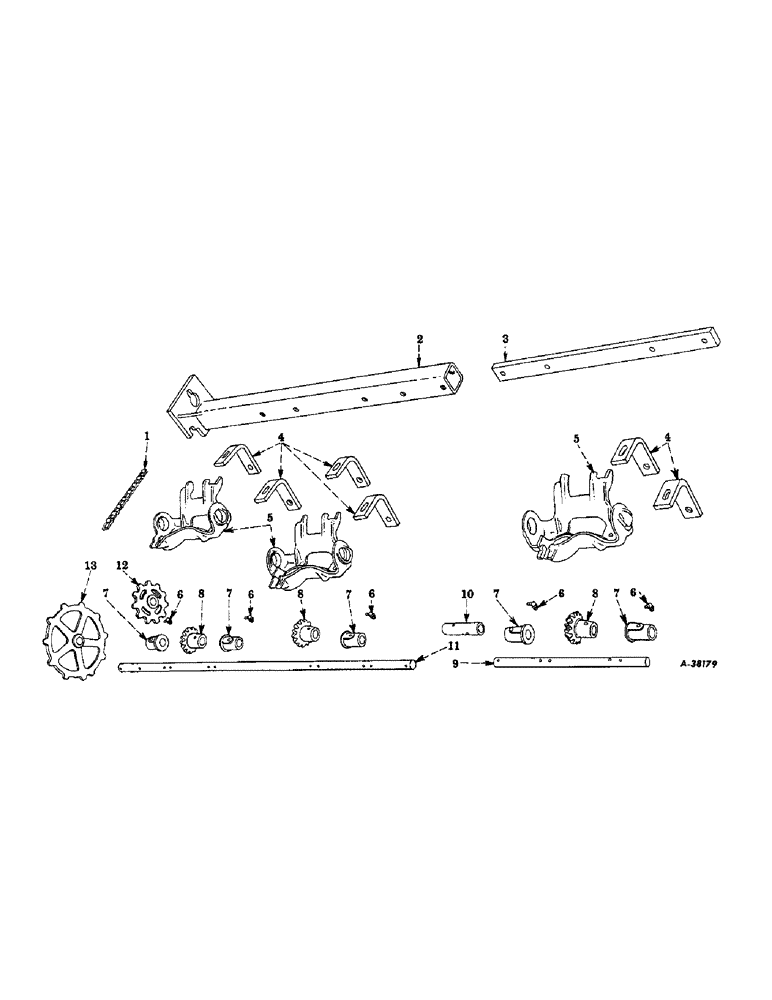

Запчасти Case IH 409 (AF-07) - HOPPER SUPPORT AND DRIVE UNIT

1

CHAIN, drive, use 88 No. 32 steel links from 10 ft roll No. CS-32

1шт.

2

520865R92

FRAME, left hopper

1шт.

2

520866R92

FRAME, right hopper

1шт.

PO25842A

BOLT

5/8 x 1-1/4 in. conical-hd cap

1шт.

3

519390R1

EXTENSION, hopper frame, Serial Range: 1955-1956

1шт.

3

523704R1

EXTENSION, hopper frame, 1957 and since

1шт.

4

515207R2

SUPPORT, hopper bracket

1шт.

BOLT, 1/2 x 1-3/4 in. mach

1шт.

BOLT, 1/2 x 2 in. mach

1шт.

BOLT, 1/2 x 3-3/4 in. mach

1шт.

WASHER, 1/2 in. lock

1шт.

5

513999R3

BRACKET

hopper

1шт.

BOLT, 1/2 x 1-1/2 in. crg

1шт.

WASHER, 1/2 in. lock

1шт.

WASHER, 17/32 x 1-1/4 in. x 16 ga

1шт.

6

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8 in. 65 degree elbow lubrication

1шт.

7

PO1818

BUSHING

BEARING, hopper shaft

1шт.

8

513998R1

PINION

13 teeth

1шт.

PIN, 1/8 x 5/8 in. self-opening cotter

1шт.

Q3514

HEADED PIN,1/4" x 1 9/16"

PIN, 1/4 x 1-9/16 in. dld-std-hd

1шт.

9

519382R1

SHAFT, outer hopper

1шт.

10

519393R1

COUPLING, hopper shaft, Serial Range: 1955-1956

1шт.

10

523707R1

COUPLING, hopper shaft, 1957 and since

1шт.

PIN, 1/8 x 5/8 in. self-opening cotter

2шт.

PIN, 1/4 x 1-3/8 in. headed

2шт.

11

520867R1

SHAFT, inner hopper

1шт.

PIN, 1/4 x 1-1/4 in. self-opening cotter

10шт.

WASHER, 25/32 x 1-1/4 in. x 16 ga

10шт.

12

PO2938A

SPROCKET, hopper shaft, 11T

1шт.

13

514925R1

SPROCKET, hopper shaft, 21T

1шт.

PIN, 1/8 x 5/8 in. self-opening cotter

1шт.

Q3514

HEADED PIN,1/4" x 1 9/16"

PIN, 1/4 x 1-9/16 in. dld-std-hd

1шт.
