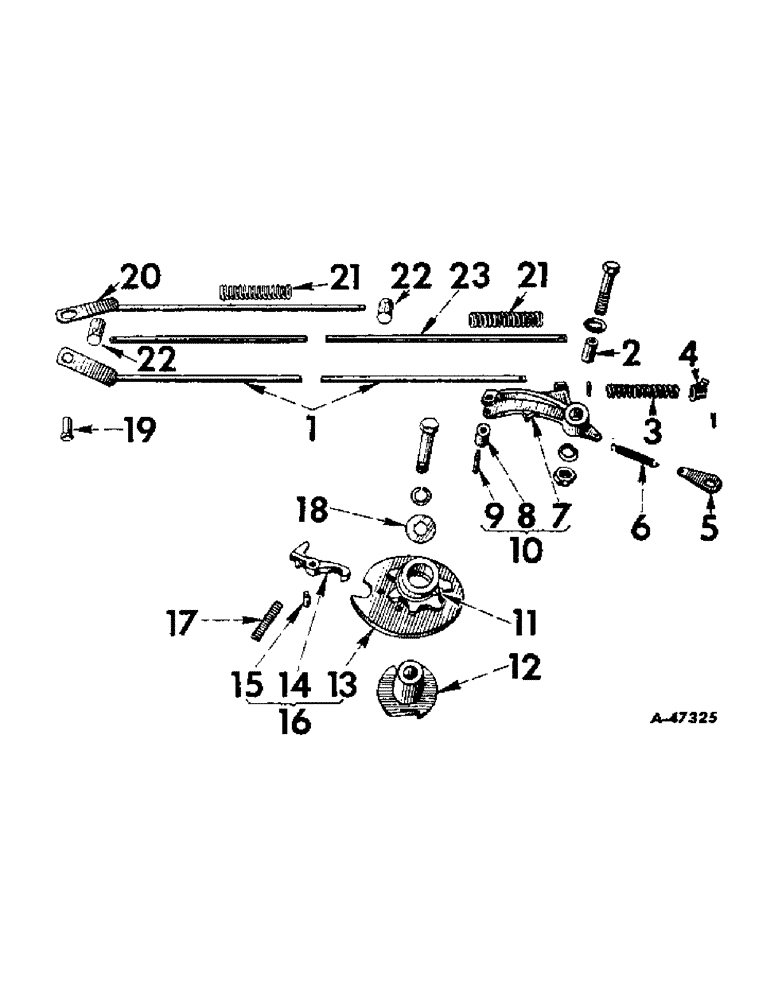

Запчасти Case IH 409 (AF-06) - DRIVE AND THROW-OUT UNIT

1

622153R92

ROD, throw-out, Serial Range: prior-1957

1шт.

PIN, 1/8 x 3/4 in. self-opening cotter

1шт.

WASHER, 13/32 x 1 in. x 16 ga

1шт.

2

622151R1

BUSHING, stop pawl

1шт.

3

2232A

SPRING, throw-out rod, 55/64 in. OD, 4 in. long, 14 coils

1шт.

4

PO2593X

COLLAR

W/SET SCREW

1шт.

102892

SET SCREW

3/8 x 1/2 in. cup-pt sq-hd set

1шт.

5

622149R1

CLIP, stop pawl spring

1шт.

6

622152R1

SPRING

stop pawl, 15/32 in. OD, 2-3/4 in. long, 25 coils

1шт.

7

PAWL, stop, order stop pawl assembly ref. No. 10

1шт.

8

622148R1

ROLLER, stop pawl

1шт.

9

622147R1

PIN, stop pawl roller shoulder

1шт.

10

622141R11

PAWL W/ROLLER, left stop

1шт.

10

622142R11

PAWL W/ROLLER, right stop

1шт.

NUT, 5/8 in.

2шт.

SCREW, 5/8 x 3-1/4 in. cap, right brake

2шт.

SCREW, 5/8 x 4-1/4 in. cap, left brake

2шт.

WASHER, 5/8 in. lock

2шт.

WASHER, 21/32 x 1-1/4 in. x 16 ga

2шт.

11

109458

FITTING, 5/16 in. drive type straight lubrication

1шт.

12

622144R1

RATCHET, drive left

1шт.

12

622145R1

RATCHET, drive right

1шт.

13

622139R11

HOUSING AND SPROCKET W/FITTING, left

1шт.

13

622140R11

HOUSING AND SPROCKET W/FITTING, right

1шт.

SCREW, 5/8 x 3-3/4 in. cap

2шт.

WASHER, 5/8 in. lock

2шт.

14

622143R1

PAWL

drive

1шт.

15

516071R1

PIN, drive pawl shoulder

1шт.

16

622154R91

SPROCKET AND HOUSING W/DRIVE PAWL, left

1шт.

16

622155R91

SPROCKET AND HOUSING W/DRIVE PAWL, right

1шт.

17

13617A

SPRING

drive pawl, 17/32 in. OD, 2-1/8 in. long, 20 coils

1шт.

18

622150R1

WASHER, lug

1шт.

19

515041R1

PIN, tractor lift arm, Serial Range: prior-1957

1шт.

20

523664R11

ROD, front throw-out, 1957 and since

1шт.

PIN, 1/8 x 3/4 in. self-opening cotter

1шт.

21

523677R1

SPRING

rear throw-out rod, 1957 and since

1шт.

22

523663R11

COLLAR W/SET SCREW, throw-out rod, 1957 and since

1шт.

102881

SET SCREW,Sq Hd, 5/16"-18 x 1/2"

SCREW, 5/16 x 1/2 in. cup-pt-sq-hd set

1шт.

23

523665R1

ROD, rear throw-out, 1957 and since

1шт.

PIN, 1/8 x 3/4 in. self-opening cotter

1шт.

WASHER, 13/32 x 7/8 in. x 16 ga

1шт.
