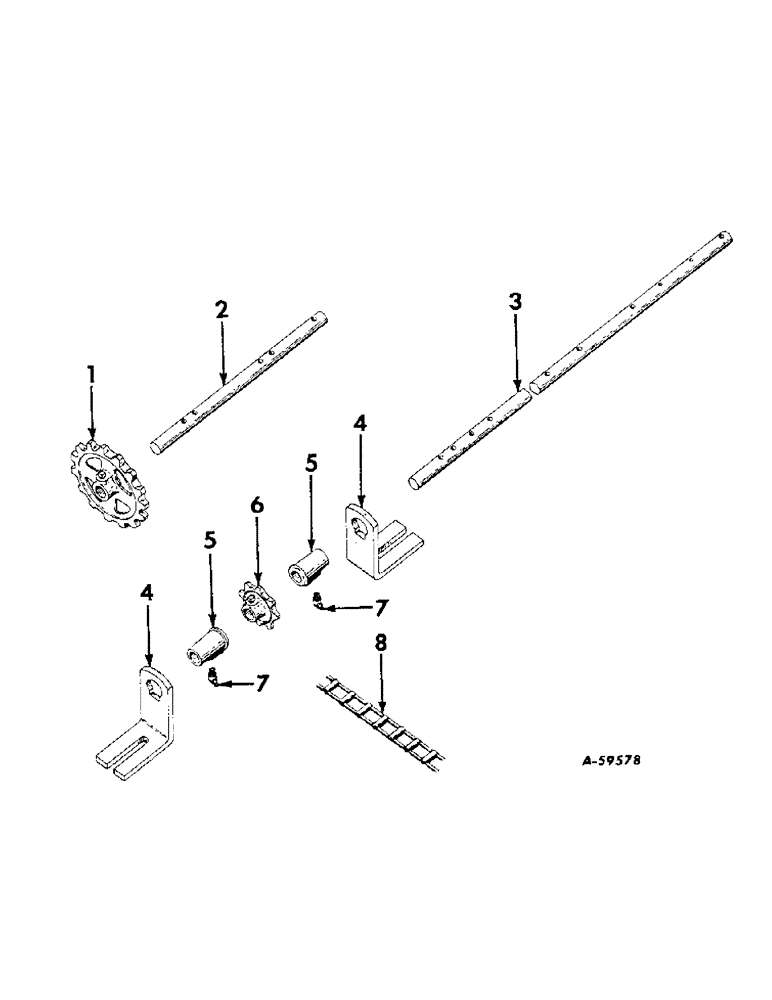

Запчасти Case IH 400 (AD-5) - COUNTERSHAFT

1

PO2678AX

SPROCKET W/SET SCREW, feed shaft, 16T

1шт.

PIN, 1/8 x 5/8 in. cotter

1шт.

Q3514

HEADED PIN,1/4" x 1 9/16"

PIN, 1/4 x 1-9/16 in. dld-std-hd

1шт.

2

461919R1

SHAFT, fertilizer feed outside

1шт.

3

461920R1

SHAFT, counter

1шт.

4

517224R1

SUPPORT, bearing

1шт.

BOLT W/NUT, 1/2 x 3-1/2 in. hex-hd mach

2шт.

WASHER, 1/2 in. lock

2шт.

WASHER, 17/32 x 1-1/4 in. x 16 ga

2шт.

5

PO1818

BUSHING

BEARING

1шт.

6

PO575AX

SPROCKET ASSY.

SPROCKET W/SET SCREW, countershaft, 8T

1шт.

PIN, 1/8 x 3/4 in. cotter

1шт.

Q3514

HEADED PIN,1/4" x 1 9/16"

PIN, 1/4 x 1-9/16 in. dld-std-hd

1шт.

7

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8 in. x 65 degree elbow lubrication

1шт.

8

CHAIN, hopper drive, use 26 No. 32 steel links from 10 ft roll No. CS-32

1шт.

CHAIN, extra links, use 4 No. 32 steel links from 10 ft roll No. CS-32

1шт.
