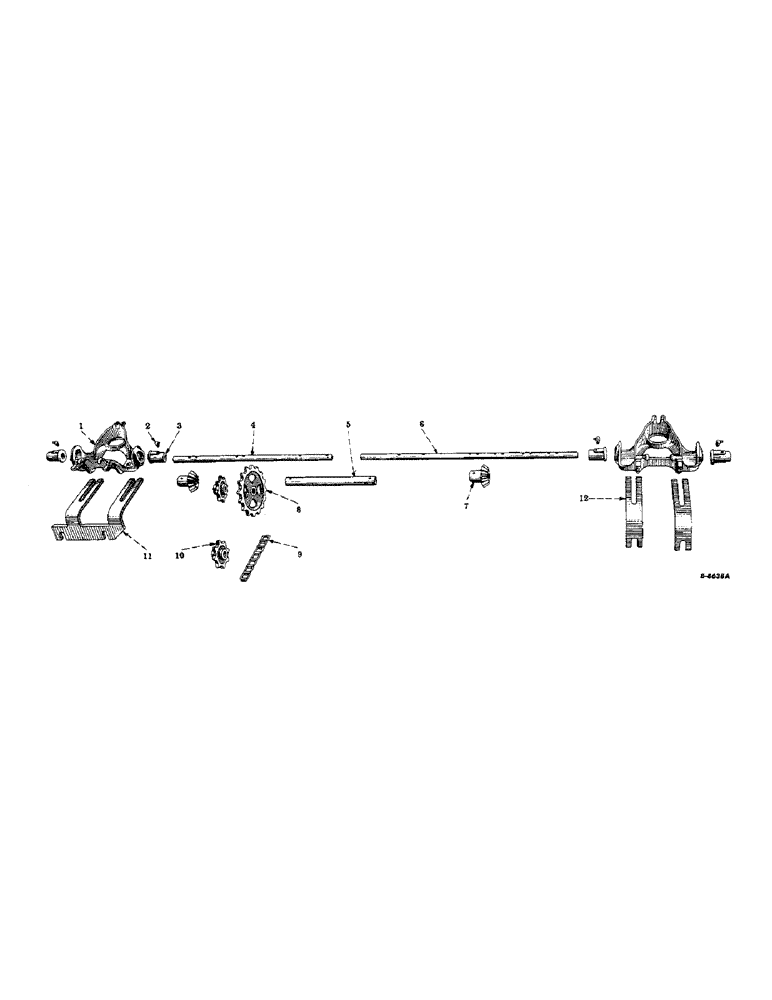

Запчасти Case IH 400 (AD-4) - HOPPER DRIVE

1

513999R3

BRACKET

hopper

1шт.

BOLT, 1/2 x 1-1/2 in. crg

2шт.

WASHER, 1/2 in. lock

2шт.

WASHER, 17/32 x 1-1/4 in. x 16 ga

1шт.

2

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8 in. 65 degree elbow lubrication

1шт.

3

PO1818

BUSHING

BEARING, feed shaft

1шт.

4

520690R1

SHAFT, inside feed

1шт.

PIN, 1/4 x 1-1/4 in. self-opening cotter

2шт.

WASHER, 25/32 x 1-1/4 in. x 16 ga

2шт.

5

517234R1

COUPLING, feed shaft

1шт.

PIN, 1/8 x 3/4 in. self-opening cotter

2шт.

Q711

HEADED PIN,1/4" x 1 1/4"

PIN, 1/4 x 1-1/4 in. dld-std-hd

2шт.

6

517249R1

SHAFT, outside feed

1шт.

PIN, 1/4 x 1-1/4 in. self-opening cotter

2шт.

WASHER, 25/32 x 1-1/4 in. x 16 ga

2шт.

7

513998R1

PINION

drive, 13T

1шт.

PIN, 1/8 x 3/4 in. self-opening cotter

1шт.

Q3514

HEADED PIN,1/4" x 1 9/16"

PIN, 1/4 x 1-9/16 in. dld-std-hd

1шт.

8

PO2678AX

SPROCKET W/SET SCREW, feed shaft, 16T

1шт.

PIN, 1/8 x 5/8 in. self-opening cotter

1шт.

Q3514

HEADED PIN,1/4" x 1 9/16"

PIN, 1/4 x 1-9/16 in. dld-std-hd

1шт.

9

CHAIN, hopper drive, use 26 No. 32 steel links from 10 ft roll No. CS-32

1шт.

10

PO575AX

SPROCKET ASSY.

SPROCKET W/SET SCREW, countershaft, 8T

1шт.

PIN, 1/8 x 3/4 in. self-opening cotter

1шт.

Q3514

HEADED PIN,1/4" x 1 9/16"

PIN, 1/4 x 1-9/16 in. dld-std-hd

1шт.

11

520691R91

SUPPORT, left inside hopper

1шт.

11

520692R91

SUPPORT, right inside hopper

1шт.

12

517250R1

SUPPORT, outside hopper

1шт.
