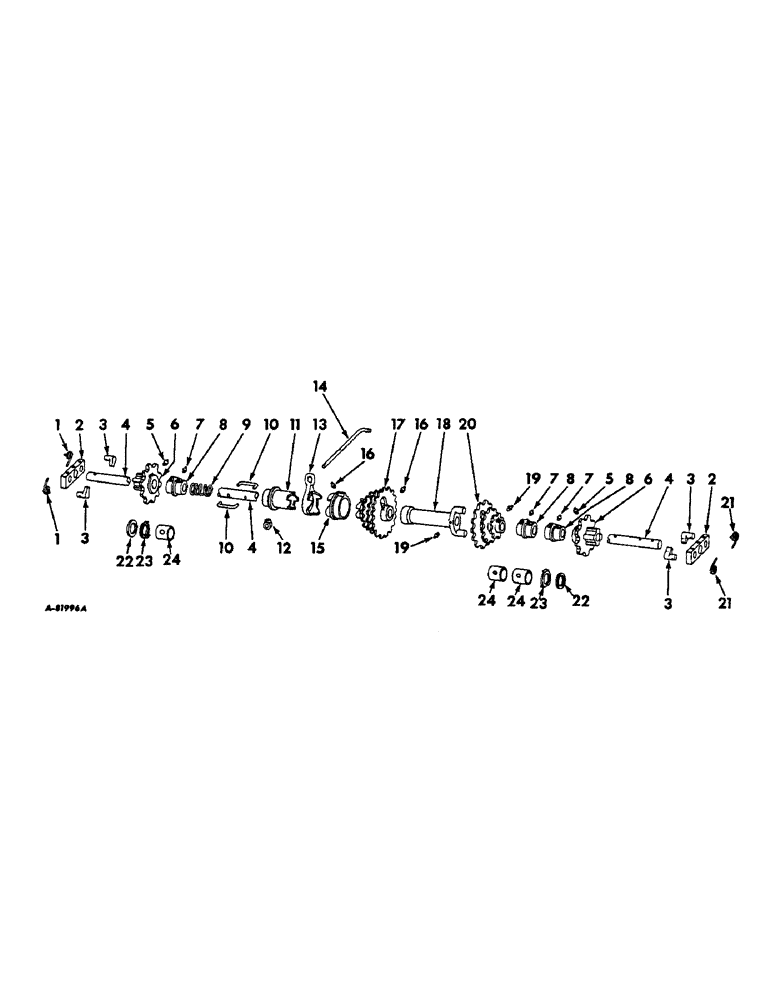

Запчасти Case IH 400 (K-04) - DRIVE UNIT

1

472721R1

SPRING

wheel ratchet LH

2шт.

2

472328R1

CARRIER

pawl

2шт.

21835R1

HEADED PIN,5/16" x 1 3/4"

PIN, 5/16 x 1-3/4 C-Z std-hd

2шт.

21630R1

COTTER PIN

PIN, 1/8 x 1 C-Z self-opening cot.

2шт.

3

472329R1

PAWL

drive sprocket

4шт.

137190

PIN,1/8" x 1 1/8"

1/8" x 1-1/8"

4шт.

4

479141R1

SHAFT

main drive, order one 481811R1, one 481812R11 and one 66584D, 1965 only

1шт.

4

481811R1

ROD

SHAFT, main drive, 1966 and since

1шт.

21636R1

PIN, 1/4 x 1-1/2 C-Z self-opening cot.

2шт.

5

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 NF 2 str lub, in main wheel driven sprocket

2шт.

6

479140R1

DRIVE SPROCKET

SPROCKET, main wheel driven, 10T

2шт.

7

443567

LUBE NIPPLE,1/4" x .56 lg, Drive

FITTING, 1/4 drive type str lub, in bearing, 1965 only

3шт.

7

66584D

FITTING

3/16 drive type str lub, in bearing, 1966 and since

3шт.

8

625050R11

BEARING

ASSY, main drive shaft, 1965 only

3шт.

8

481812R11

BEARING ASSY

ASSY, main drive shaft, 1966 and since

3шт.

21632R1

COTTER PIN

PIN, 3/16 x 1 C-Z self-opening cot.

3шт.

21761R1

WASHER

29/32 x 1-1/2 x 16 ga C-Z

1шт.

9

269182R1

SPRING

clutch

1шт.

21761R1

WASHER

29/32 x 1-1/2 x 16 ga C-Z

1шт.

10

PO23196

KEY

clutch

2шт.

11

472334R2

NO LONGER SERVICED

DRIVER, clutch

1шт.

12

514547R11

COLLAR CLAMP

COLLAR ASSY, control

1шт.

NLS

NO LONGER SERVICED

SCREW, 5/16-18 x 1/2 C-Z sq-hd cup-pt set

1шт.

13

472332R1

DRIVE

CAM, clutch

1шт.

14

472331R1

ROD

CONTROL, clutch

1шт.

21628R1

PIN

1/8 x 3/4 C-Z self-opening cot.

3шт.

15

472333R1

BEARING

clutch

1шт.

479139R1

THRUST WASHER

clutch thrust

1шт.

16

66584D

FITTING

3/16 drive type lub

2шт.

17

472335R2

DRIVE SPROCKET

SPROCKET, main drive, 18T, 16T, 13T

1шт.

21761R1

WASHER

29/32 x 1-1/2 x 16 ga C-Z

1шт.

21827R1

PIN, 1/4 x 1-1/4 C-Z light coiled spring

1шт.

18

472433R2

COUPLING

CONNECTOR, drive sprocket

1шт.

19

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 drive type str lub, drive sprocket connector and fertilizer drive sprocket

2шт.

20

472434R1

SPROCKET ASSY.

SPROCKET, fertilizer drive, 17T, 12T and 8T

1шт.

520037R1

PIN, quick attachable cot.

1шт.

21761R1

WASHER

29/32 x 1-1/2 x 16 ga C-Z

2шт.

21

472722R1

SPRING

wheel ratchet RH

2шт.

22

589937R1

WASHER

wear

5шт.

23

481810R1

WASHER

keyed

2шт.

24

484060R1

BUSHING

steel back bronzed

3шт.
