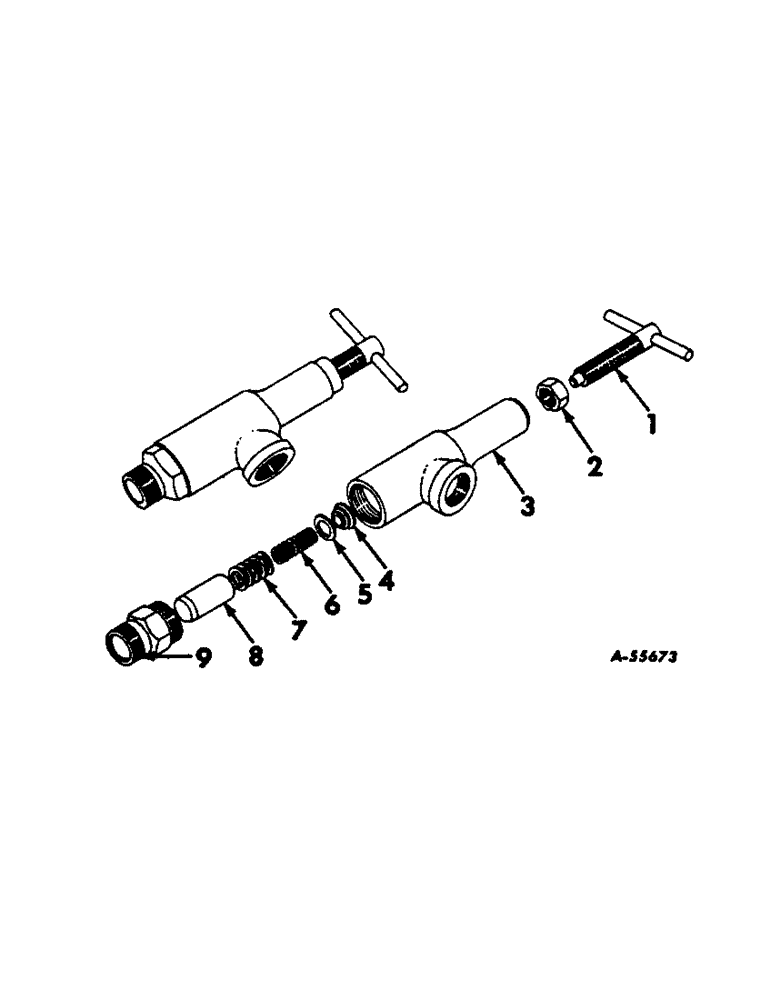

Запчасти Case IH 400 (K-29[A]) - PRESSURE RELIEF VALVE

526788R91

VALVE ASSY, pressure relief, see note

1шт.

Components furnished by Spraying Systems, 3201 Randolph St., Bellwood, Illinois

1шт.

1

5896SSASB

STEM ASSY, stainless and aluminum

1шт.

2

5898AL

NUT, aluminum lock

1шт.

3

6818AL

BODY, aluminum

1шт.

4

6545AL

RETAINER, gasket aluminum

1шт.

5

5899

GASKET, hycar

1шт.

6

6547SS

SPRING, stainless steel inside

1шт.

7

6546SS

SPRING, stainless steel outside

1шт.

8

6544AL

SEAT, aluminum guide

1шт.

9

6789AL

ADAPTER, aluminum inlet

1шт.
