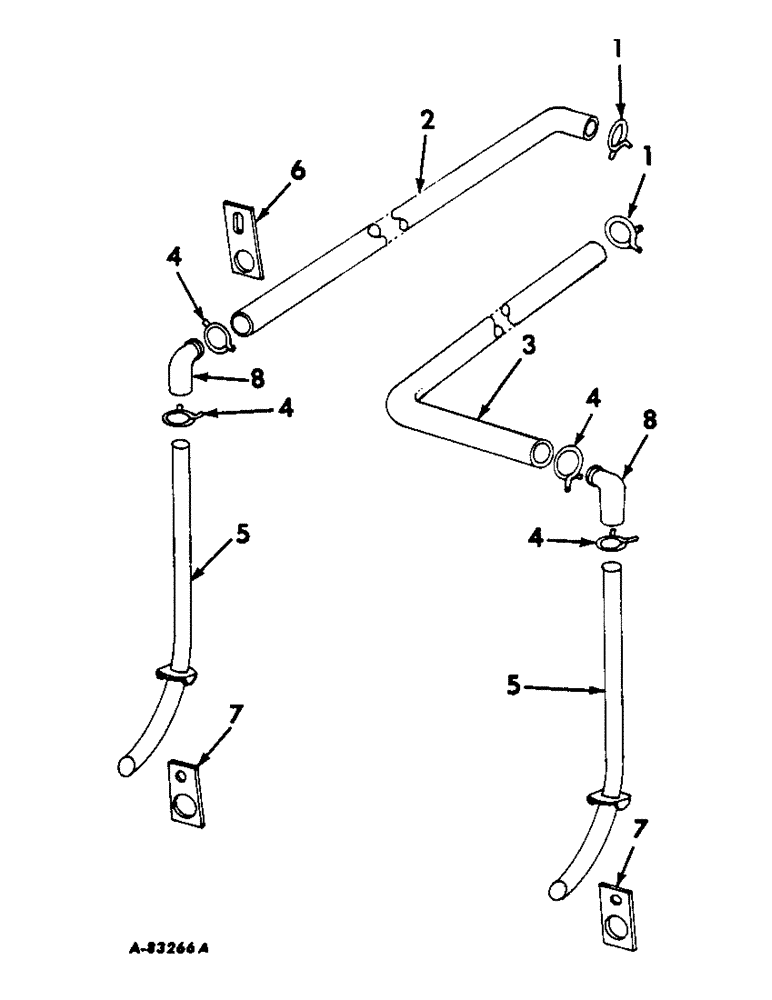

Запчасти Case IH 400 (K-25) - LIQUID FERTILIZER HOSES AND TUBES

1

626239R1

HOSE CLAMP,#17, 1 1/16", Spring

CLAMP, 5/8 in. plastic hose

4шт.

2

HOSE, valve outlet long, 5/8 x 54 in., order hose from 100 ft. roll marked 526604R1

1шт.

3

HOSE, valve outlet short, 5/8 x 28 in., order hose from 100 ft. roll marked 526604R1

1шт.

4

237585R1

HOSE CLAMP,#13, 13/16", Spring

CLAMP, tube

8шт.

5

464751R11

TUBE

ASSY

4шт.

6

479263R1

CLIP, hose retaining

2шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 C-Z hex-hd mach

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

7

464753R1

SUPPORT, tube

4шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8-16 x 1 C-Z hex-hd mach

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

8

476908R2

ELBOW, valve outlet hose

4шт.
