Запчасти Case IH 400 (K-22) - LIQUID FERTILIZER CONTROLS

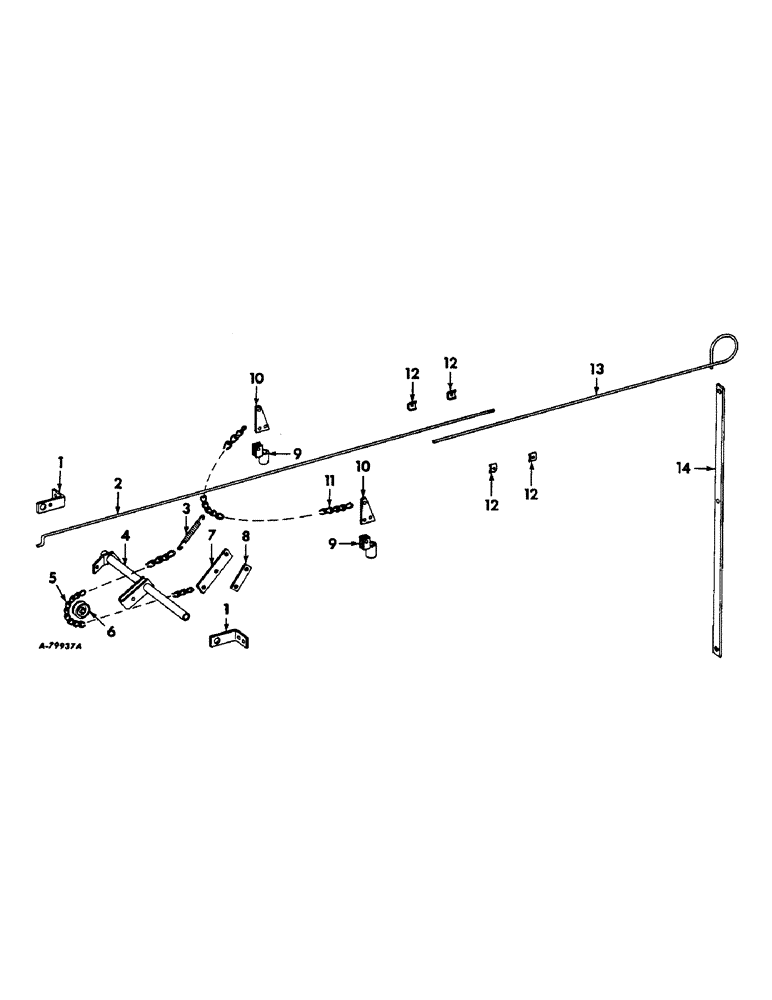

Схема запчастей Case IH 400 - (K-22) - LIQUID FERTILIZER CONTROLS
8
14
9
10
12
5
1
11
12
12
6
2
7
3
9
13
12
4
10
1

Артикул

Название

Примечание

Количество

1

474696R1

BRACKET, shut-off control

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8-16 x 1 C-Z sq-nk crg

4шт.

18781R1

BOLT,Hex, 3/8"-16 x 2", G2

3/8-16 x 2 C-Z hex-hd mach, requires 2 nuts

1шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

2

463097R1

ROD, control rear

1шт.

3

943045R1

SPRING

control chain

1шт.

4

474689R92

CONTROL ASSY, shut-off

1шт.

20328R1

COTTER PIN,3/16" x 1 1/2"

3/16" x 1 1/2"

2шт.

5

474697R1

CHAIN, control short

1шт.

12235R1

1/8" x 5/8" 1/8" x 5/8"

1шт.

6

J250M

PULLEY, chain

1шт.

19471R1

PIN, SPLIT (COTTER),1/4" x 1 3/4"

1шт.

7

474700R1

STRAP, pull chain

1шт.

8

474701R1

STRAP, pull chain tie

1шт.

18475R1

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 2

5/16-18 x 1-1/4 C-Z hex-hd dld mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

9

474694R91

PIVOT ASSY, pull chain

2шт.

10

474699R1

ARM, shut-off control

2шт.

Q3527

PIN, 5/16 x 11/16 std-hd

2шт.

12235R1

1/8" x 5/8" 1/8" x 5/8"

2шт.

11

478487R1

CHAIN, control long

1шт.

12235R1

1/8" x 5/8" 1/8" x 5/8"

2шт.

12

463095R1

CLAMP, control rod half

4шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

13

463093R1

ROD, control front

1шт.

14

474698R1

SUPPORT, control rod

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8-16 x 1-1/4 C-Z hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

1шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 1-3/4 C-Z hex-hd cap

1шт.

178372R1

WASHER

13/32 x 1-1/4 x 16 ga C-Z

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

Выбрано товаров: 37
