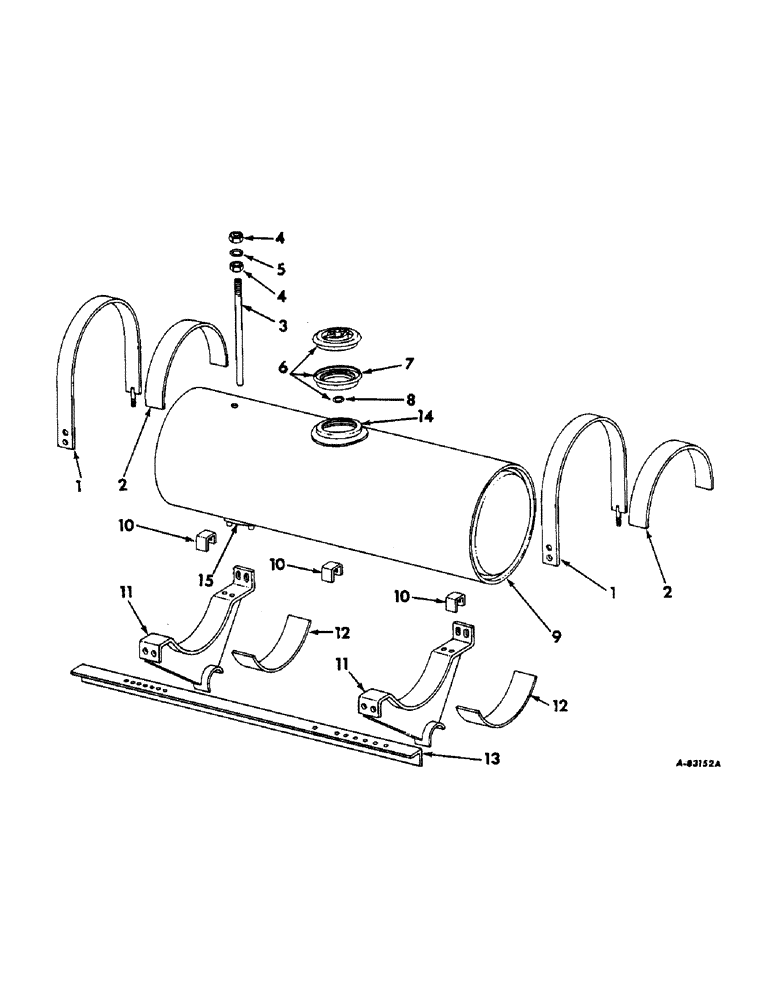

Запчасти Case IH 400 (K-21) - LIQUID FERTILIZER TANK AND SUPPORTS

1

479257R92

STRAP ASSY, clamp

4шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

2

478846R1

PAD, strap clamp

4шт.

3

474674R1

PIPE, tank vent

2шт.

4

474675R1

NUT, tank bent pipe lock

4шт.

5

350684R1

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

vent pipe

2шт.

6

474676R93

CAP

ASSY, filler

2шт.

7

474677R3

GASKET

filler cap

2шт.

8

470585R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

filler cap

2шт.

9

479265R91

TANK ASSY, 50 gal. round flat end, includes ref. nos. 14 and 15

2шт.

10

477575R2

CHANNEL

marker chain guide

6шт.

19059R1

PLOW BOLT,#3, 1/2" - 13 x 1 1/4", Gr 2

BOLT, 1/2 x 1-1/4 C-Z no. 3 plow

6шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

11

478844R92

SUPPORT ASSY, tank

4шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 C-Z sq-nk crg

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

12

474687R1

PAD, tank

4шт.

13

480479R1

ANGLE, lift rod LH

1шт.

13

480481R1

ANGLE, lift rod RH

1шт.

14

481802R1

NECK FILLER

NECK, tank filler, see note

2шт.

15

484740R1

HOUSING, valve

2шт.

484699R1

BOLT, 5/16-18 x 1-3/4 stainless stl hex-hd

6шт.

484700R1

NUT

5/16-18 stainless stl hex.

6шт.
