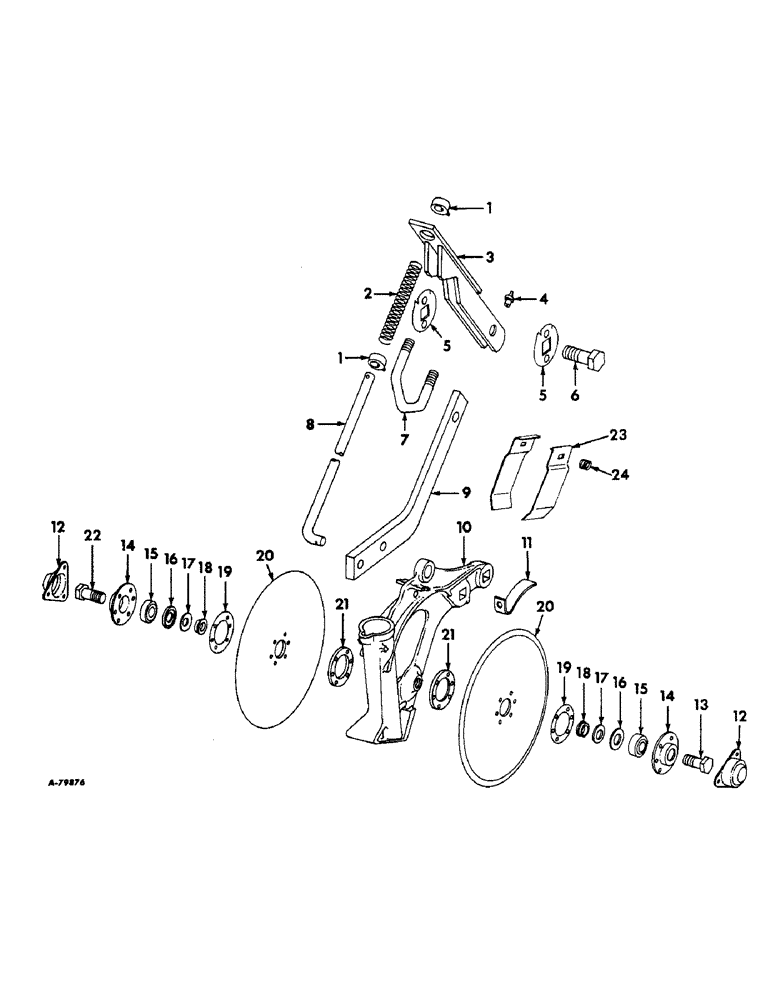

Запчасти Case IH 400 (K-15) - FERTILIZER DOUBLE DISK OPENER AND SCRAPER, FOR REAR-MOUNTED PLANTER UNITS

1

516595R11

COLLAR,16.67mm ID x 28.5mm OD x 19mm L

COLLAR W/SET SCREW, lift rod

8шт.

21803R1

SET SCREW,1/2" - 13 x 5/8", Steel

SCREW, 1/2-13 x 5/8 C-Z sq-hd cup-pt set

8шт.

2

26AS

SPRING

pressure rod

4шт.

3

472390R92

BRACKET ASSY, lift arm

4шт.

4

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 drive type str lub

4шт.

5

522532R1

RETAINER

WASHER, drawbar

8шт.

6

472396R1

BOLT,Hex, 3/4" - 10 x 2.24"

drawbar pivot

4шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4-10 C-Z hex. jam

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

7

484386R1

BOLT,5/8" - 11 x 6.1"

lift arm U

4шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 C-Z hex.

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

8

472397R1

ROD

lift

4шт.

21829R1

COTTER PIN,3/16" x 1 1/8"

3/16" x 1 1/8"

8шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

4шт.

9

472395R1

BAR, fertilizer draw

4шт.

20180R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 2

BOLT, 1/2-13 x 2 C-Z sq-nk crg

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

10

472388R2

BOOT

double disk fertilizer

4шт.

610784R1

SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL

PIN, quick attachable cot.

6шт.

11

472389R1

GUARD

stone

4шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

SCREW, 5/16-18 x 5/8 C-Z hex-hd cap

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

12

464483R1

CYLINDER END CAP

CAP, brg housing

8шт.

NLS

NO LONGER SERVICED

SCREW, 1/4-20 x 7/16 C-Z hex-hd cap

24шт.

13

464481R1

BOLT (SPREADER),Hex, 5/8" - 11 x 1.44", LH

BOLT, disk brg LH thread

4шт.

14

602989R1

FLANGE,1.41" ID x 3.25" OD x 0.63"

HOUSING, disk brg

8шт.

180015

SCREW, 1/4-20 x 7/16 C-Z hex-hd cap

24шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

24шт.

15

465004R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

ball

8шт.

16

602994R1

FLANGE

8шт.

17

464628R1

SEAL

dirt

8шт.

18

602988R1

SPACER

seal retainer

8шт.

19

602992R1

GASKET

disk

8шт.

20

524676R1

DISK HARROW

DISK, opener

8шт.

21

464480R1

WASHER

WASHER, reinforcing

8шт.

22

464482R1

BOLT (SPREADER),Hex, 5/8" - 11 x 1.44", RH

BOLT, disk brg RH thread

4шт.

23

601291R1

SCRAPER

outside

8шт.

15219R1

BOLT, 5/16-18 x 4-1/4 sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

8шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

4шт.

24

NA62774

SPRING

outside scraper

4шт.
