Артикул
Название
Примечание
Количество

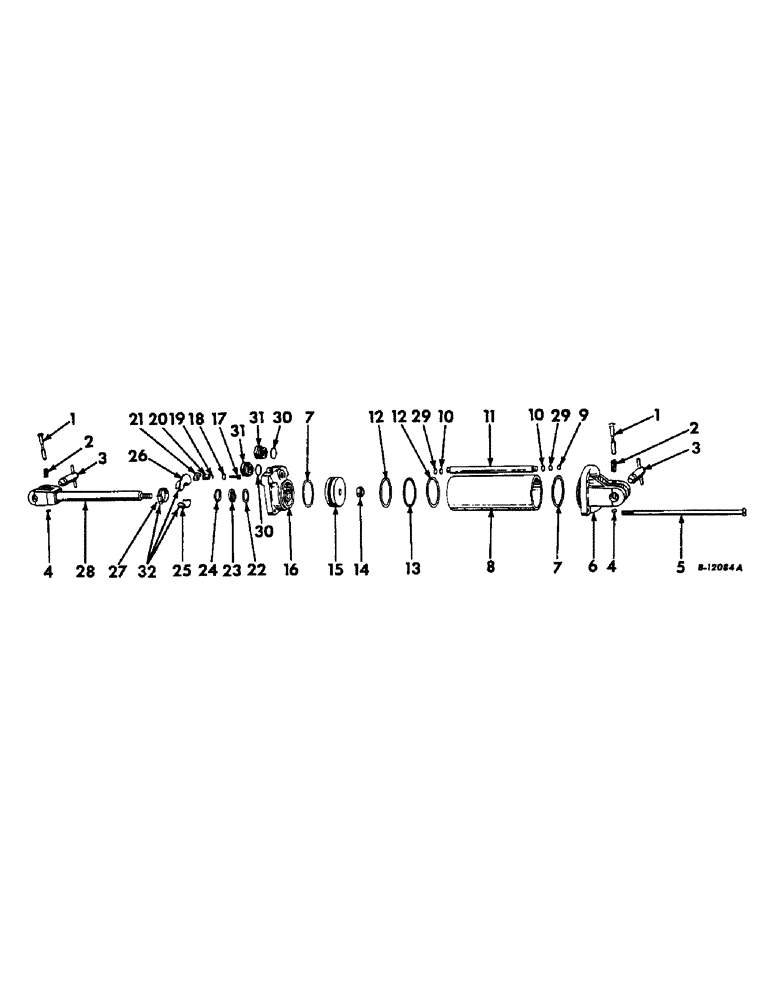

371292R92
HYDRAULIC CYLINDER
CYLINDER ASSY, hydraulic 3-1/2 x 8
1шт.
1
352369R2
PIN
lock
2шт.
103373
COTTER PIN,3/32" x 3/4"
Pin, Split (Cotter), 3/32" x 3/4"
2шт.
2
352370R1
SPRING
lock pin
2шт.
3
352231R11
PIN
ASSY, cylinder pivot
2шт.
4
354837R1
WASHER
lock pin
2шт.
5
361004R1
BOLT,Hex, 1/2" - 20 x 13 7/16"
cylinder tie
4шт.
25-118
NUT,1/2"-20, G5
1/2-20 hex.
4шт.
6
371298R3
HEAD
cylinder, bottom end
1шт.
7
354836R1
O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro
3-1/4 x 3-1/2 x 1/8
2шт.
8
354051R1
BARREL,3.5035" ID, .429" OD, 10.26" Length
TUBE, cylinder
1шт.
9
371218R2
BACK-UP RING,0.594" ID x 0.36" Width
o-ring back up, used only w/two piece return tube
2шт.
10
(Not used in this application)
1шт.
11
371211R2
TUBE,0.573" ID, 0.748" OD, 10.963" Length
cylinder return
1шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
1шт.
12
375936R1
BACK-UP RING
WASHER, piston head back up
2шт.
13
378827R1
O-RING,0.21" Thk x 3.1" ID, -338, Cl 6, 90 Duro
3-1/8 x 3-1/2 x 3/16
1шт.
14
385020R1
NUT
3/4-16 piston rod rock
1шт.
15
361003R1
HEAD
piston
1шт.
16
371297R11
HEAD (CYLINDER)
HAD W/O-RINGS & PLUGS
1шт.
17
361006R11
VALVE
ASSY, limit stop
1шт.
18
350429R1
O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro
5/8 x 13/16 x 3/32
1шт.
19
360599R1
O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro
3/16 x 5/16 x 1/16
1шт.
20
361007R11
RETAINER
ASSY, only serviceable item is o-ring retainer, 361008R1
1шт.
21
361009R1
PLATE
limit stop valve retainer
1шт.
179792
BOLT,Hex, 1/4" - 20 x 9/16"
SCREW, 1/4 x 9/16 hex-hd cap
2шт.
22
354047R1
O-RING,0.21" Thk x 1.15" ID, Cl 6
O-RING, 1-1/8 x 1-9/16 x 7/32
1шт.
23
354048R1
WASHER,1.06" ID x 1.5" OD x 0.25" Thk
SEAL, piston rod dust
1шт.
24
354049R1
RETAINER
piston rod dust seal
1шт.
25
360372R1
COLLAR
stroke limit plain half
1шт.
26
361010R1
COLLAR
stroke limit flanged half
1шт.
27
361085R91
CLAMP
ASSY, stroke limit collar
1шт.
28
361005R12
NO LONGER SERVICED
YOKE ASSY, piston
1шт.
29
377952R1
O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro
9/16 x 3/4 x 3/32
2шт.
30
364885R1
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
3/4 x 15/16 x 3/32, cylinder head plug
2шт.
31
9410360
PLUG
cylinder head
2шт.
32
375426R91
COLLAR
ASSY, stroke limit
1шт.
392503
SCREW, thumb
1шт.
363138R92
SEAL KIT
PACKAGE, o-ring service, consists of (1) retainer 354049R1, (1) ring 350429R1, (1) ring 378827R1, (2) ring 377952R1, (1) ring 354047R1, (2) ring 354836R1, (1) ring 360599R1, (1) seal 354048R1, (2) washer 375936R1, (2) washer 371218R2
1шт.
Выбрано товаров: 39
