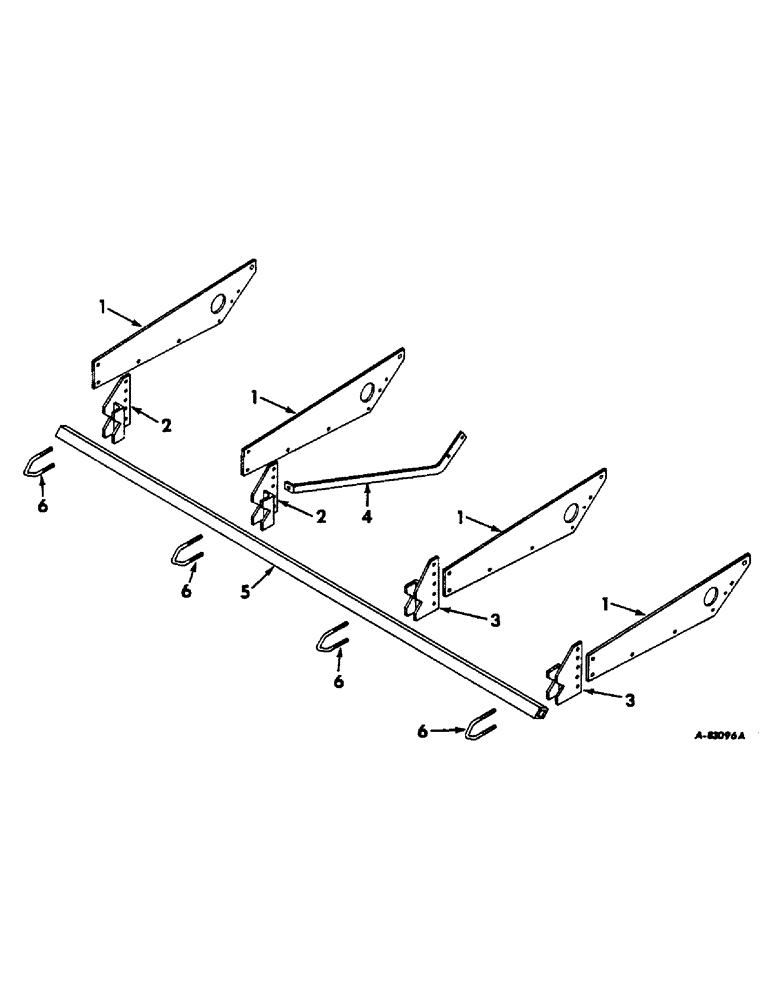

Запчасти Case IH 400 (K-07) - PLANTER ATTACHING UNIT

1

479870R1

PLATE, outer tool bar connector, Serial Range: 1965-1966

4шт.

1

484043R1

PLATE, outer tool bar connector, 1966 and since

4шт.

102639

NUT,5/8"-11, G5

4шт.

271556

WHEEL CYLINDER,Hex, 5/8" - 11 x 1 1/4", Gr 5

SCREW, 5/8-11 x 1-1/4 hex-hd cap

4шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

2

480985R91

PLATE ASSY, attaching LH

2шт.

102637

NUT,1/2"-13, G5

4шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

1шт.

NLS

NO LONGER SERVICED

1шт.

3

480986R91

PLATE ASSY, attaching RH

2шт.

102637

NUT,1/2"-13, G5

4шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

SCREW, 3/8-16 x 1-3/4 hex-hd cap

1шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

4

479882R1

BRACE, center support, Serial Range: 1965-1966

1шт.

4

484045R1

BRACE, center support, 1966 and since

1шт.

5

479881R1

TUBE, tool bar

1шт.

102635

NUT,3/8"-16, G5

8шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

6

479885R1

BOLT, toolbar connector U

4шт.

425-1012

NUT,3/4"-10, G5

3/4-10 hex.

8шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.
