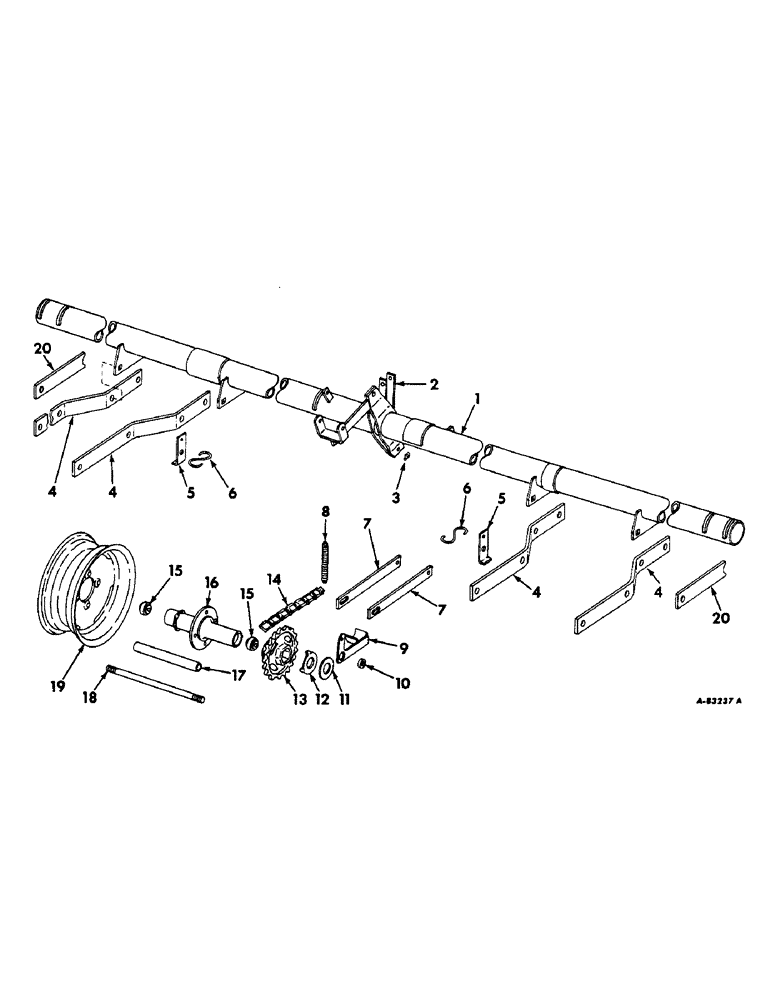

Запчасти Case IH 400 (K-06) - ADJUSTABLE WHEEL FRAME

1

479143R93

FRAME ASSY, adjustable wheel, 28 to 40 in. row spacing

1шт.

21636R1

PIN, 1/4 x 1-1/2 C-Z self-opening cot.

2шт.

2

472275R1

BEARING

cylinder bracket

1шт.

3

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 NF str lub, cylinder bracker arm

2шт.

4

479138R1

BRACKET, wheel arm

4шт.

18719R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 2

BOLT, 5/8 x 1-3/4 C-Z crg-hd

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

5

473562R1

ANCHOR, spring, dry

2шт.

6

474374R1

HOOK

S-HOOK, dry

2шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2-13 x 1-1/4 C-Z hex-hd mach

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

7

472299R1

LINK

transport

2шт.

21805R1

PIN

5/8 x 2-1/8 C-Z std-hd

2шт.

520175R1

CLIP

PIN, quick attachable cot.

2шт.

464623R1

WASHER

21/38 x 1-1/2 x 11 ga C-Z

2шт.

8

2072A

VALVE SPRING

SPRING, chain tightener, dry

2шт.

21633R1

PIN, 3/16 x 1-1/4 C-Z self-opening cot.

2шт.

9

472293R91

LEVER

ARM ASSY, drive chain tightener LH, dry

1шт.

9

472294R91

LEVER

ARM ASSY, drive chain tightener RH, dry

1шт.

10

472297R1

WASHER

BUSHING, chain tightener

2шт.

11

472298R2

WASHER

retaining

2шт.

12

479136R1

WASHER

sprocket wear, dry

2шт.

13

472279R1

SPROCKET ASSY.

SPROCKET, wheel drive, 16T, dry

2шт.

14

CHAIN, main wheel drive, dry, use 55 links of 50H steel chain from 10 ft. roll marked CS-50H

1шт.

15

666624R91

BALL BEARING,16.26mm ID x 40mm OD x 18mm W

wheel axle ball

4шт.

16

472278R2

HUB CAP

HUB, wheel

2шт.

17

464435R1

SPACER

wheel axle

2шт.

18

472280R2

ROD

AXLE, wheel

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 C-Z hex.

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga C-Z

2шт.

19

463036R1

WHEEL (STEERING)

WHEEL ASSY, planter drive, 14 x 5J rim for 7.50 x 14 or 8.00 x 14 tires

2шт.

19

455169R92

WHEEL

ASSY, planter drive, 15 x 4-1/2 rim, for 6.70 x 15 tires

2шт.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

wheel

8шт.

20

481819R1

BAR, wheel rail brace

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

2шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 1-3/4 C-Z hex-hd cap

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.
