Запчасти Case IH 4-410 (AG-8) - RUBBER HOSES / PRODUCT GRAPHICS

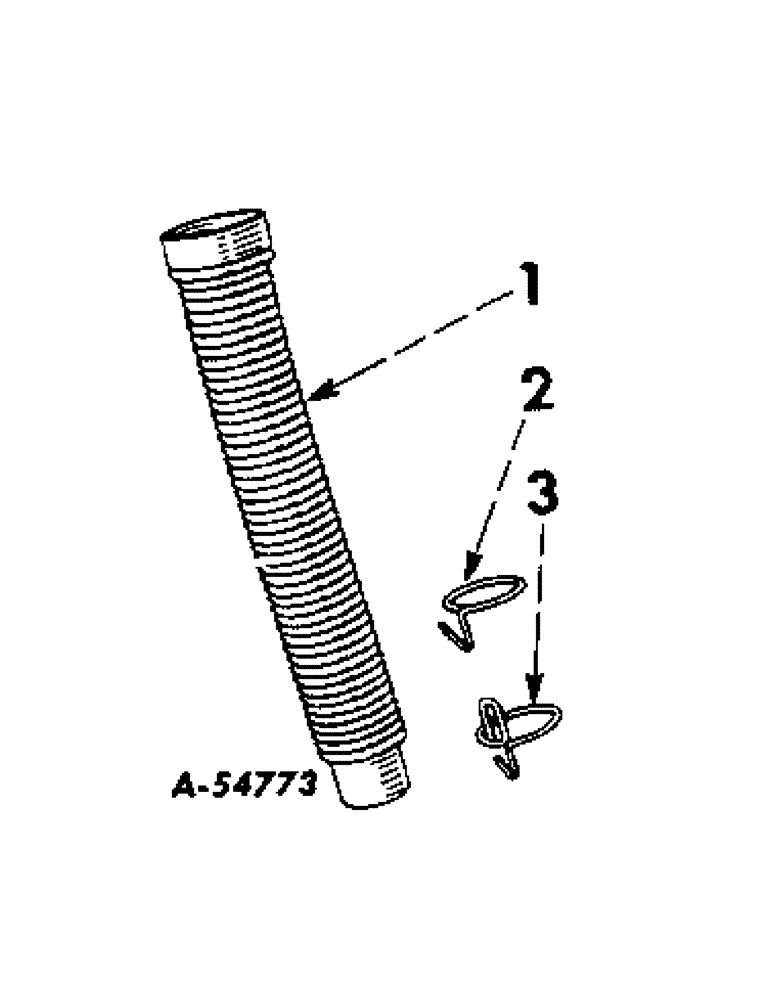

Схема запчастей Case IH 4-410 - (AG-8) - RUBBER HOSES / PRODUCT GRAPHICS
2
3
1

Артикул

Название

Примечание

Количество

1

526271R92

HOSE W/CLIP, rubber, 42 corrugations

1шт.

860200R1

HOSE CLAMP,#36, 2 1/4", Spring

CLAMP, hose upper

1шт.

2

Not used in this application

1шт.

3

526269R1

FASTENER

CLIP, retaining

1шт.

19505R1

BOLT,1/4" - 20 x 1", Class 2

1/4 x 1 in. cd-pltd step

1шт.

19250R1

NUT, 1/4 in. cd-pltd

1шт.

625533R1

WASHER

9/32 x 1 in. x 18 ga cd-pltd

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

2752215R1

IH, opposite the fertilizer feed spout and 3 in. below the top opening

1шт.

Выбрано товаров: 9
