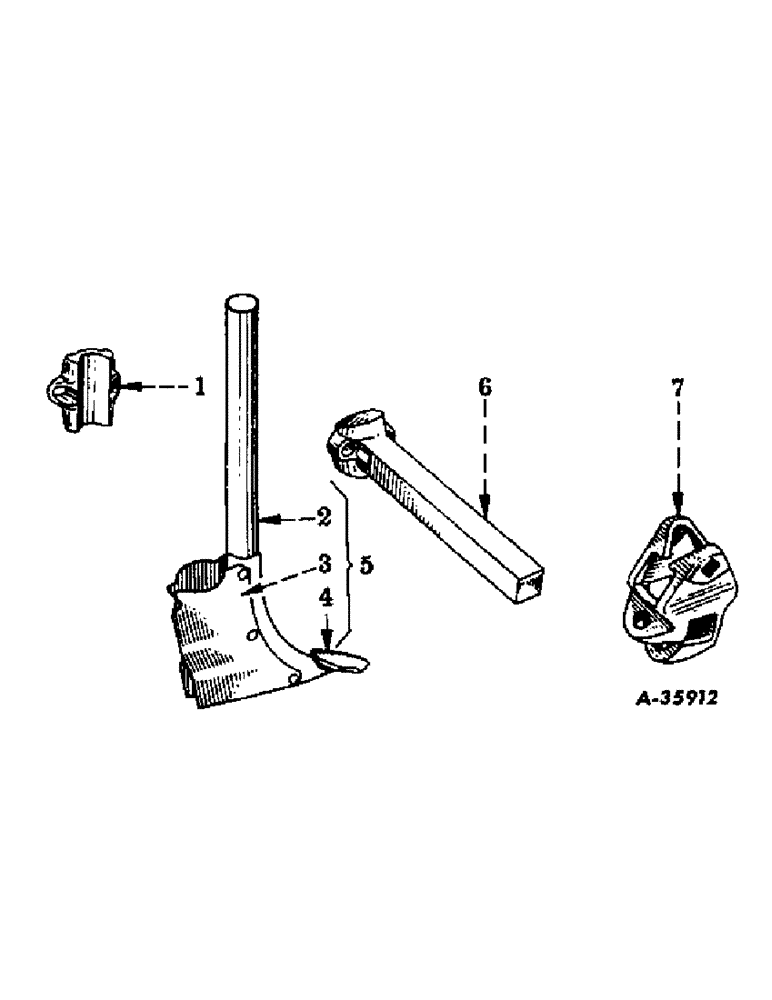

Запчасти Case IH 34-207 (Q-9) - DEEP APPLICATOR, FOR 1-3/8 IN. SQUARE TOOL BAR / PRODUCT GRAPHIC

1

1779BB

CLAMP

CAP, extension

1шт.

29882B

BOLT, 1/2 x 2-3/4 in. sq-hd mach, heat-treated

2шт.

NUT, 1/2 in.

2шт.

2

514296R91

STANDARD, fertilizer spout

1шт.

3

514663R91

CHUTE (DOWNWARD)

SPOUT

1шт.

106918

RIVET

5/16 x 1-1/4 in. truss-hd

3шт.

4

PO26869

SHOVEL

POINT, diamond

1шт.

RIVET, 1/4 x 1 in. csk-hd

1шт.

RIVET, 1/4 x 1-1/4 in. csk-hd

1шт.

5

STANDARD W/POINT AND SPOUT

1шт.

6

29603BA

CLAMP

EXTENSION, tool bar, 1-1/4 in. sq, 10-3/4 in. long, for 1-1/4 in. dia, standard

1шт.

7

518958R2

CLAMP

extension

1шт.

BOLT, 5/8 x 3 in. sq-hd mach

1шт.

BOLT, 5/8 x 3 in. crg

1шт.

2752215R1

IH, opposite the fertilizer feed spout and 3 in. below the top opening

1шт.
