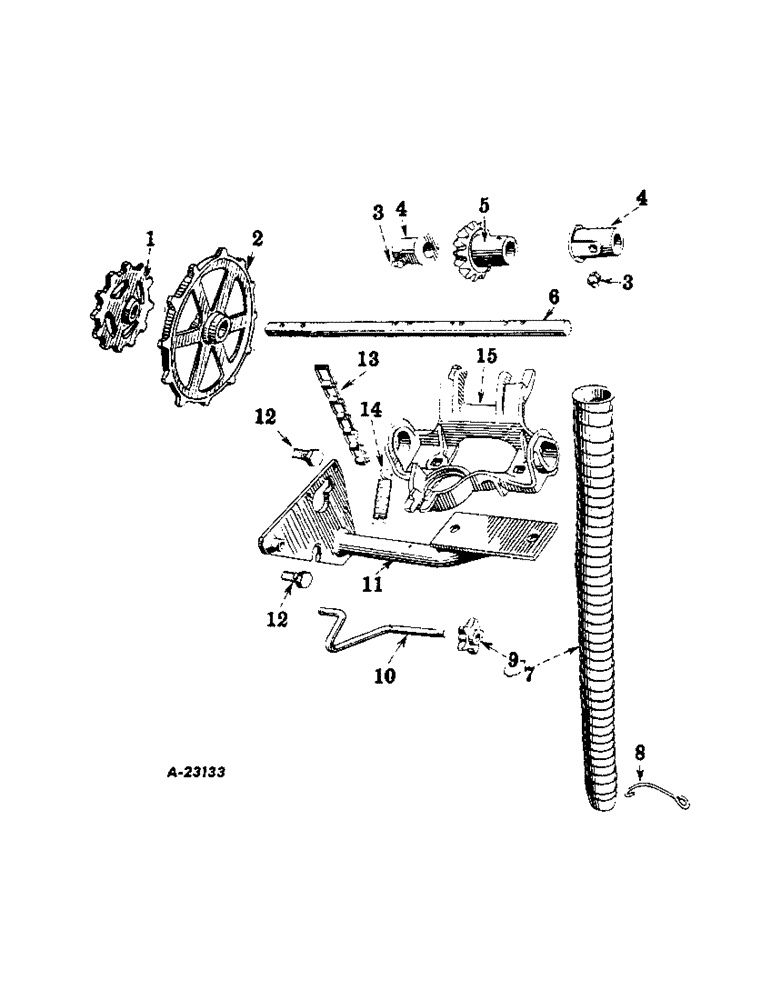

Запчасти Case IH 2CK-200 (M-14) - HOPPER SUPPORT AND FERTILIZER TUBE

1

PO2639BX

SPROCKET ASSY.

SPROCKET W/SET SCREW, driven, 12T

1шт.

2

514267R11

SPROCKET W/SET SCREW, driven, 24T

1шт.

PIN, 1/8 x 5/8 in. self-opening cotter

1шт.

Q3514

HEADED PIN,1/4" x 1 9/16"

PIN, 1/4 x 1-9/16 in. dld-std-hd

1шт.

102905

SET SCREW,Sq Hd, 7/16"-14 x 3/4"

SCREW, 7/16 x 3/4 in. cup-pt sq-hd set

1шт.

3

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8 in. 65 degree elbow lubrication

1шт.

4

PO1818

BUSHING

BEARING, feed shaft

1шт.

5

513998R1

PINION

hopper drive, 13T

1шт.

PIN, 1/8 x 5/8 in. self-opening cotter

1шт.

Q3514

HEADED PIN,1/4" x 1 9/16"

PIN, 1/4 x 1-9/16 in. dld-std-hd

1шт.

6

515018R2

SHAFT, feed, Serial Range: 1955-1956

1шт.

6

523666R1

SHAFT, feed, 1957 and since

1шт.

PIN, 1/4 x 1-1/4 in. self-opening cotter

2шт.

WASHER, 25/32 x 1-1/4 in. x 16 ga

2шт.

7

PO28479A

TUBE,1.437" ID x 1.875" OD x 29" L

fertilizer, 29 in. long

1шт.

BOLT, 5/16 x 1 in. crg

1шт.

129-419

WING NUT,5/16"-18

NUT, 5/16 in. wing

1шт.

WASHER, 11/32 x 3/4 in. x 16 ga

1шт.

8

PO28475

BRACE

CONNECTION, fertilizer tube

1шт.

9

1573B

SPROCKET ASSY.

SPROCKET, idler, 5T

1шт.

10

512627R1

TIGHTENER, left chain

1шт.

10

512628R1

ROD

TIGHTENER, right chain

1шт.

PIN, 1/8 x 1 in. self-opening cotter

2шт.

PIN, 3/16 x 1 in. self-opening cotter

4шт.

11

514265R92

SUPPORT, left hopper

1шт.

11

514266R92

SUPPORT, right hopper

1шт.

PIN, 3/16 x 1-1/4 in. self-opening cotter

2шт.

12

PO25842A

BOLT

5/8 x 1-1/4 in. conical-hd cap

2шт.

12

512630R1

SCREW, 5/8 x 1-11/16 in. conical-hd cap

2шт.

13

CHAIN, fertilizer drive, use 44 no. 32 steel links from 10 ft. roll no. CS-32

1шт.

14

PO7

SPRING

chain tightener, 3/4 in. OD, 4-1/8 in. long, 47-1/2 coils

1шт.

15

513999R3

BRACKET

hopper

1шт.

BOLT, 1/2 x 1-1/4 in. crg

2шт.

WASHER, 1/2 in. lock

1шт.
