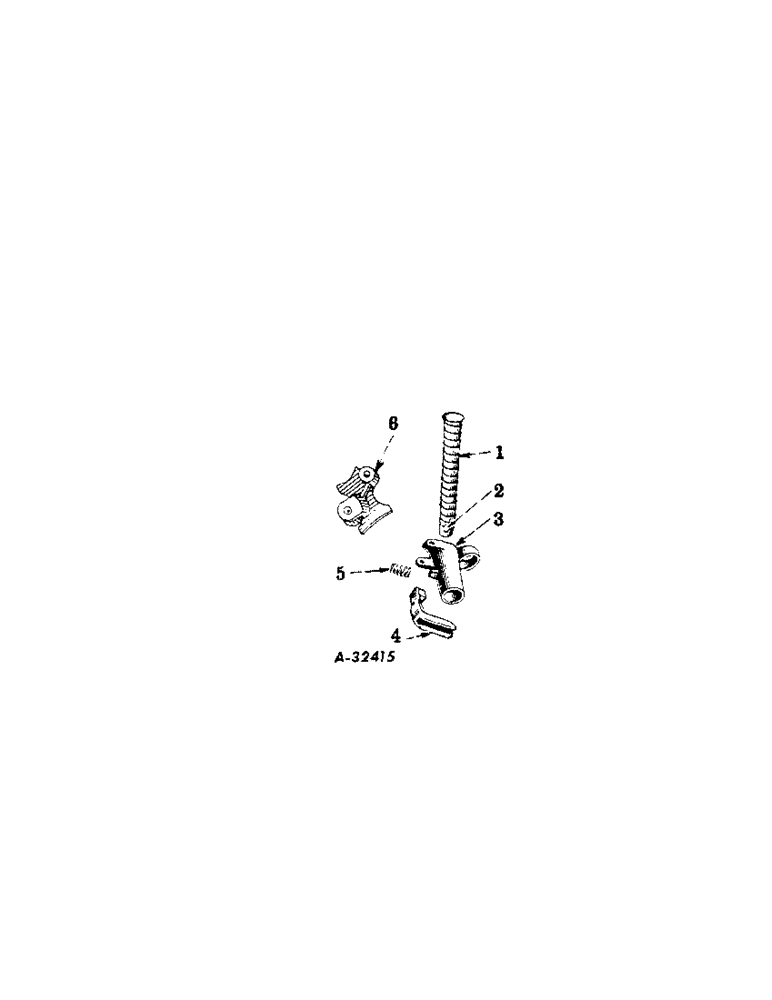

Запчасти Case IH 234CU-F250 (AB-09) - SINGLE-ROW BOOT AND RIBBON TUBE

1

622872R11

TUBE W/CLIP AND COTTER, ribbon

2шт.

PIN, 1/8 x 1-1/2 in. cotter

2шт.

RIVET, 1-1/4 lb. tinners

4шт.

2

620A

CLIP, tube

2шт.

RIVET, 2-1/2 lb. tinners

2шт.

3

1941AB

BOOT, fertilizer

2шт.

PIN, 1/8 x 3/4 in. cotter

2шт.

L418C

HEADED PIN,5/16" x 2 3/8"

PIN, 5/16 x 2-3/8 in. dld-std-hd

2шт.

4

3095A

DEFLECTOR, fertilizer boot

2шт.

BOLT W/NUT, 1/4 x 3/4 in. crg

2шт.

5

6631

SPRING

21/32 in. ID x 1-1/4 in. long, 6 coils

2шт.

6

622871R1

BRACKET, adapter

2шт.

PIN, 1/8 x 3/4 in. cotter

2шт.

L418C

HEADED PIN,5/16" x 2 3/8"

PIN, 5/16 x 2-3/8 in. dld-std-hd

2шт.

RIVET, 1/4 x 3-1/8 in. csk-hd

2шт.
