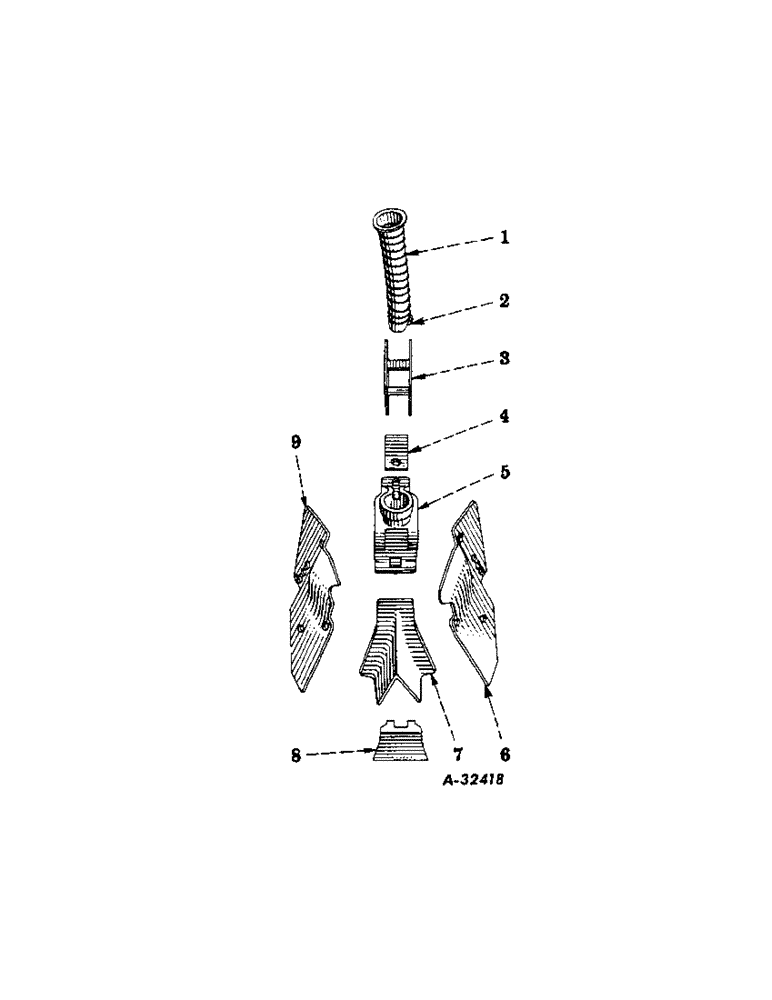

Запчасти Case IH 234CU-F250 (AB-09[A]) - SPLIT-ROW BOOT AND RIBBON TUBE

1

622872R11

TUBE W/CLIP AND COTTER, ribbon

2шт.

PIN, 1/8 x 1-1/2 in. cotter

2шт.

RIVET, 1-1/4 lb. tinners

4шт.

2

2620A

CLIP, tube

2шт.

RIVET, 2-1/2 lb. tinners

2шт.

3

623669R91

ADAPTER

2шт.

BOLT W/NUT, 3/8 x 2-1/4 in. mach

2шт.

PIN, 1/8 x 3/4 in. cotter

2шт.

Q1302

HEADED PIN,5/16" x 2 1/4"

PIN, 5/16 x 2-1/4 in. dld-std-hd

2шт.

WASHER, 3/8 in. lock

2шт.

4

623667R1

CLAMP, fertilizer boot

2шт.

BOLT, 5/16 x 1 in. mach

2шт.

NUT, 5/16 in.

2шт.

WASHER, 5/16 in. lock

2шт.

WASHER, 21/64 x 3/4 in. x 16 ga

2шт.

5

3216A

BOOT

fertilizer

2шт.

6

13515AA

PLATE, right side fertilizer boot

2шт.

BOLT W/NUT, 1/4 x 2-1/4 in. mach

2шт.

WASHER, 1/4 in. lock

2шт.

7

3217AA

FROG

fertilizer boot

2шт.

8

13517A

SHIELD, rear boot

2шт.

PIN, 1/8 x 1-3/4 in. cotter

2шт.

9

13516AA

PLATE, left side fertilizer boot

2шт.

RIVET, 1/4 x 2-7/8 in. csk-hd

2шт.

RIVET, 1/4 x 3-1/8 in. csk-hd

2шт.
