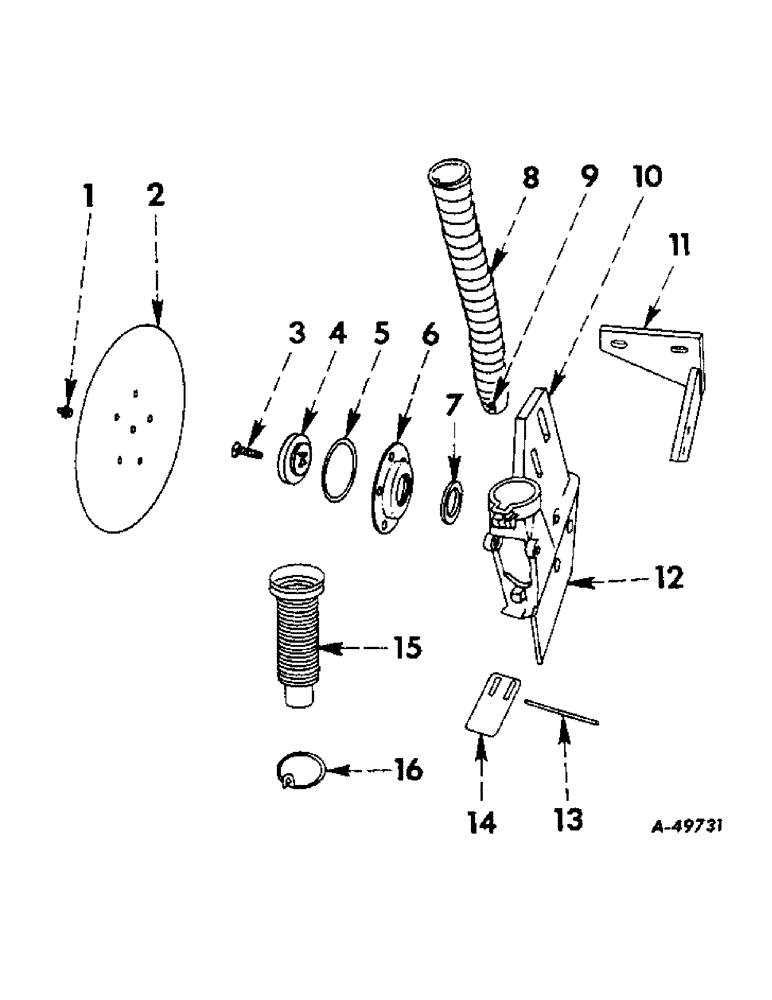

Запчасти Case IH 234CU-F250 (AB-07) - SINGLE DISK FERTILIZER APPLICATOR, NO. 16 COVERING BLADE

1

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , 1958 and since 1/8"-27 x .66 lg

1шт.

2

625788R1

DISC

BLADE, disk, 1958 and since

2шт.

3

625794R1

BOLT, 7/16 x 1-3/8 in. sq-hd, special, 1958 and since

2шт.

NUT, 7/16 in.

2шт.

WASHER, 7/16 in. lock

2шт.

4

N748

BLOCK, bearing, 1958 and since

2шт.

5

M2

WASHER

GASKET, 1958 and since

2шт.

6

W4227

HOUSING

HUB, disk, 1958 and since

2шт.

RIVET, 1/4 x 3/8 in. fl-hd

10шт.

7

M10

FELT

WASHER, felt, 1958 and since

2шт.

8

624655R11

TUBE W/CLIP, ribbon, 1958 and since

2шт.

PIN, 1/8 x 3-1/4 in. cotter

2шт.

9

2620A

CLIP, tube, 1958 and since

2шт.

RIVET, 2-1/2 in. tinners

2шт.

10

625777R1

DISC

BOOT, left fertilizer, 1958 and since

1шт.

10

625778R1

DISC

BOOT, right fertilizer, 1958 and since

1шт.

10

625799R91

BOOT

W/RUNNER, left, 1958 and since

1шт.

10

625800R91

CLUTCH ASSEMBLY

BOOT W/RUNNER, right, 1958 and since

1шт.

11

626383R91

BRACKET, left boot, 1958 and since

1шт.

11

626384R91

BRACKET, right boot

1шт.

BOLT W/NUT, 3/8 x 2-1/2 in. crg

4шт.

WASHER, 3/8 in. lock

4шт.

WASHER, 11/32 x 1-1/4 in. x 11 ga

4шт.

12

625780R1

BLADE

left runner, 1958 and since

1шт.

12

625781R1

BLADE

right runner, 1958 and since

1шт.

RIVET, 5/16 x 5/8 in. csk-hd 74 deg.

4шт.

13

625792R1

FASTENER, cover, 1958 and since

2шт.

14

625789R1

COVER

PLATE, cover, 1958 and since

2шт.

15

626439R91

HOSE

W/CLIP AND COTTER, neoprene, special, 1958 and since

2шт.

16

626441R1

CLIP

hose, special, 1958 and since

2шт.

PIN, 1/8 x 1-1/4 in. cotter

2шт.
