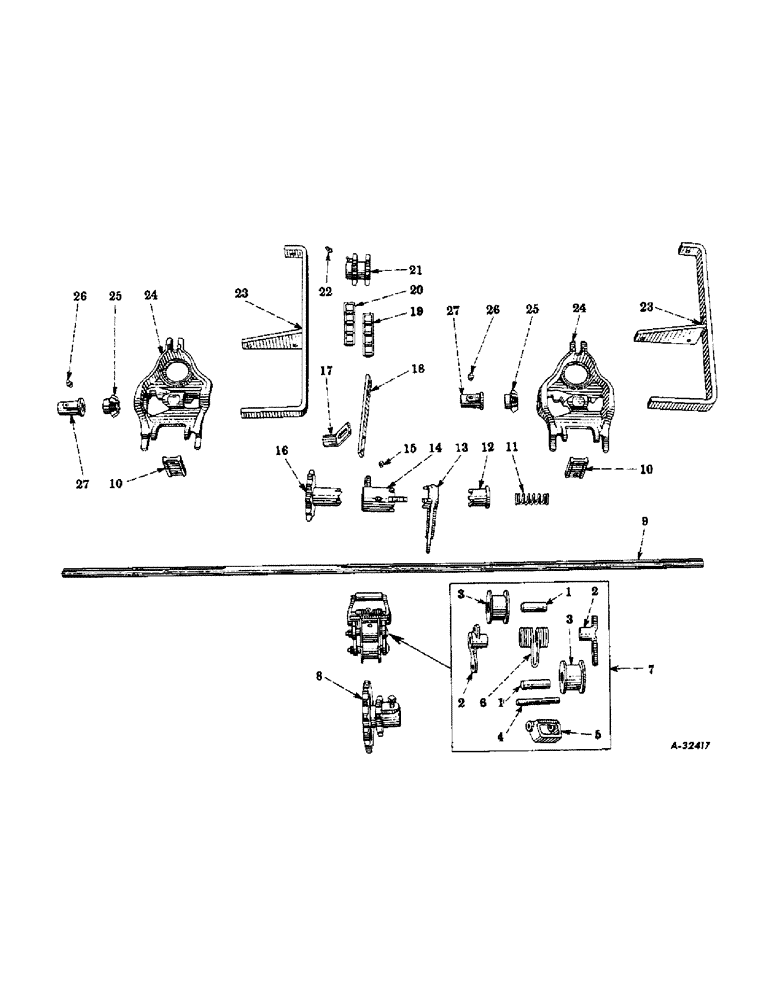

Запчасти Case IH 234CU-F250 (AB-06) - HOPPER DRIVE AND ATTACHING BRACKET
№
Артикул
Название
Примечание
Количество
1
622392R1
BUSHING
2шт.
2
622281R1
ARM, chain tightener
2шт.
3
P168W
PULLEY
2шт.
BOLT W/NUT, 5/16 x 3 in. crg
2шт.
4
P2016
PIN, 3/8 x 3-1/4 in. straight
1шт.
PIN, 1/8 x 3/4 in. cotter
1шт.
5
3122A
BRACKET, chain tightener
1шт.
BOLT W/NUT, 3/8 x 1-1/4 in. crg
1шт.
WASHER, 3/8 in. lock
1шт.
6
PA2080
SPRING
1шт.
7
623120R91
TIGHTENER ASSEMBLY, chain
1шт.
8
622857R11
SPROCKET W/SET SCREW, axle double
1шт.
SCREW, 1/2 x 3/4 in. cup-pt sq-hd set
1шт.
9
622861R1
SHAFT, feed
1шт.
PIN, 3/16 x 1-1/4 in. cotter
2шт.
WASHER, 25/32 x 1-1/4 in. x 18 ga
1шт.
10
621840R1
CLAMP, hopper bracket
2шт.
11
6653
SPRING, clutch feed shaft
1шт.
12
1916AA
CLUTCH, feed shaft drive
1шт.
13
620654R1
CAM, throw-out
1шт.
14
622860R11
BEARING W/LUBRICATION FITTING, clutch
1шт.
15
443567
LUBE NIPPLE,1/4" x .56 lg, Drive
FITTING, 1/4 in. straight lubrication
1шт.
16
622859R1
SPROCKET, clutch feed shaft
1шт.
17
622865R1
SLIDE, chain tightener
1шт.
BOLT, 3/8 x 1 in. crg
1шт.
NUT, 3/8 in.
1шт.
WASHER, 3/8 in. lock
1шт.
18
622862R1
BRACKET, clutch bearing support
1шт.
BOLT, 3/8 x 1 in. crg
1шт.
BOLT, 3/8 x 1-1/4 in. crg
1шт.
NUT, 3/8 in.
2шт.
WASHER, 3/8 in. lock
2шт.
19
CHAIN, axle to countershaft, use 57 No. 32 steel links from 10 ft roll No. CS-32
1шт.
20
CHAIN, countershaft to feed shaft, use 22 steel links from 10 ft roll No. CS-32
1шт.
21
622858R11
SPROCKET W/LUBRICATION FITTING, double countershaft
1шт.
WASHER, 1-1/32 x 1-3/8 in. x 16 ga
1шт.
22
443567
LUBE NIPPLE,1/4" x .56 lg, Drive
FITTING, 1/4 in. straight lubrication
1шт.
23
622866R91
FRAME, fertilizer mounting
2шт.
BOLT W/NUT, 3/8 x 2 in. mach
4шт.
WASHER, 3/8 in. lock
4шт.
24
3569AC
BRACKET, fertilizer hopper
2шт.
BOLT W/NUT, 3/8 x 2 in. mach
4шт.
WASHER, 3/8 in. lock
4шт.
25
3568AA
GEAR
PINION, 10T
2шт.
26
219-36
LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF
FITTING, 1/8 in. straight lubrication
2шт.
27
PO1818
BUSHING
BEARING
2шт.
