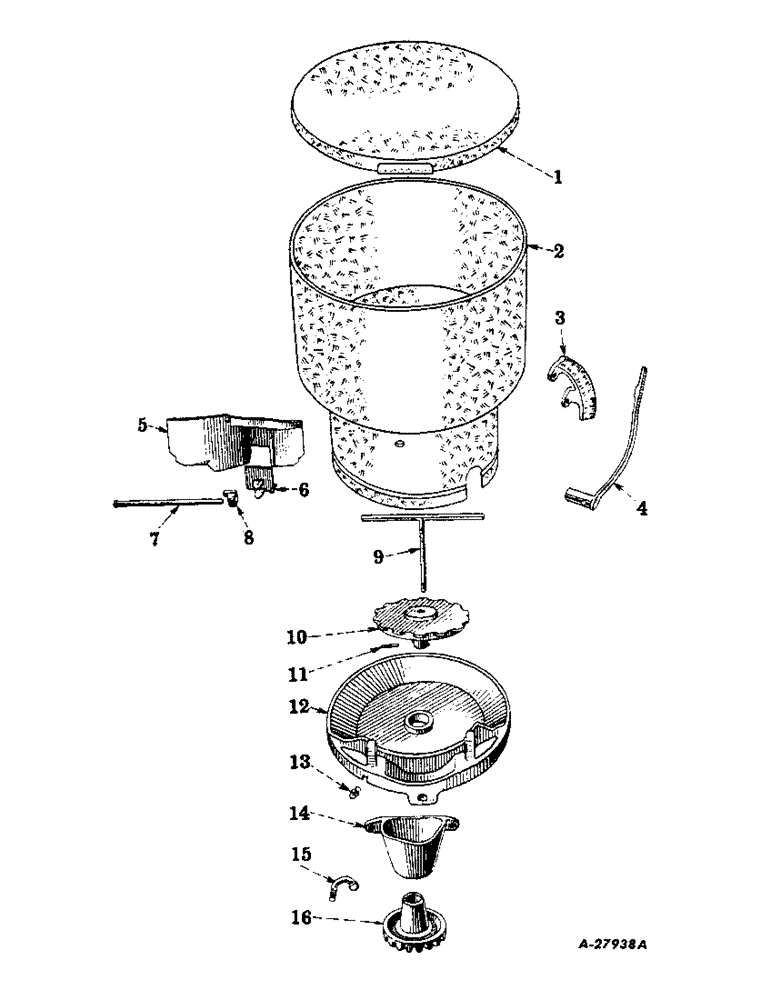

Запчасти Case IH 234CU-F250 (AB-04) - HOPPER

1

620122R1

LID, hopper

1шт.

1

620286R91

LID, hopper, small, Serial Range: 1942-1952

1шт.

2

43116A

HOPPER, galvanized, small, Serial Range: 1942-1952

1шт.

2

670720R91

HOPPER, galvanized

1шт.

NUT, 1/4 x 3/4 in. x 1/2 in. type 1-A spring

3шт.

120583

SCREW,Sl Rnd Hd, 1/4" - 20 x 5/8"

1/4 x 5/8 in. slt-rd-hd

3шт.

3

3564A

PLATE, indicator, small, Serial Range: 1942-1952

1шт.

3

620710R1

INDICATOR

PLATE, indicator

1шт.

NUT, 1/4 in. sq

2шт.

120583

SCREW,Sl Rnd Hd, 1/4" - 20 x 5/8"

1/4 x 5/8 in. slt-rd-hd

2шт.

WASHER, 1/4 in. lock

2шт.

4

43036A

LEVER W/SET SCREW, quantity, small, Serial Range: 1942-1952

1шт.

4

620717R11

SUPPORT

LEVER W/SET SCREW, quantity

1шт.

102892

SET SCREW

3/8 x 1/2 in. cup-pt sq-hd

1шт.

5

3571AA

PLATE

back

1шт.

BOLT, 5/16 x 3/4 in. hex-hd mach

1шт.

129-419

WING NUT,5/16"-18

NUT, 5/16 in. wing

1шт.

WASHER, 5/16 in. lock

1шт.

WASHER, 31/64 x 3/4 in. x 16 ga

1шт.

6

3563A

PORT

GATE

1шт.

7

33571A

ROD

gate

1шт.

8

3562AX

ARM

W/SET SCREW, gate

1шт.

88949

SET SCREW,Sq Hd, 5/16" - 18 x 5/8"

SCREW, 5/16 x 5/8 in. cup-pt sq-hd

1шт.

9

43037A

ROTATOR

AGITATOR

1шт.

10

622489R11

RIM

WHEEL W/PIN, feed, light, 1953 and since

1шт.

10

NB2554

WHEEL (STEERING)

WHEEL W/PIN, feed, minimum, 14 points, special, Serial Range: 1942-1952

1шт.

10

NC316

FURROW WHEEL

WHEEL W/PIN, feed, medium, 7 points, Serial Range: 1942-1952

1шт.

10

NC115X

WHEEL

W/PIN, feed, heavy, 7 points, special

1шт.

11

N62414

PIN,3.96mm OD x 28mm L

5/32 x 1-1/8 in. hdls

3шт.

12

3570ADX

BOTTOM

W/LUBRICATION FITTING, hopper

1шт.

PIN, 1/8 x 3/4 in. cotter

1шт.

Q817

PIN

5/16 x 6 in. dld-std-hd

1шт.

13

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 in. straight lubrication

1шт.

14

3572A

SPOUT, DISCHARGE

SPOUT

1шт.

NUT, No. 10 sq

2шт.

110502

SCREW,Slotted Rd Hd, #10-24 x 3/4"

No. 10-3/4 in. slt-rd-hd mach

2шт.

WASHER, No. 10 lock

2шт.

15

623088R1

HOOK

PIN, 3/8 x 2-7/8 in. cd-pltd, threaded

1шт.

126032

WING NUT,3/8"-16

NUT, 3/8 in. cd-pltd wing

1шт.

WASHER, 13/32 x 7/8 in. x 11 ga

1шт.

15

33573A

ROD

PIN, 3/8 x 2-7/8 in., threaded

1шт.

129-410

WING NUT,3/8"-16

3/8 in. wing

1шт.

WASHER, 13/32 x 7/8 in. x 11 ga

1шт.

16

3567A

GEAR

bevel, 18T

1шт.
